LMI-LMC Yarn Consumption / Yarn Length Meter

Made in Germany

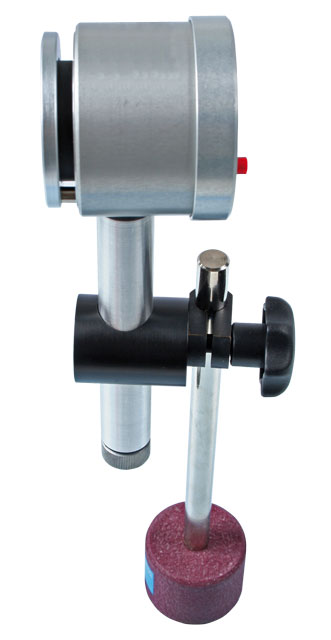

LMC LMI Yarn Length Meter
Click images to enlarge.
Range: 0-999,999 Inches or Centimeters

The Check-Line LM Series Digital Consumption Meters accurately measure the amount of yarn being fed from a textile machine feeder to a take-up device during one or more cycles or rotations of the machine cylinder.

LM units are ideal for comparing yarn consumption from feed to feed and machine to machine on circular and flat bed knitting machines, and for other textile processes where yarn length is to be accurately measured

Two LM types are offered:

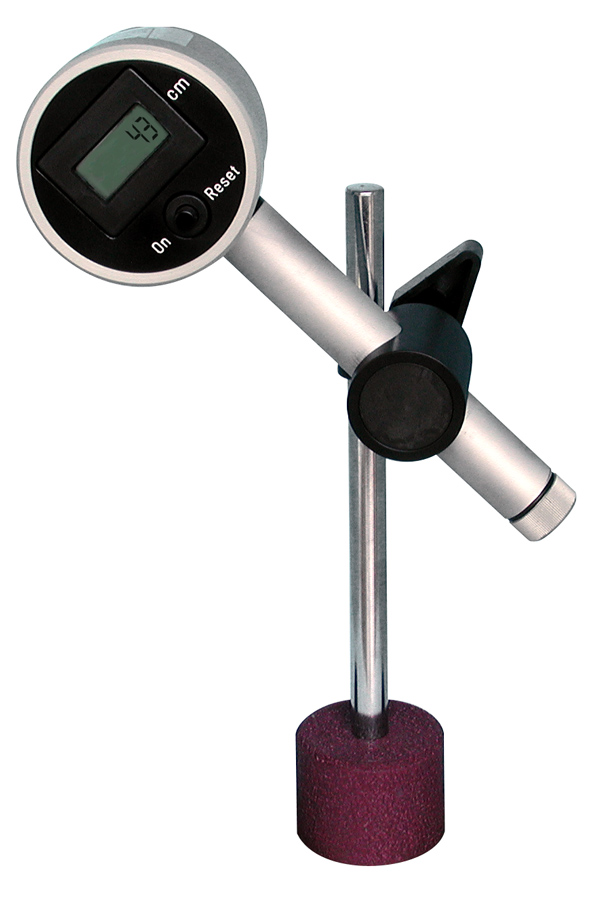

Models LMC and LMI manual type, where operator actuates and deactivates the measuring system after one or more operation cycles. (LMC is calibrated for centimeters; LMI is for inches). The consumption per cycle is then determined by dividing the total yarn consumption by the number of cycles or revolutions

Models LMC-S and LMI-S magnetic sensor type, where operator pre-sets number of cycles or revolutions (0-99) for the measuring period, eliminating the need to visually count the number of cycles. A small magnet is affixed to the rotating or moving part of the machine while the sensor is mounted on the frame. Each time the magnetic passes the sensor it actuates the instrument’s electronic counter.

Operation - LMI-S / LMC-S

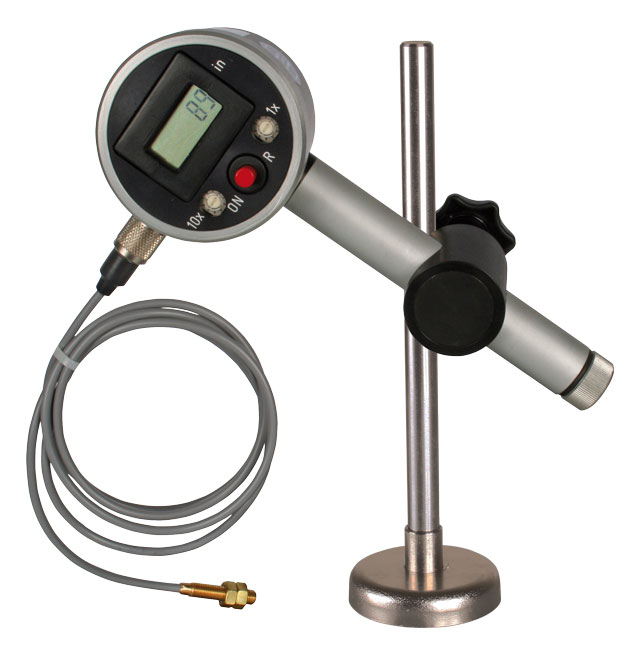

lmi-s controlsIn "Auto" mode a permanent magnet is mounted to a revolving part of the machine. The sensor supplies the start/stop signal. The predetermined number of revolutions (from 1- 99 rev. set on the rotary switches at the front side) are counted and the comulated yarn consumption is displayed.

In ''Basic'' mode the unit works without external sensor; Operator determines measuring time by pushing start - stop button.

Advantage of LM use:

  • Continued measuring of the yarn consumption of all knitting feeds ensures uniform stitch lengths and hence homogeneous fabric structure.
  • Predetermined fabric specifications can be reliably maintained and repeated.
  • The quantities of each type of yarn which are required for producing particular fabrics can be simply and accurately calculated.
  • The use of LM ensures the same fabric quality, respectively structures can be produced on different machines in the same quality.

Features

  • Magnetic mounting base and universal tube clamp for quick and easy setup
  • Precision, ball-bearing-mounted, low-inertia measuring wheel is rubber coated to eliminate yarn slippage
  • Can be used on yarns/fibers operating at line speeds up to 1500 m/min
  • Surface-mount electronics and a rugged, metal housing provide trouble-free operation in tough production environments.
  • Powered by two AAA batteries (included)

Specifications

Range0 - 999,999 Inches (or cm)
Accuracy +/- 0.2% of displayed value, +/- 1 digit
Resolution1 Inch (or 1 cm)
DisplayLCD, 8mm high
Measuring Wheel Access4mm wide x 270
Operating Temperature50 to 120 °F (10 to 45 °C)
Max Line Speed1500 m/min (4921 ft/min)
Pre-settable Cycle Capacity0 - 99 (LMI-S or LMI-C models only)
Warranty1 year

Complete Kit

LMI/LMC: Length meter with 2 batteries, magnetic base, Certificate of Compliance, operating instruction

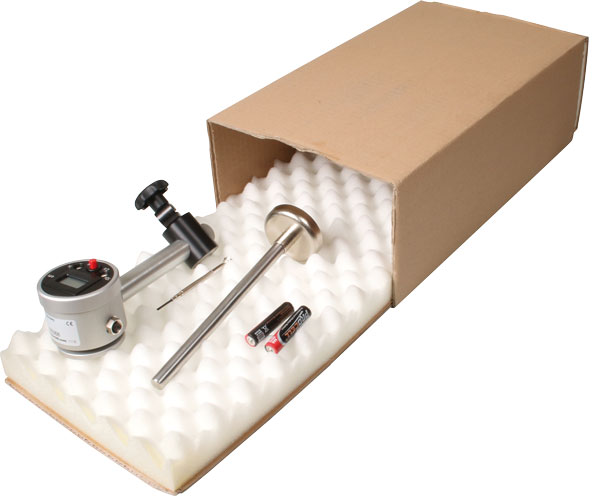

LMI-S / LMC-S: Length meter with 2 batteries, magnetic base, sensor with 1 m cable, magnet, Certificate of Compliance, operating instruction

Downloads

Buy Now

Item Description Price
LMI Yarn Length Meter, measures INCHES
$895.00
LMC Yarn Length Meter, measures CENTIMETERS
$895.00
LMI Yarn Length Meter, measures INCHES with Magnetic Sensor
$995.00
LMC Yarn Length Meter, measures CENTIMETERS with Magnetic Sensor
$995.00
