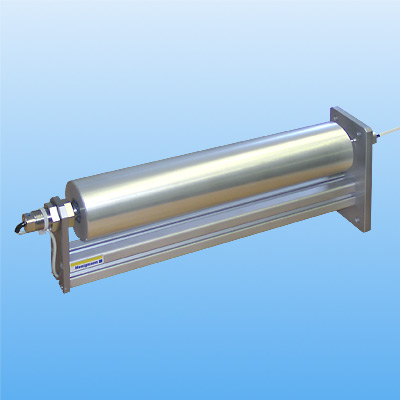

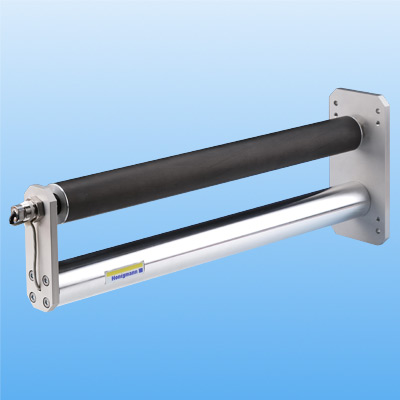

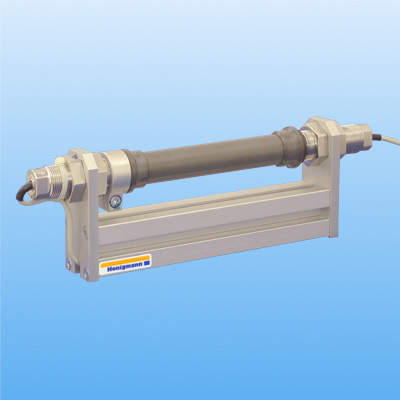

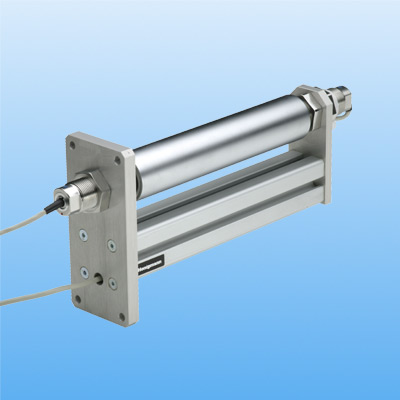

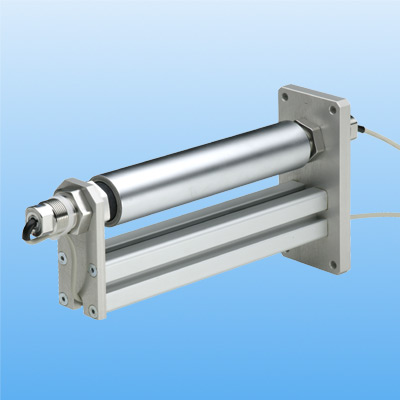

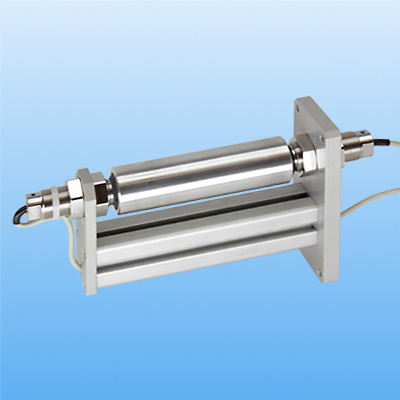

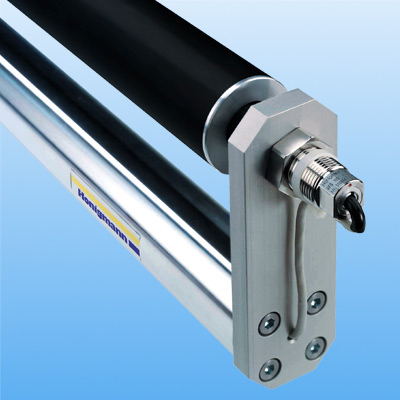

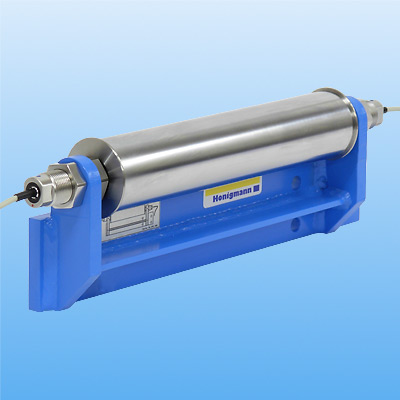

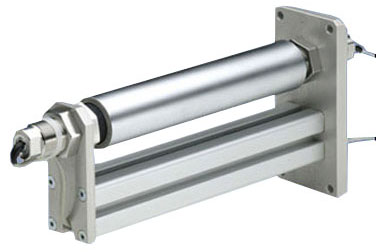

WTM-1R Web Tension Module 1 Roller Design

Made in Germany
WTM-1R Web Tension Module 1 Roller Design
Click images to enlarge.


  • Based on 2 RFS Tension Sensors
  • Customer specified roll material
  • Labyrinth seals / V-sealing rings
  • Customer specified roll dimensions
  • Easy-running self-aligning bearings in non-locating and locating bearing position
  • Pre-assembled, ready to be installed as measuring module

Tension Ranges

ModelRangeRange g/Kg (lbs)
WTM-1R-2000-2 N0-200 g (0.00-0.44 lbs)
WTM-1R-4000-4 N0-400 g (0.00-0.88 lbs)
WTM-1R-1K0-10 N0-1 Kg (0.00-2.20 lbs)
WTM-1R-2K0-20 N0-2 Kg (0.00-4.40 lbs)
WTM-1R-4K0-40 N0-4 Kg (0.00-8.80lbs)
WTM-1R-10K0-100 N0-10 Kg (0.00-22.0 lbs)
WTM-1R-20K0-200 N0-20 Kg (0.00-44.0 lbs)
WTM-1R-40K0-400 N0-40 Kg (0.00-88.0 lbs)
WTM-1R-100K0-1000 N0-100 Kg (0.00-220.0 lbs)
WTM-1R-200K0-2000 N0-200 Kg (0.00-440.0 lbs)
