TIMH Running Line Tensiometer / Cable Tension Meter / Cable Tension Sensor

TIMH Running Line Tensiometer built with dockside, marine, offshore, towage and salvage applications in mind.
Click images to enlarge.
MTIMH and TIMH are Running Line Tensiometers (tension sensors) for dockside, marine, offshore, towage and salvage applications. It is particularly useful where there is no anchor or dead end on the line to rig a Radiolink or Loadlink digital dynamometer to measure tension force at speeds up to 20m/min or 65ft/min.

The MTIMH/TIMH is fabricated from corrosion resistant stainless steel featuring a five (5) sheave arrangement keeping the cable under tight control as it weaves its way thru the sheaves. This greatly enhances accuracy and repeatability. These sheaves feature maintenance-free bearings. The sensor's load pin housing is rated at IP67 (Nema 6) making it suitable for use in the harshest environments.

Two versions of the TIMH are available:
- Long range 2.4GHz version providing an industry-leading wireless range of 700m / 2300ft to SP's SW-HHP handheld or software options.
- Bluetooth output for connection any device running our free HHP app available for iOS or Android at ranges up to 100m or 328ft.

"T" models feature cabled output of tension "TR" models feature wireless output of tension "TRD" models feature wireless output of both tension and payout out/in (length)

We can also provide custom-engineered solutions for your specific application.

Available as a wireless or cable connected system utilizing our HHP range of handheld displays or SW-MWLC software, this impressive Running Line Dynamometer or RLTM is available to ship to anywhere in the world within days.

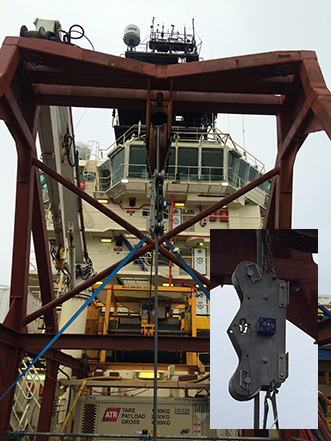

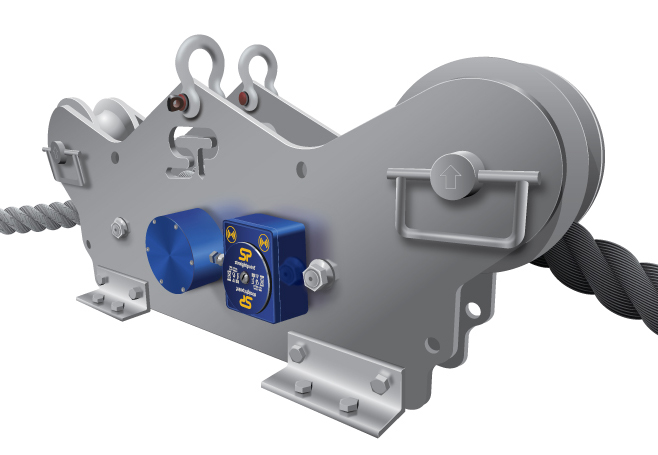

TIMH Running Line Tensiometer

Features

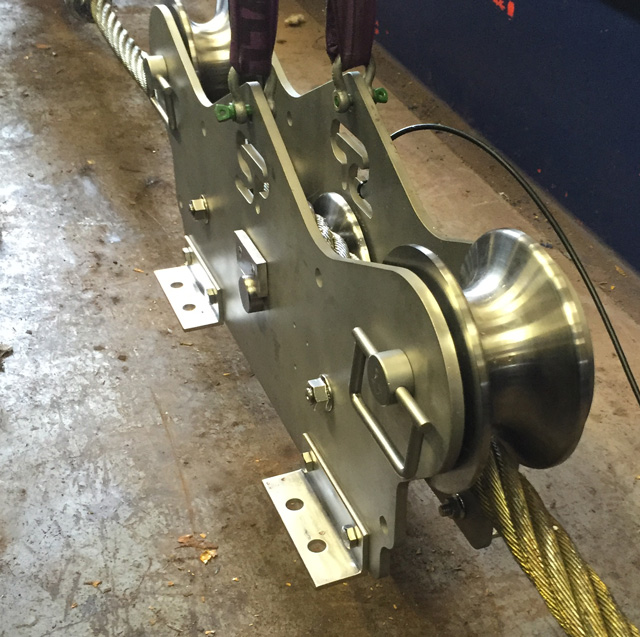

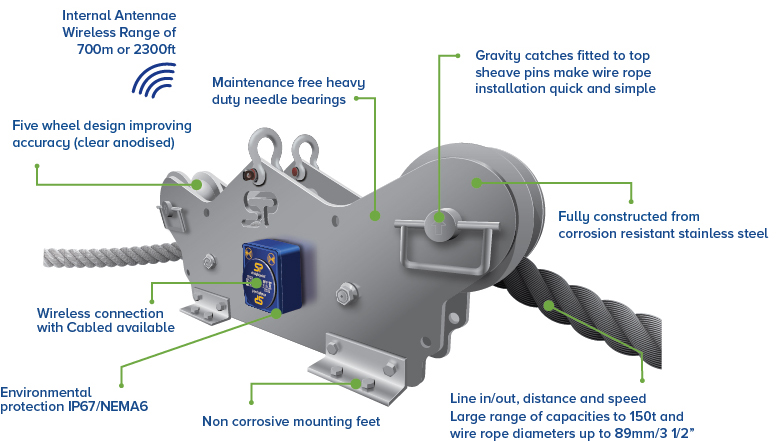

  • Fabricated from corrosion resistant stainless steel featuring a five (5) sheave arrangement for highest accuracy
  • Options for line out, line in and line speed is included with Wireless version (requires connection to SW-MWLC Software)
  • Cabled, wireless or Bluetooth connection alternatives
  • Bluetooth Option allows user to use Free App for wither Android or IOS Smarphones to view, log and transfer data via email or text. This eliminates the need for using a separate Hand-Held indicator.
  • IP67/NEMA6 Loadpin
  • Industry leading battery life
  • Maintenance free heavy duty bearings
  • Large range of capacities from 10t to 150t and wire rope diameters up to 52mm / 2”
  • Gravity catches fitted to top sheave pins make wire rope installation quick and simple
  • Software and App to data log and monitor or analogue outputs available as an option
  • Design validated by Finite Element Analysis to insure optimal structural integrity
  • ATEX version available for use in hazardous work environments
  • MTIMH Models - maximum Linear speed of cable is 165 ft/min (50 meters/min)
  • TIMH Models - maximum Linear speed of cable is 65 ft/min (20 meters/min)

Ranges

ModelCapacityResolutionWire Rope Ø
MTIMH10T22,000 lbs
10 te
20 lbs
0.01 te
5/32" - 3/4"
4 - 19 mm
TIMH10T22,000 lbs
10 te
20 lbs
0.01 te
1/2" - 3/4"
13 - 19 mm
TIMH25T55,000 lbs
25 te
50 lbs
0.02 te
5/8" - 1"
16 - 26 mm
TIMH56T123,200 lbs
56 te
100 lbs
0.05 te
1-1/8" - 1-1/2"
28 - 38 mm
TIMH80T176,000 lbs
80 te
200 lbs
0.1 te
1 5/8" - 2"
40 - 52 mm
TIMH150T200,000 lbs
150 te
500 lbs
0.2 te
2" - 3-1/2"
52 - 89 mm

Specifications

Accuracy+/- 2% of Full Scale
Range1600 ft line of sight / Wireless version 500 m
Battery TypeWireless version 4 x AA alkaline batteries
Battery LifeWireless version 1200 hrs
Operating Temp14 to 122 ˚F / -10 to +50 °C
ProtectionNEMA6 / IP67
Overall Height12.99" / 330 mm
Weight168 lbs / 76 kg
MTIMH10T: 20 lbs / 9 kg
Cable Speed (max)MTIMH = 165 ft/min (50 meters/min)
TIMH = 65 ft/min (20 meters/min)

Dimensions

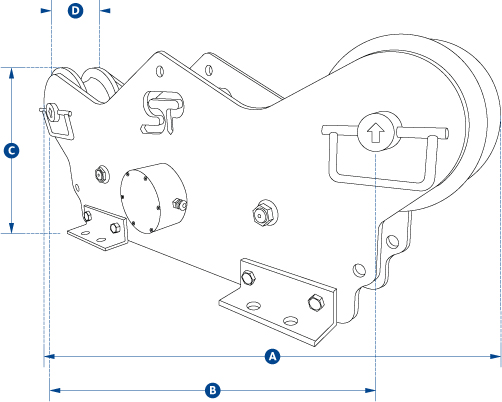

TIMH Running Line Tensiometer Dimensions
A B C D
TIMH 880mm / 34.65" 700mm / 27.55" 330mm / 12.99" 110mm / 4.33"
MTIMH 422mm / 16.62" 330mm / 13.00" 160mm / 6.30" 36mm / 1.40"

Complete Kit

The MTIMH/TIMH is supplied as a complete kit with the gauge, Proof test certificate, and Operating Instruction Manual - all in a wooden crate.
