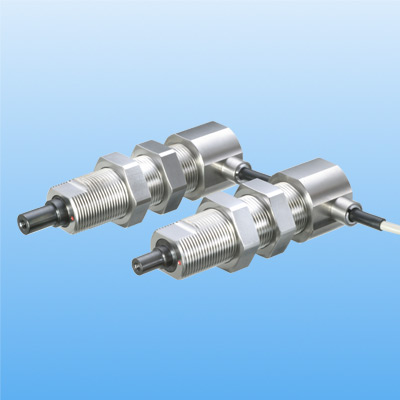

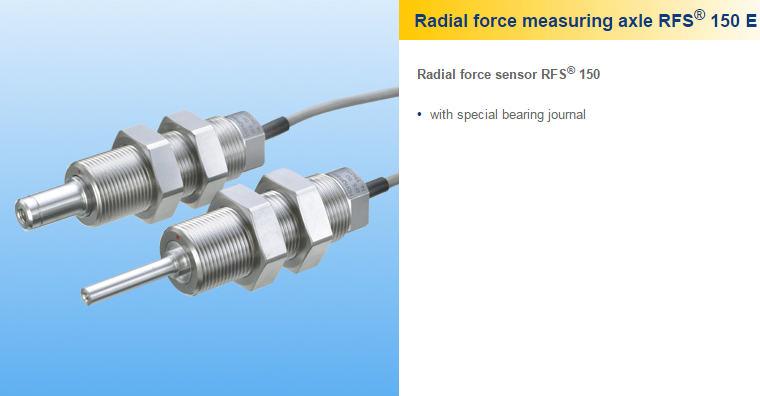

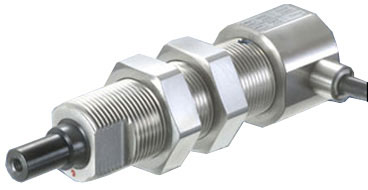

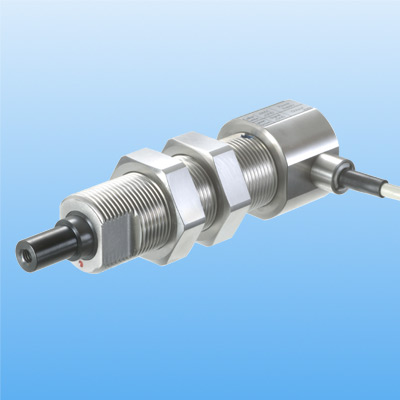

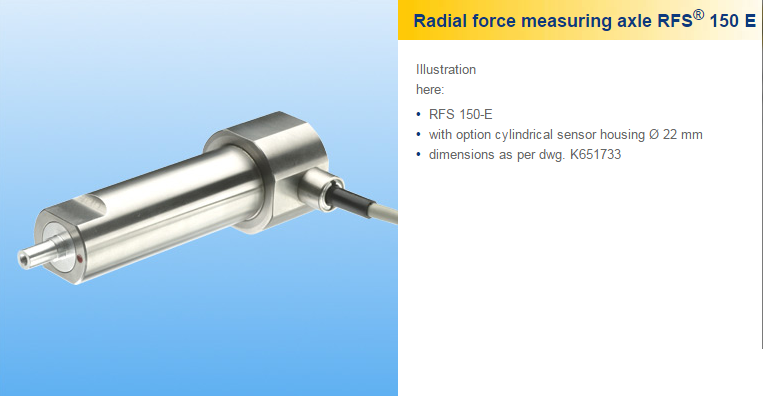

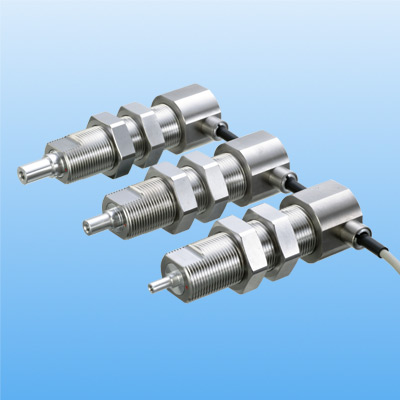

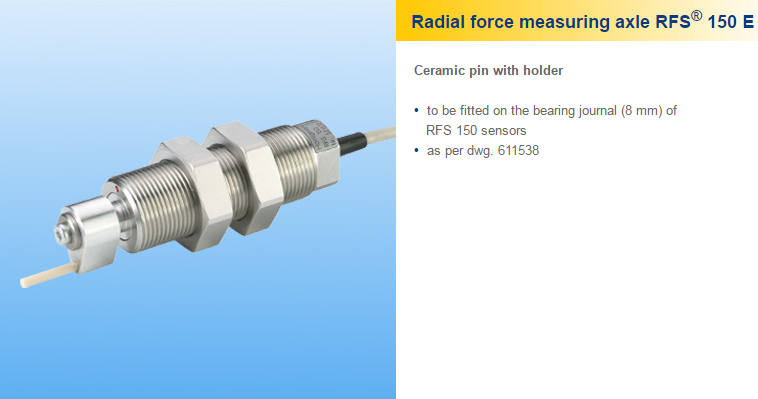

RFS150E On-Line Tension Sensor With Built-In Amplifier

Made in Germany
Ranges up 500Kg / 5000 N / 1100 lbs

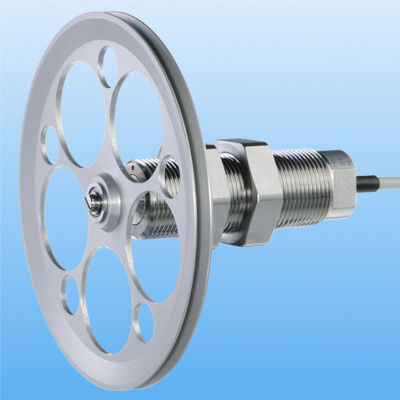

The Honigmann RFS® 150 E is a single roll tension sensor designed to measure the running line tensions of yarn, wires, optic fibers, cables, tapes/bands, wraps/webs, foils and similar process materials. Existing rollers with 20-180 degree wrap angles can be converted for use as RFS measurement locations.

The RFSE features a unique strain-gauge design delivering extremely precise and stable measurements providing maximum overload protection. They are used in a variety of low and high-range applications, such as measuring 1 or 2 grams on fine denier yarns/fibers to applications measuring wire/cable up to 500 Kg.

High precision mechanical design ensures the calibrated accuracy of the RFS remains unchanged throughout the sensor’s service life. The measurement is not influenced by the force introduction point, i.e. the sensor is not affected by lever arm action or any axial tilt torques which might occur.

Measurement Principle
The force acting radially at the bearing journal, along the measurement vector, causes a microscopically small, elastic deformation of the complex load cell. This deformation is registered at a pre-determined position by way of strain gauges and is then evaluated electronically. The high mechanical stiffness of the load cell enables measurement with virtually no excursion. This tension measurement principle is based on the evaluation of the force applied radially and transferred to the sensor by way of the bearing journal. This force is determined by the reversing geometry and the line tension.

The RFSE features a built-in strain-gauge amplifier providing a 0-10 VDC or 4-20 mA output proportional to the capacity. This sensor requires an unregulated 24 VDC power source and only requires a "zero" adjustment via adjustment pot on the rear portion of the sensor body.

Features

  • Integrated measurement amplifier for compact mounting onto the application
  • Resolution of 0.1% and better
  • Rugged stainless steel housing is environmentally sealed
  • Threaded housing with lock-nuts permits easy mounting and simple alignment
  • Overload protection up to 800%

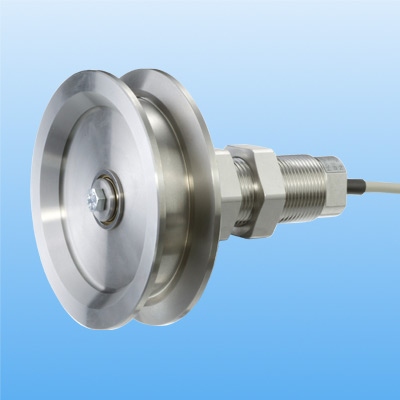

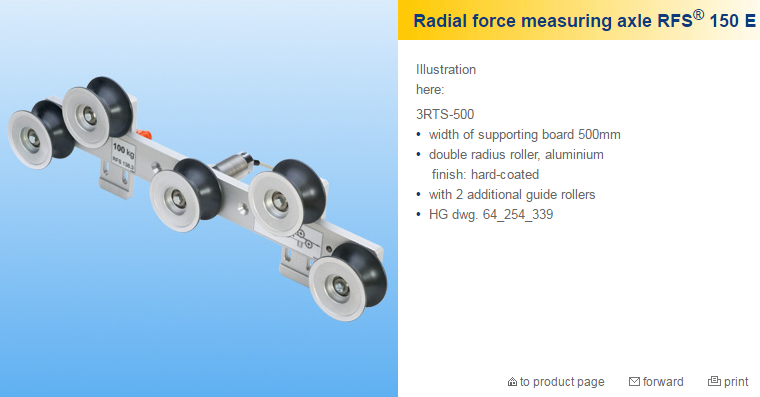

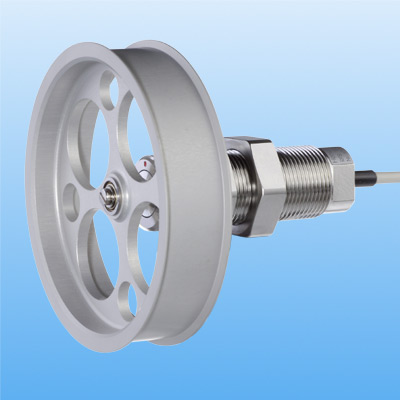

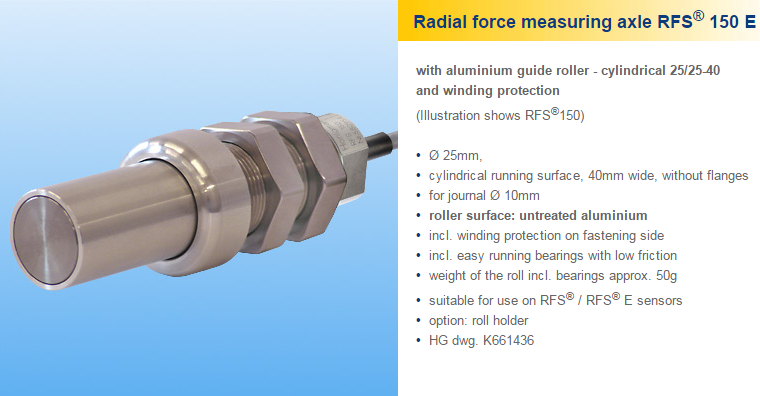

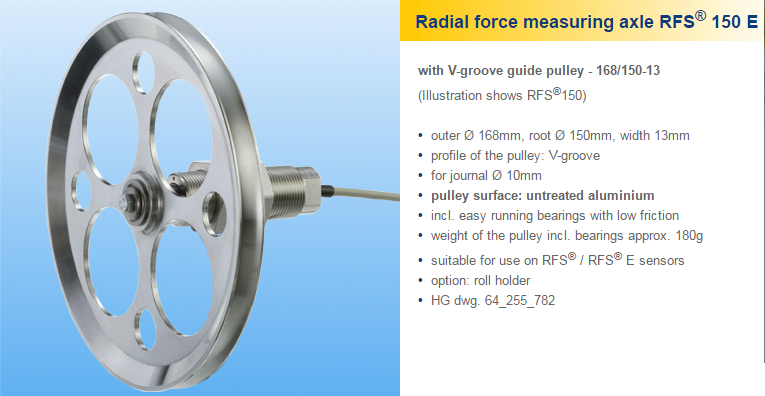

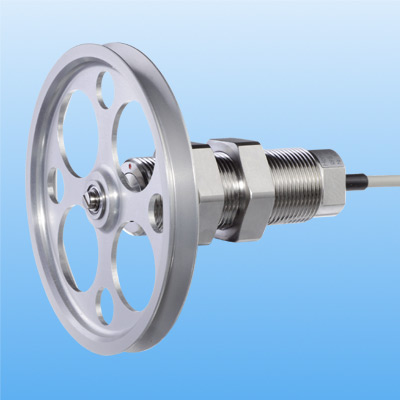

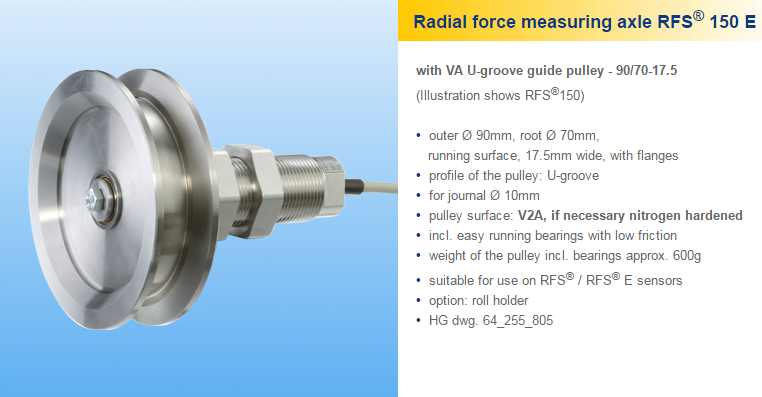

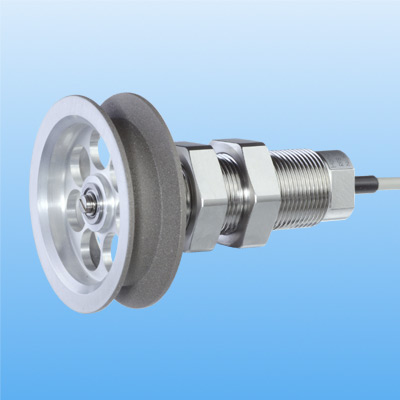

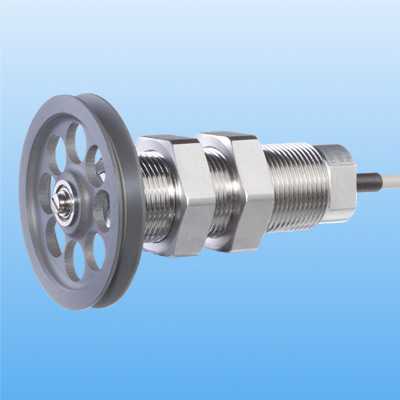

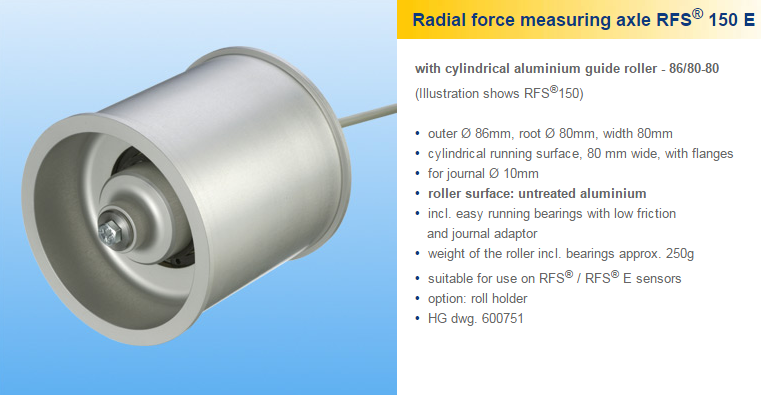

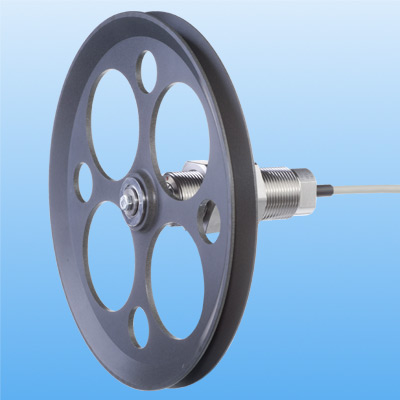

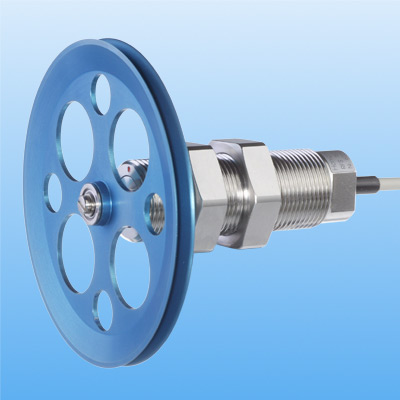

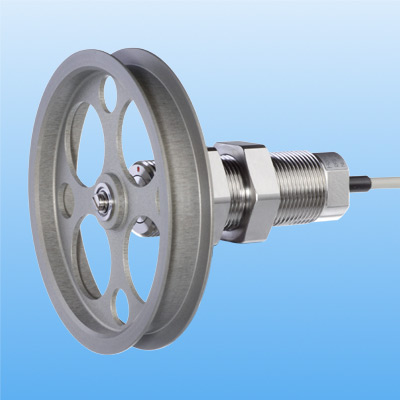

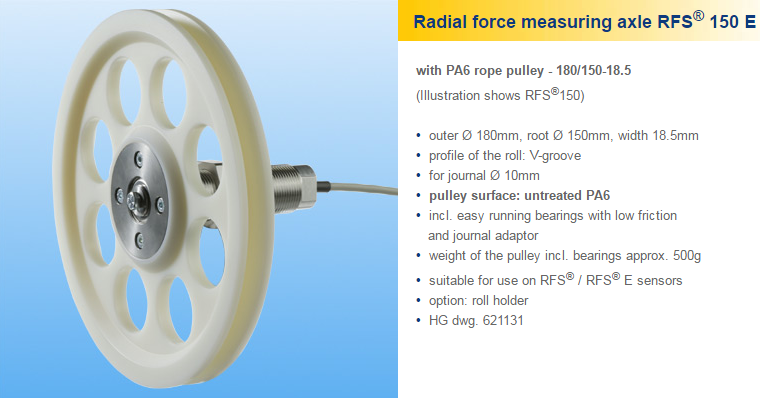

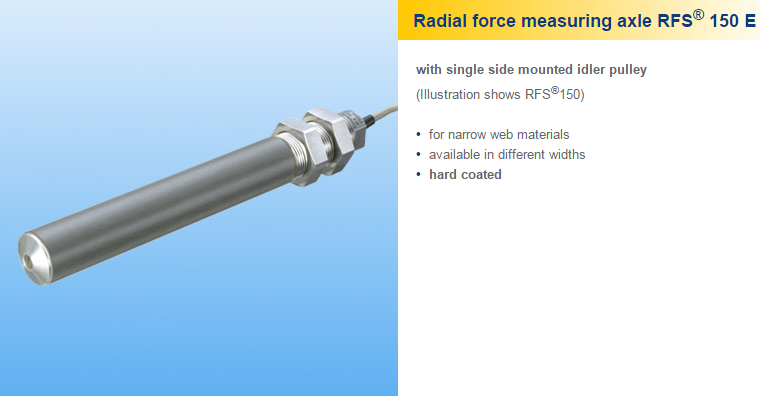

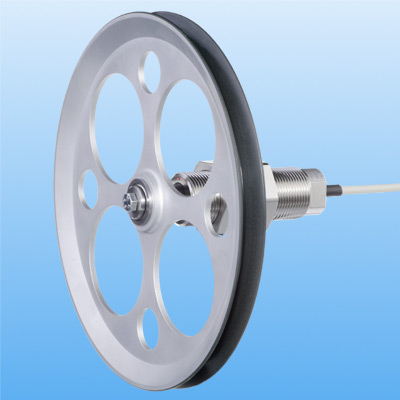

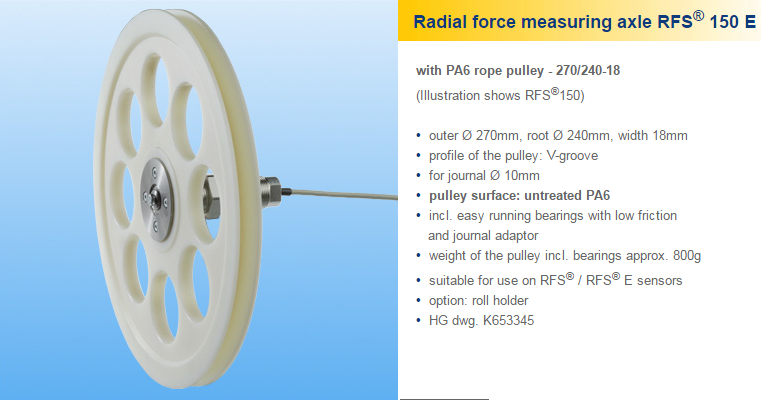

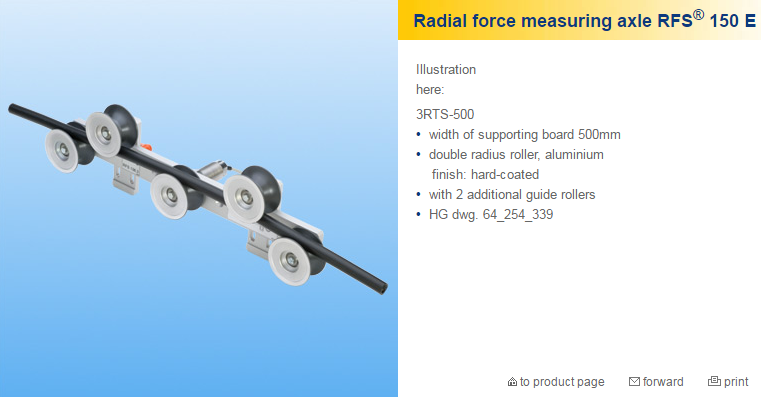

  • Wide variety of precision, ball-bearing mounted guide rollers are available
  • Supplied with a 10 ft. (3 m) shielded cable. Optional lengths are available
  • Custom sensor designs can be developed to meet specific applications requirements. Inquire.

Tension Ranges

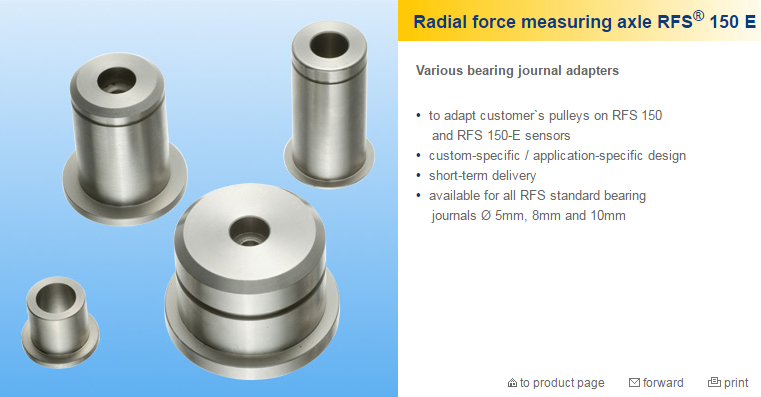

ModelCapacity (Resultant Force)Bearing Journal Diameter (mm)
RFSE-100100 g (0.22 lbs) / 1N5, 8, 10
RFSE-200200 g (0.44 lbs) / 2N5, 8, 10
RFSE-300300 g (0.66 lbs) / 3N5, 8, 10
RFSE-400400 g (0.88 lbs) / 4N5, 8, 10
RFSE-500500 g (1.1 lbs) / 5N5, 8, 10
RFSE-1K1 Kg (2.2 lbs) / 10N5, 8, 10
RFSE-2K2 Kg (4.4 lbs) / 20N5, 8, 10
RFSE-3K3 Kg (6.6 lbs) / 30N5, 8, 10
RFSE-4K4 Kg (8.8 lbs) / 40N5, 8, 10
RFSE-5K5 Kg (11 lbs) / 50N8, 10, 12
RFSE-6K6 Kg (13 lbs) / 60N8, 10, 12
RFSE-10K10 Kg (22 lbs) / 100N8, 10, 12
RFSE-20K20 Kg (44 lbs) / 200N8, 10, 12
RFSE-30K30 Kg (66 lbs) / 300N8, 10, 12
RFSE-40K40 Kg (88 lbs) / 400N8, 10, 12
RFSE-50K50 Kg (110 lbs) / 500N10, 12
RFSE-60K60 Kg (132 lbs) / 600N10, 12
RFSE-100K100 Kg (220 lbs) / 1000N10, 12
RFSE-200K200 Kg (440 lbs) / 2000N12

Tension & Force Definitions


Related Products

Click image for more info
Digital Tension Indicator
- Selectable “damping function” reduces display fluctuations
- 24V DC power supply with galvanic isolation
Click image for more info
Data Transfer & Analysis Program For Honigmann Tension Sensors
- Real time display of measured values graphically and digitally, indicating the actual value in tension units
- Export data in ASCII format

Specifications

TypeRFS® 150 E
Measuring PrincipleStrain Gauge
Accuracy Class±0.1%
Sensor OutputVoltage: 0-10V DC (standard)
Current: 4-20 mA (Option MA)
Overload Protection400 - 800%
Deflection0.07mm (max.)
Housing MaterialStainless Steel
Environmental ProtectionIP50 (Splash-Proof)
Cable Type4.5 mm diameter shielded cable with bare leads
Cable Length10 ft. (3 meter), longer lengths available. Inquire
Operating Temperature15 to 122° F (-10 to 50° C)
Sensor Excitation20 - 28 VDC
(24 VDC recommended @ 36 mA)
Sensor Output0 - 10 VDC (standard)
4 - 20 mA (Optional)
Fequency Responce5 msec (200 Hz)
Zero Adjustment±45%
Weight500g
Resultant Force[Line Tension] x sine α [wrap angle]
