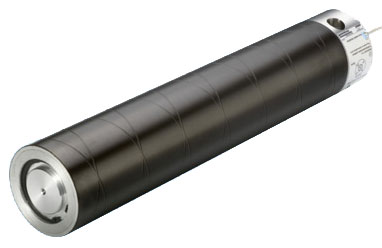

CSW Narrow Web Tension Sensor

Made in Germany
CSW Narrow Web Tension Sensor
Click images to enlarge.
The new CheckLine CSW Narrow Web Tension Sensor features a unique strain-gauge design that delivers highly accurate results regardless of web position on the roll and even if one edge is tighter than the other.

The CSW Tension Sensor roll provides two functions at once: • measurement of tension in the web • guiding and reserving the product web

Features

  • Single-side flange mounting
  • High overload protection by mechanical fixed stop
  • easy-turning roller bearings with lifetime lubrication
  • Integrated Direction Adjuster provides precise and stepless direction adjustment of measurement axis, when the sensor roll is installed
  • direct radial force transfer

Specifications

Measurings Ranges0-5 N to 0-5000 N
Resolution0.1%
Excitation12V
Overload Protection300 - 500%
IP RatingIP 50
