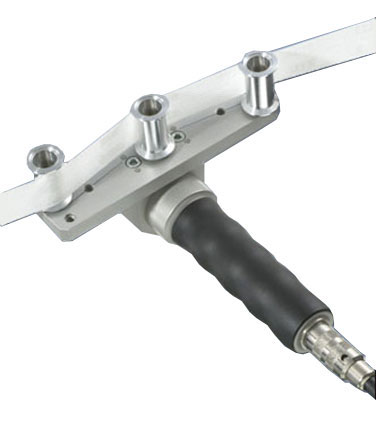

133-33 Precision Tension Meter

Made in Germany

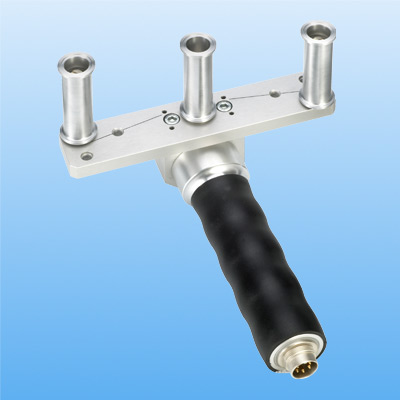

133-33 Precision Tension Meter
Click images to enlarge.
Available in 6 load ranges
0 - 5 g through 0 - 50 Kg

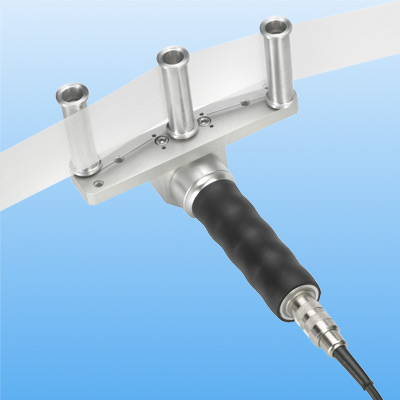

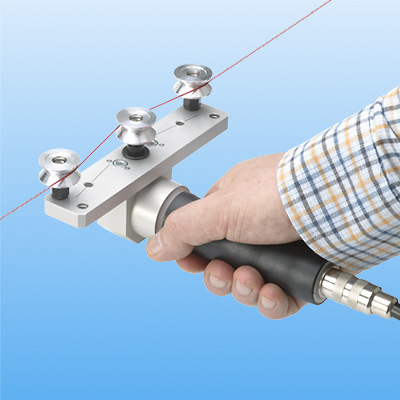

The angled design utilized in this series gives users a general-purpose sensor with a narrow profile. This makes for convenient measurement operations even where space is restricted - typical when measuring woven tapes and web threads.

The range of applications for this series of sensors covers extensive areas in research, quality control and production in the wire, cable, film and textile industries and the like.

Features

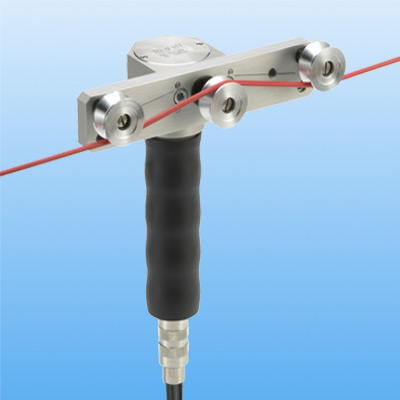

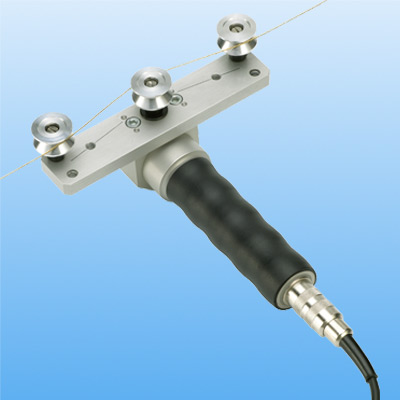

  • for measuring monofilament textiles, copper- and steel wires, healds, carbon fibres up to 2.0 mm Ø, as well as tapes, belts, thread groups, films, foils, magnetic tapes, etc.

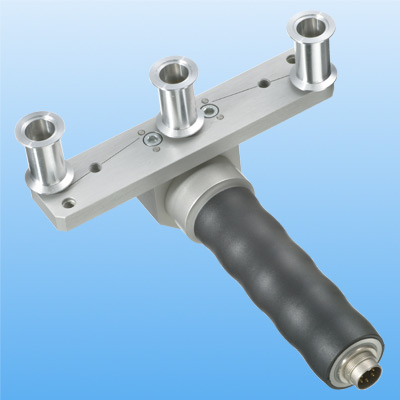

  • customized guide rollers optional

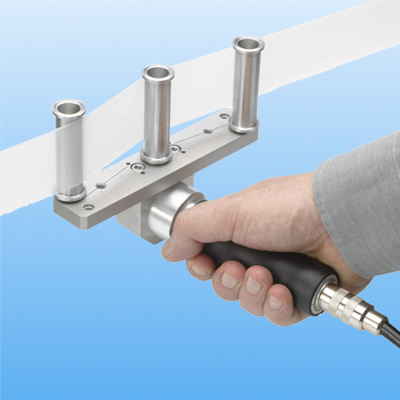

  • easy handling even when inserting into running products in cramped quarters
  • effective overload protection for uninterrupted availibility
  • measuring path: 100, 120 or 150mm
  • smallest possible angle of contact (10°) means minimum impact by:
    - inherent stiffness
    - acceleration torques
    - inertial forces due to deflection

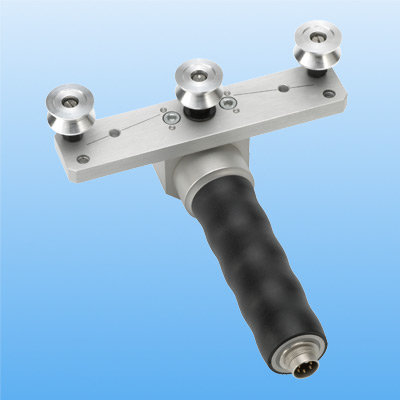

  • 3 ball-bearing aluminium rollers with V-groove, root Ø 16mm
  • excellent long-term stability and high precision for reproducible measuring results
  • diameter, stiffness, weight and speed of the product being measured have no influence on measuring accuracy
