132 Precision Tension Meter

Made in Germany

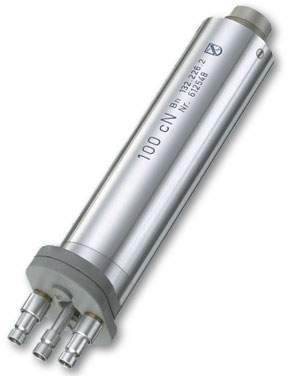

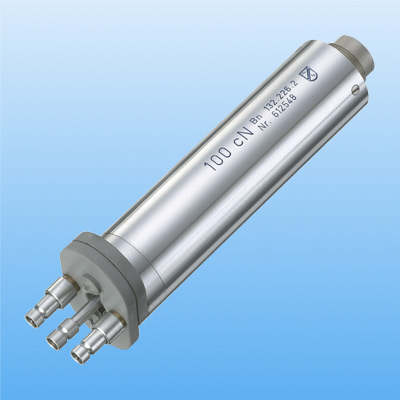

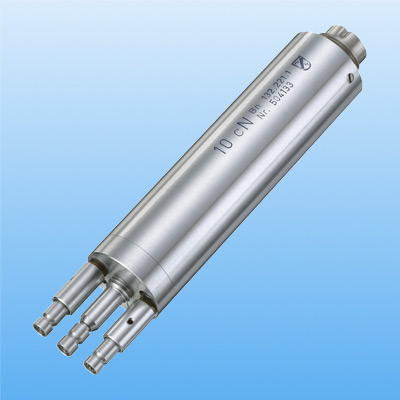

132 Precision Tension Meter
Click images to enlarge.
The 132 series tension meters are equipped with easy-turning guides, running on ball bearings, were developed especially to measure tensile forces in fine, sensitive and elastic materials

Features

  • For measuring sensitive and elastic yarns, rubber threads, healds, hollow fibers, fine wires and magnetic tapes
  • very small deflection angle of 15°
  • minimum parasitic influences on the product being measured
  • reproducible measuring results even when dealing with difficult products such as elastic strands and rubber thread
  • for speeds up to 1200 m/min
  • 3 ball-bearing aluminium rollers with V-groove, root diameter 2mm
  • minimum deflection of the product being measured

Tension Ranges

ModelRange
132-100 - 10g
132-200 - 20g
132-300 - 30g
132-500 - 50g
132-1000 - 100g
132-2000 - 200g
132-3000 - 300g

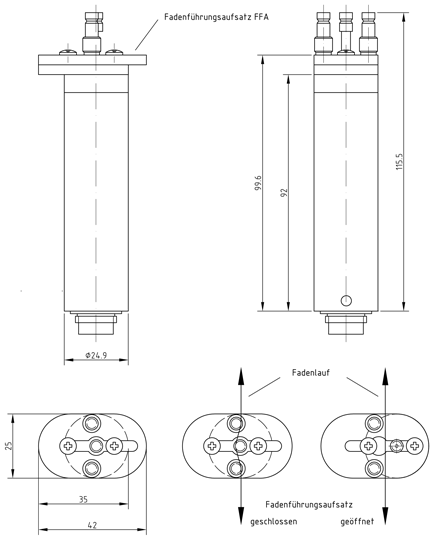

Dimensions

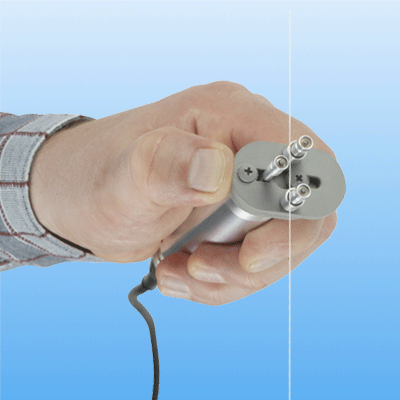

Material Threading Animation

Related Products

Click image for more info

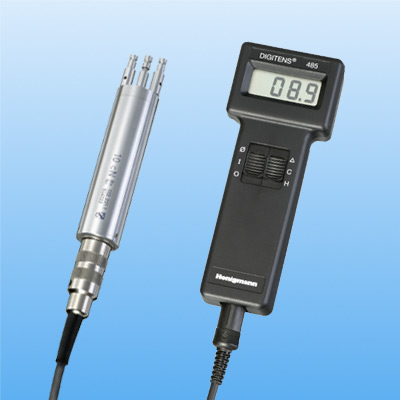

Digital Tension Indicator with Built-In Amplifier
- Convenient one-hand operation
- Tension values can scaled to a wide variety of engineering units
- Automatic zero setting and Hold function with slide-switch
- Averaging Mode (0.5 sec interval)
Click image for more info
Analog Tension Indicator with Built-In Amplifier
- Zero adjustment compensates for all measurement positions
- Provides 0-1 VDC analog output for recording purposes
- Three amplification settings are user-selected to provide maximum display resolution
Click image for more info
Data Transfer & Analysis Program For Honigmann Tension Sensors
- Real time display of measured values graphically and digitally, indicating the actual value in tension units
- Export data in ASCII format
