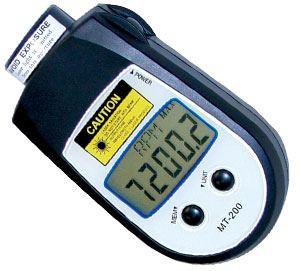

MT-200-SH MT-200-SH Combination Contact/Non-Contact Pocket Tachometer

MT-200-SH Tachometer
Click images to enlarge.
The MT-200-SH Combination Contact/Non-Contact Pocket Tachometer with microprocessor technology possesses the precision of the our standard full size tachometers, yet within a compact, pocket-style enclosure. These battery-operated tachometers feature the same rugged, high quality components that have made our tachometers the benchmark in the industry. The MT-200-SH provides users with the capabilities of measuring and recording speeds of rotational, linear and surface plus total length in both contact or non-contact modes. The user-friendly, value-packed units feature memory storage; quick selection unit’s button; length functions; retrieval of last, maximum and minimum values; plus each unit comes standard with a free N.I.S.T. calibration certificate. Each unit ships in a protective carrying case which includes a cone adapter, funnel adapter and 6” circumference wheel.

Features

  • Multiple measurement types in both contact or non-contact modes: total revolutions (rev); revolutions per minute (rpm); surface speed: m/min, y/min, ft/min, in/min; and length: meters, yards, feet and inches
  • Non-contact measurements up to 23.6" (60 cm) away
  • Compact, pocket-size design fits easily in the palm of the hand
  • Memory automatically stores minimum, maximum and last. Plus, 10 user stored readings of the process can also be recorded
  • Long battery-life enables continuous operation
  • Instant conversion of units
  • Low battery and over range indication
  • NIST calibration certificate included with every unit

Related Products

DT-105A Hand-Held Tachometer
Click image for more info
Hand-Held Contact Tachometer
- Built-in memory for last, maximum, minimum and 10 separate readings
DT-205LR Tachometer measures via contact and non-contact
Click image for more info
Combination Contact & Non-Contact Tachometer
- High-precision laser measures from distances up to 14 feet
- Includes 6" circumference surface speed wheel
CDT-2000HD hand-held tachometer
Click image for more info
Combination Contact and Non-Contact Digital Tachometer
- Measures speeds from as low as 1.00 rpm up to 99,999 rpm
tachometer and stroboscope calibrator
Click image for more info
Tachometer Calibrator, Stroboscope Calibrator

Tachometer Accessories

Complete Kit

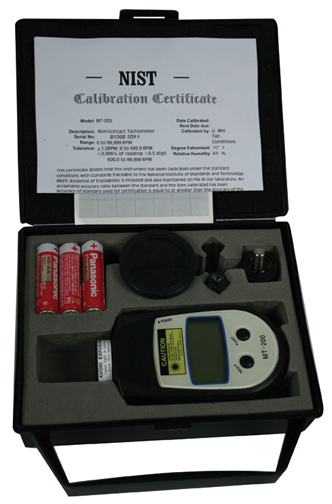

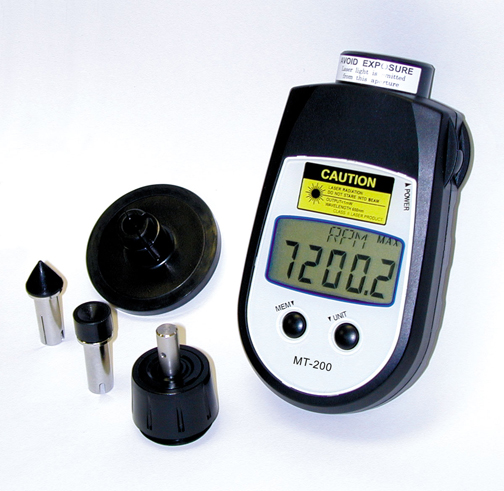

The MT-200HS comes complete with three AA Batteries, cone adapter, funnel adapter, contact adapter, master wheel (6″ cir.), reflective tape, carrying case, NIST certificate

Specifications

Display RangeRPM Non-Contact: 6.0 - 99,999 RPM Contact: 6.0 - 25,000 RPM
Revolutions (total) Non-Contact & Contact: 1 - 99,999
Speed Using 6" Cir. Wheel: meters/min: 0.1 - 3,809.8; yards/min: 1.0 - 4,166.4; inch/min: 36 - 99,999; feet/min: 3.0 - 12,499
Length Using 6" Cir. Wheel: meters: 0.2 - 99,999; yards: 0.2 - 99,999; feet: 0.5 - 99,999
AccuracyRevolution: 6.0 - 599.9 rpm: ±1 rpm ; 600 - 99,999 rpm: ±0.006% ±0.5 digit
Surface Speed, Length: ±0.4% ±1 digit
Display5 digit 0.47" (12 mm) high LCD
Memory SystemReadings are stored in memory and retained for 5 minutes (last, max., min., and 10 user logged measurements)
DetectionLaser diode
Update Time1 second (typical)
Over Range IndicatorFlashing numerals
Power Requirement3 AA 1.5V batteries
Operating Temperature32° - 113°F (0° - 45°C)
ConstructionABS Resin housing
Product Weight0.35 lb (160 g)
0.46 lb ( 210 g) With contact adapter installed
Package Weight0.85 lb (386 g)
DimensionsMain unit: 4.55”L x 2.52”W x 1.24”H (115.5 mm x 64 mm x 31.5 mm)
Overall Length with contact adapter: 5.9” (149 mm)
Warranty2-Year

Downloads

Buy Now

Item Description Price
Digital Contact/Non-Contact, Pocket Tachometer with included contact adapter, 6" circumference contact wheel and NIST calibration certificate
$184.50
Accessories
Cone Tip for Hand-held tachometers
$10.00
Funnel Tip for Hand-held tachometers
$10.00
Shaft Extension for Tachometers, 3 inch
$15.00
6 Inch Circumference Tachometer wheel, 7mm shaft (FPM-6)
$30.00
Reflective Tape, 1x7 Inch Strip
$5.00
Reflective Tab Sheet, 35 1/2" x 1/2" Squares
$5.00
Qty 4 Reflective Tab Sheet, 35 1/2" x 1/2" Squares
$15.00
Reflective Tape, 1/2" x 5'
$10.00
