MT-100 Contact Pocket Tachometer

MT-100 Contact Pocket Tachometer
Click images to enlarge.

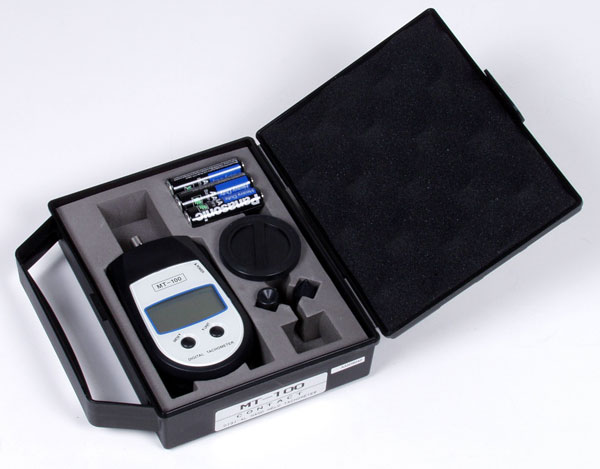

The MT-100 Contact Pocket Tachometer with microprocessor technology possesses the accuracy of the standard SHIMPO Tachometer line, yet within a compact, pocket-style body. The MT-100 provides users with the capabilities of measuring and recording speeds of rotational, linear and surface plus total length. These battery-operated tachometers feature the same rugged, high quality components that have made SHIMPO tachometers the benchmark in the industry. The user-friendly, value-packed units feature memory storage; quick selection unit’s button; length functions; retrieval of last, maximum and minimum values; plus each unit comes standard with a free N.I.S.T. calibration certificate. Each unit ships in a protective carrying case which includes a cone adapter, funnel adapter and 6” circumference wheel.

Features

  • Supplied with NIST-traceable calibration certificate
  • Measures RPM & surface speed and length
  • Readings are stored in memory and retained for 5 minutes (last, max., min., and 10 user logged measurements)
  • Displays Metric & English length units
  • 2 Year Warranty
  • Simple One Button Operation

Related Products

DT-105A Hand-Held Tachometer
Click image for more info
Hand-Held Contact Tachometer
- Built-in memory for last, maximum, minimum and 10 separate readings
DT-205LR Tachometer measures via contact and non-contact
Click image for more info
Combination Contact & Non-Contact Tachometer
- High-precision laser measures from distances up to 14 feet
- Includes 6" circumference surface speed wheel

Specifications

Display5 digit 0.47” (12 mm) high LCD
RPM Measuring RangeRevolutions: 1.0 – 25,000 RPM , 0.1 – 99,999 Rev. (total)
Surface speed 6" Wheelmeters/min: 0.1 – 3,809.8; yards/min: 1.0 – 4,166.4; inch/min: 3 – 99,999; feet/min: 0.2 – 12,499
Length- ( Using 6" wheel)Length Using 6” Cir. Wheel: meters: 0.01 – 99,999; yards: 0.01 – 99,999; feet: 0.1 – 99,999; inch: 1 – 99,999
AccuracyRevolution: 1.0 – 599.9 rpm: ±1 rpm, 600 – 25,000 rpm: ±0.006% ±0.5 digit, Surface Speed, Length: ±0.4% ±1 digit
Memory SystemReadings are stored in memory and retained for 5 minutes (last, max., min., and 10 user logged measurements)
DetectionOptical coupler, 20 pulses/rev.
Update Time1 second (typical)
ver Range IndicatorFlashing numerals
Power Requirement3 AA 1.5V batteries
Operating Temperature32° – 113°F (0° – 45°C)
ConstructionABS Resin housing
Product Weight0.37 lb (170 g)
Dimensions4.83”L x 2.52”W x 1.24”H (122.5 mm x 64 mm x 31.5 mm)
Included AccessoriesThree AA Batteries, cone adapter, funnel adapter, master wheel (6” cir.) carrying case, NIST certificate
Warranty2 Years

Buy Now

Item Description Price
MT-100 Contact Tachometer
$157.50
Accessories
Cone Tip for Hand-held tachometers
$10.00
Funnel Tip for Hand-held tachometers
$10.00
Shaft Extension for Tachometers, 3 inch
$15.00
6 Inch Circumference Tachometer wheel, 7mm shaft (FPM-6)
$30.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
