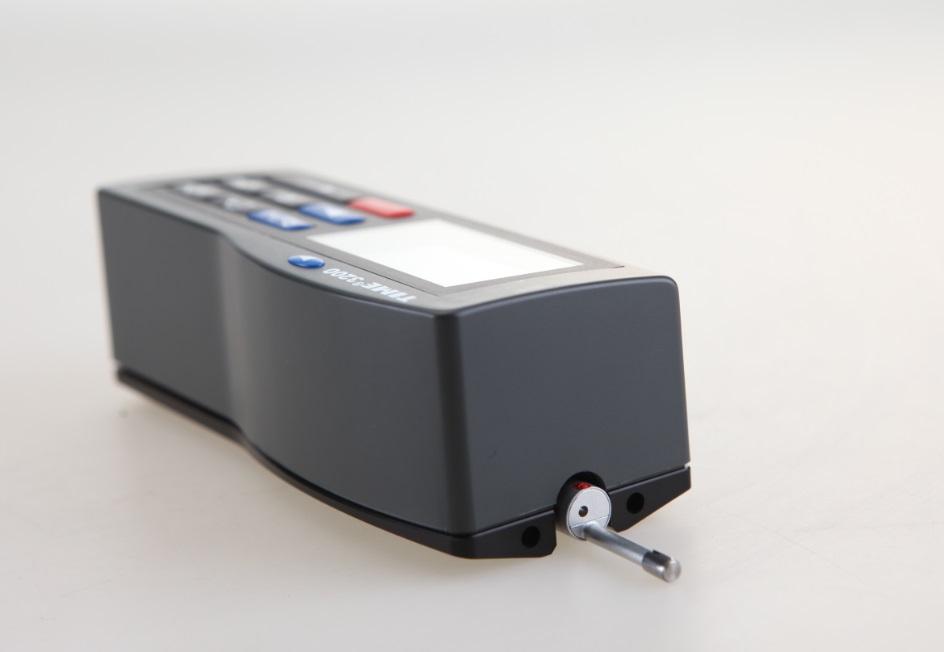

TIME3200 Surface Roughness Tester TR200

time3200 surface roughness tester
Click images to enlarge.
The TIME3200 Surface Roughness Tester is designed to measure in Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv,R3z, RS, RSm, RSk and Rmr units. It is commonly used for testing roughness during the manufacturing processes as well as in test labs.

Features

  • High accuracy inductive pickup

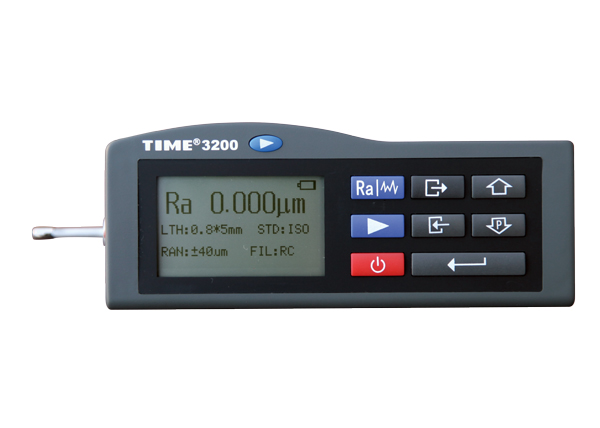

  • Large LCD display with backlight.
  • Pickup stylus position indicator

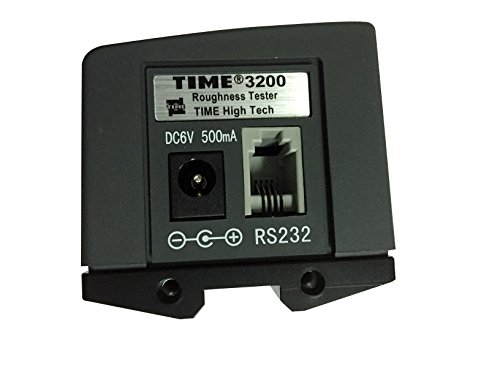

  • RS-232 Output
  • Storage and review function for up to 15 groups data and graphs
  • Conform to ISO standard, compatible with DIN, ANSI and JIS standard
  • Powered by Li-Ion Battery

Complete Kit

The TIME3200 is supplied as a complete kit including:
Main unit
TS100 standard pickup
Roughness test plate Ra
Battery Charger
Protection Nose

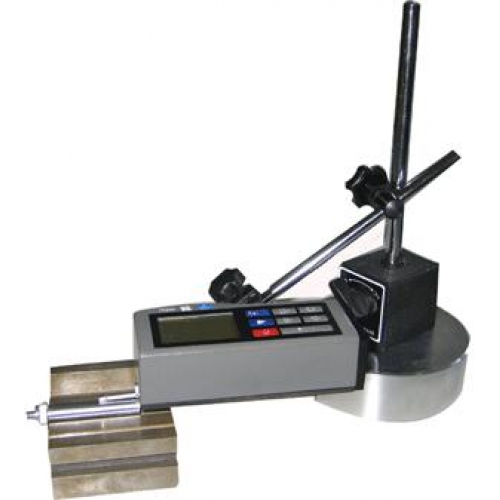

Steel support
Dataview
Communication cable
Instruction manual

Specifications

Roughness parametersRa, Rz, Ry, Rq, Rt, Rp, Rmax, Rv,R3z, RS, RSm, RSk, Rmr
Assessed profilesRoughness profile (R) Primary profile (P)
UnitsMetric, Imperial
Display resolution0.001 μm
Data outputRS232
Pickup measuring range±20μm, ±40μm, ±80μm
Cutoff length (L)0.25mm / 0.8mm / 2.5mm/Auto
Evaluation length1~5L (selectable)
Tracing length3-7L(selectable)
Digital filterRC, PC-RC, Gauss, D-P
Max. tracing length17.5mm/0.71inch
Min. tracing length1.3mm/0.052inch

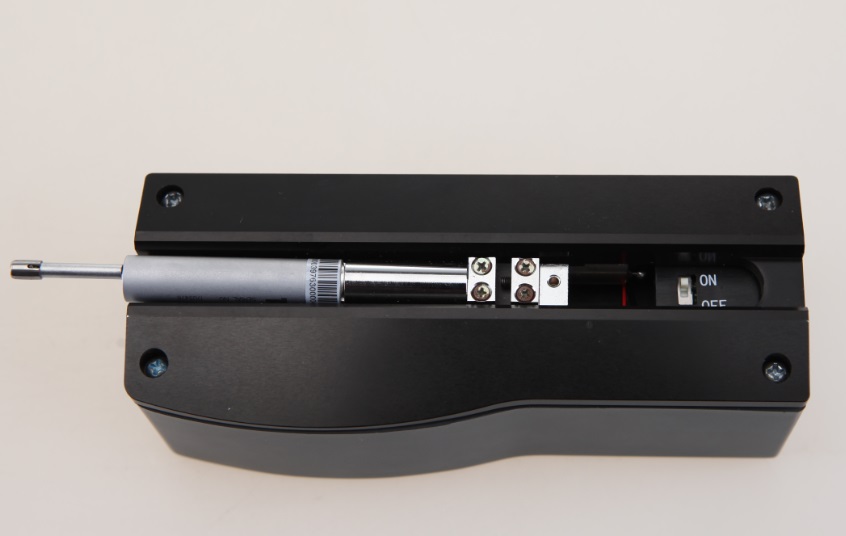

Pick-upStandard pickup TS100, inductive, diamond stylus radius 5μm, angle of stylus 90°
Accuracy≤±10%
Repeatability≤6%
PowerLi-ion battery rechargeable
Dimensions (mm)140×52×48
Weight (g)440
