DT-366 Battery Powered LED Stroboscope

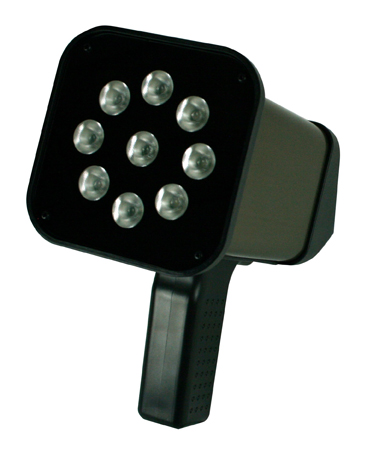

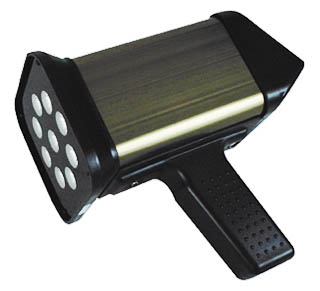

DT-366 LED stroboscope
Click images to enlarge.
The DT-366 is a portable, battery-powered stroboscope that utilizes super bright CREE High-Powered LED lamps. The DT-366’s LED array provides a bright, stable strobe light over a wide measurement range with a lifetime far exceeding xenon-lit stroboscopes. Combined with large, backlit LCD display, operation is simple with the 8 button keypad and quick rate-adjustment dial. Phase shift, flash duration, plus flash rate all are easily viewed and adjustable. The unit can function by user altered flash frequency or from a remote sensor’s signal input which will automatically adjust the stroboscope to the corresponding process fluctuations. Containing a rechargeable lithium battery, a single charge is able to last up to a full 12 hours of operation.

The DT-366 is designed for speed and frequency measurements in motion and vibration analysis applications. It is ideal for predictive and preventive maintenance applications such as: motors, shafts, roto-gravure printing, extruders, blow molding, wire lettering and striping, engraving, pulse jets, water jets, fans, cams, gear teeth, belt inspections, fuel injectors, vibration analysis, spindle spinning, cutting blade timing and sharpness, plus many more in the printing, packaging, textile, automotive, cable, mining, steel, chemical, optical, medical and shipbuilding industries.


  • LED technology greatly extends operation life and eliminates need to replace burned out bulbs

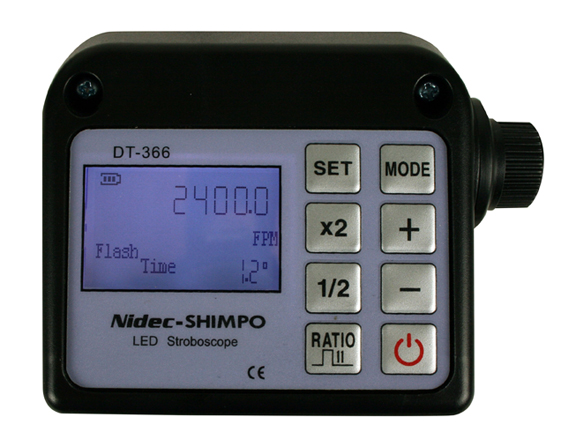

  • Backlit LCD display aids usage while operating in dimly lit areas
  • Easy adjustment with flash dial combined with x2/÷2 and fine tuning +/- buttons enables precise flash setting
  • Fast-charge rechargeable battery provides exceptional, long-term usage reliability
  • Adjustable Flash Pulse duration achieves sharper images for detailed inspection
  • Phase shift (in degrees of delay time) enables visual analysis of rotating or reciprocating objects through all points of motion/time/angle
  • Flash rate may be synchronized with process speed with input from sensor or controller
  • 1/4-20 UNC connection for permanent mount applications (remove trigger handle)



Flash Rate Range30 to 120,000 FPM ; 1-2000 Hz
Accuracy0.01% ±1 digit of F.S. @ 77° F (25°C)
Lux Rating @ 6000FPMDistance 8˝ (20 cm) 6850 lx with 10˝ (254 mm) irradiation dia., Distance 20˝ (50 cm) 2325 lx with 14˝ (355 mm) irradiation dia.
Lux Rating @ 1500FPMDistance 8˝ (20 cm) 3395 lx with 10˝ (254 mm) irradiation dia., Distance 20˝ (50 cm) 1350 lx with 14˝ (355 mm) irradiation diav
Lamp LifetimeApproximately 3~5 years depending on usage.
DisplayBacklit LCD
Resolution60 ~12,000 FPM = 0.1 FPM; 12,001~120,000 FPM = 1 FPM; 1~200 HZ = 0.01 Hz; 201~2000 = 0.1 Hz
Flash Duration0.1°- 2.5°
Power Requirement100-240 VAC 50/60Hz
BatteryLithium DC 16.8V 2600 mAh
Battery LifeApprox. 12 hrs depending on settings
External Sensor Input15 V Pulse Input; Mini-USB
Sensor Power Supply15 V dc up to 50 mAh
Input Pulse WidthOver 50 μs
Input Signal Flash Delay0-999 ms; 0-359°
Temperature Limits32-95°F (0-35°C)
Humidity Limits35 to 85% RH
EnclosureAluminum & ABS
Product Weight2.15 lb (0.98 kg)

Complete Kit

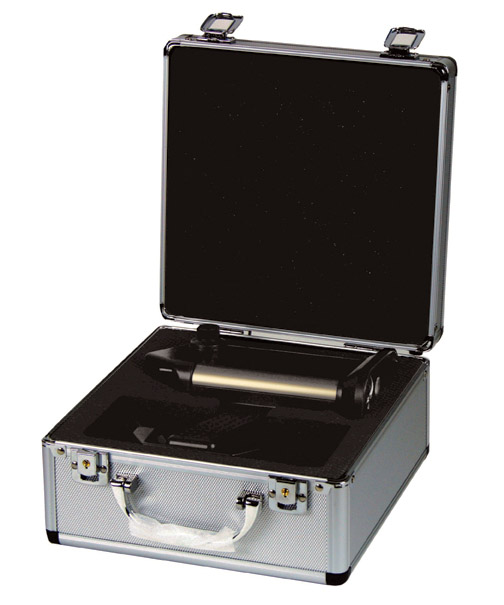

Stroboscope, Carrying Case, Power Charging Adapter with Cord, Bottom and Top Handle


Buy Now

Item Description Price
Stroboscope, Portable, Battery Powered, CREE LED
NIST Traceable Certificate of Calibration for Stroboscopes
ISO-17025 Certificate for Tachometer or Stroboscope
Rubber Strobe Guard for DT-735 & DT-311D Stroboscopes. Front Bezel only.
Proximity Sensor with USB Connection for DT-366 Series Stroboscopes
Top handle for DT-366 Stroboscope
Replacement Battery for DT-366
Charger for use with DT-366 (NO CABLE)
Adapter Cable for use with DT-366, US plug
Adapter Cable for use with DT-366, EU plug
