PK2X-AC Portable Stroboscope

Made in Germany

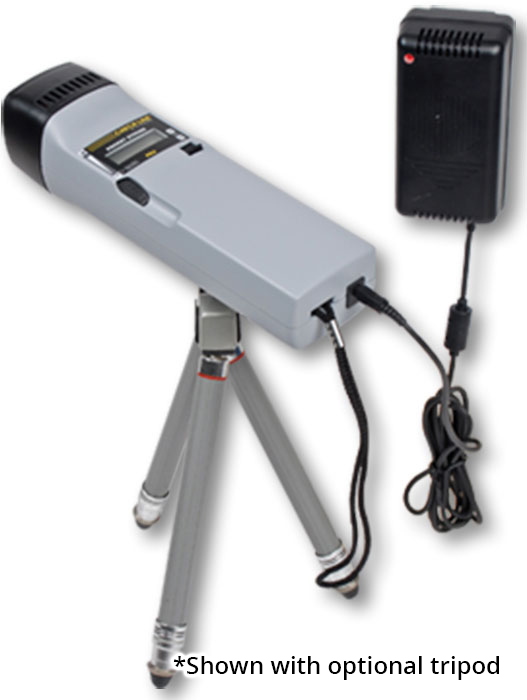

PK2X-AC Strobscope
Click images to enlarge.
stroboscopePK2X-AC
30 - 12,500 RPM/FPM
and higher using harmonics

The new PK2X-AC hand-held Portable Strobe® is a convenient and accurate device to perform non-contact RPM measurements on rotating or reciprocating parts or components as well as a proven means for inspection of moving parts/machinery by “freezing” or “slowing down” the action. This stroboscopic effect is accomplished by matching the flash rate of the stroboscope with the repetitive rate (RPM) of motion of the target. A slow-motion effect is accomplished with a slight mismatch of the relative speeds.

The PK2X-AC is powered directly from an AC power source allowing for continuous use. Its small size, lightweight design makes it perfect for use by field technicians or maintenance personnel.

The new PK2X-AC offer significant improvements from the previous generation model PK2 including a 50% improvement in flash brightness.

This new model continues to offer the highest reliability, refined by over 10-years of continuous design & manufacturing improvements since the introduction of the original Pocket Strobe Model PK1 was introduced in 1996.

The PK2X-AC requires only one hand to operate, yet delivers performance comparable to much larger and heavier “pistol-grip” type models. It is ideal for industrial, laboratory, R&D and academic environments. Its small size and excellent performance provide superior convenience and value — at a reasonable price.

Features

  • Accepts input from sensor for external flash triggering
  • Provided with a threaded insert on underside of strobe for mounting to articulating arm or other fixture
  • Resolution of ±1 RPM over the entire range with highly accurate speed control and drift-free operation
  • Operates continuously via AC-power, does NOT include internal battery
  • Portable, lightweight and rugged construction
  • AC-Adapter can be used anywhere worldwide
    (100 – 240V AC) with plug adapters provided for N. America, Europe, UK & Australia AC outlets
  • Optional frequency output provided on PK2X-AC-OT

Complete Kit

Includes Stroboscope, Universal AC-Adapter (with plug adapters provided for North America, Europe, UK & AU), external input/output jack, Traceable Calibration Certificate and instruction manual, all supplied in a hard shell carrying case.

Optional Accessories

Click here for Stroboscope Accessories
PK2X-TBE Spare Xenon Flash Tube
PK2-HLT Padded-vinyl & leather belt-clip holster
PK2-PHONO Connection jack for external
trigger input signal
PK2-TRI Telescoping tripod
PK2-BNC External triggering cable; 6 ft. long;
1/8" male to BNC male connections
PK2-8M External triggering cable; 6 ft. long;
1/8" male to 1/8" male connections
PK2X-BAT Replacement Li-Ion Battery Pack
PK2X-AC-BC Replacement Universal Battery Charger (100-240 VAC)

Related Products

DT-TRI Mini Tripod for Tachometers and Stroboscopes
Click image for more info
Mini Tripod for Tachometers and Stroboscopes
- Extendable legs reach 7" in height (5" when retracted)

Specifications

Flash Range30 - 12,500 FPM
Flash Brightness1200 Lux (8"/20cm distance @ 4500 fpm)
Accuracy± 0.01% over entire range + 1 LSD
± 0.04 Hz
Resolution± 1 FPM over entire range
Display5-digit LCD
Display Update0.5 seconds
Flash Energy170 mJ
Flash Duration< 9 µs
Flash Tube Life200 million flashes (at 6,000 fpm)
Flash Color Temp6,000K - 6500K
External Trigger0-5 volt, DTL/TTL compatible 1/8" jack
Optional* Trigger Signal Output0-5 volt, DTL/TTL compatible 1/8" jack
* on PK2X-AC-OT Model Only
Overcharge ProtectionYes
CE CertificationYes
Power Required100 - 240V AC, 50-60 Hz
BatteryNone
Weight0.9 lbs (415 grams)
Housing MaterialHigh Impact ABS Plastic
Reflector MaterialAluminum
Tripod Mount1/4-20, female insert
Operating Temp.32 to 104° F (0 to 40° C)
Dimensions9-3/4" x 2-3/4" x 1-3/4"
240 x 65 x 40 mm
Warranty1 year

Downloads

Buy Now

Item Description Price
AC Powered Portable Stroboscope - Please contact us for pricing and availability.
$
AC Powered Portable Stroboscope with optional frequency output - Please contact us for pricing and availability.
$
Accessories
Xenon Flash Tube for PK2X Stroboscope (not for PK1 or PK2)
$60.00
Holster for PK2X Stroboscope, with belt clip
$35.00
Replacement Universal AC-Adapter/Charger (100-240 VAC)
$80.00
Connection jack for external trigger input signal
$2.00
Telescoping tripod
$60.00
Tripod for Tachometers and Stroboscopes
$35.00
External triggering cable; 6 ft. long; 1/8 in. male to BNC male connections
$45.00
External triggering cable; 6 ft. long; 1/8 in. male to 1/8 in. male connectionsExternal triggering cable; 6 ft. long; 1/8 in. male to 1/8 in. male con
$45.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
