FX2S Optic Fiber Stationary Tension Meter

Made in Germany

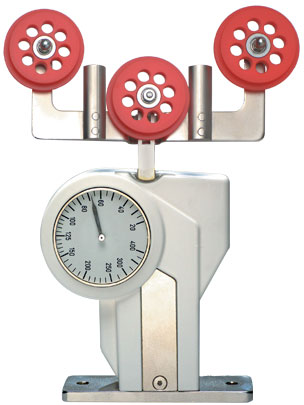

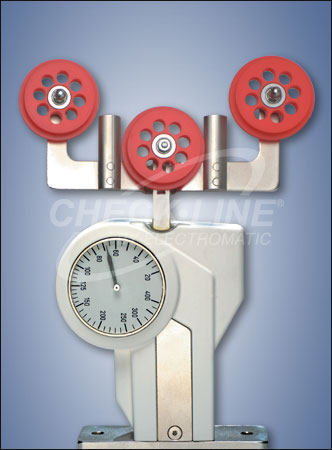

FX2S Optic Fiber Stationary Tension Meter
Click images to enlarge.
Large diameter rollers and 100 mm spacing between outer rollers minimize damage to optic fibers and similar materials that cannot withstand a small bending radius.

Built-in mounting holes permit fixed installation for continuous in-line use.

Features

  • Standard roller material is Delrin plastic or, optionally, aluminum (L).
  • Lightweight, low inertia 32 mm diameter rollers for speeds up to 2000 m/min or, optionally, up to 4000 m/min (K).
  • The analog display shows changing and fluctuating tensions fast and enables an optimal process adjustment
  • Large bending radius assures gentle handling of the material being measured
  • Built-in mounting holes permit fixed installation for continuous tension measurement
  • Special guides on the bracket assembly permit easy material acquisition

Tension Ranges

ModelRangeMeasuring Width Head
FX2S-5010-50 g140
FX2S-12020-120 g140
FX2S-40020-400 g140
FX2S-100050-1000 g140

Related Products

FX2 Optic Fiber Tension Meter
Click image for more info
FX2
Optic Fiber Tension Meter
- Large bending radius assures gentle handling of the material being measured

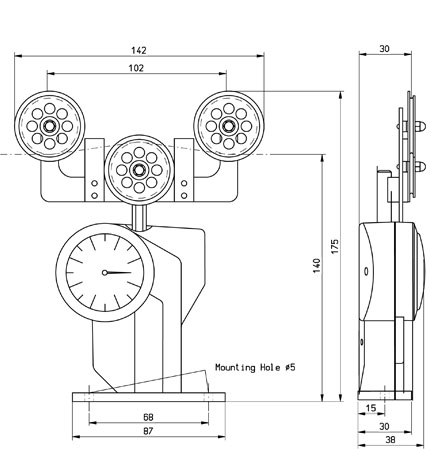

Dimensions

Guide Rollers

Order Code Line Speed
Vmax...m/min
Roller Material
Standard 4000 Plastic (PVC) red
Code L 4000 Hardcoated aluminium

Specifications

Accuracy±1 % full scale or ±1 graduation on scale
Diameter of Scale41 mm
Temperature Range10 - 45 ºC
Air humidity85 % RH, max
Housing materialDie-cast aluminium
Housing Dimensions127 x 85 x 45 mm (LxWxH)
