HCC-Easy Data Transfer & Analysis Program For Honigmann Tension Sensors

Made in Germany
Click images to enlarge.

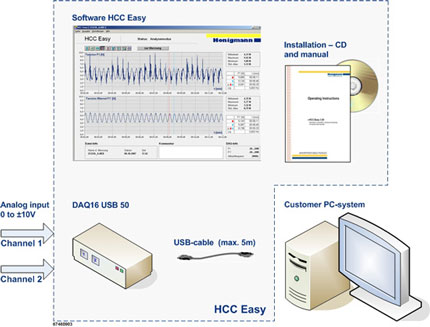

The HCC-Easy is a package for PC-based data acquisition of analog signals. This software was designed especially for tension measurement. Configuration and operation are very simple and clearly - EASY. The user can record, store and analyze tension signals without special previous knowledge.

This system is supplied with a USB connection box providing 16 bit A/D-conversion of the analog input signal, easily connected to any USB port on the PC or laptop.

Features

  • 2 force measuring channels ( -10 to +10V ), freely scalable
  • Real time display of measured values graphically and digitally, indicating the actual value in tension units
  • Standard statistics in analysis
  • Zoom, cursor and filter functions for analyzing measured data
  • Export data in ASCII format
  • Real Time statistics during recording

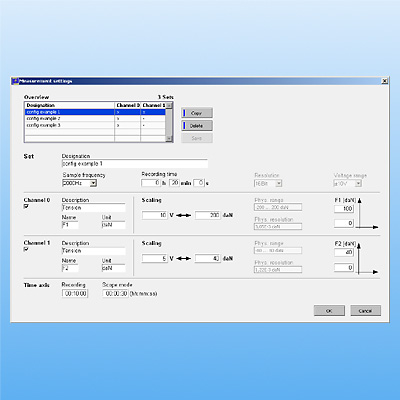

Data acquisition

  • 2 measuring channels ( -10 to +10V ), values displayed in physical unit by scaling
  • sample frequency selectable: 100Hz - 200Hz - 1kHz - 2kHz
  • unlimited measuring time
  • scope mode: measurement without storing, e.g. for installation or monitoring purposes

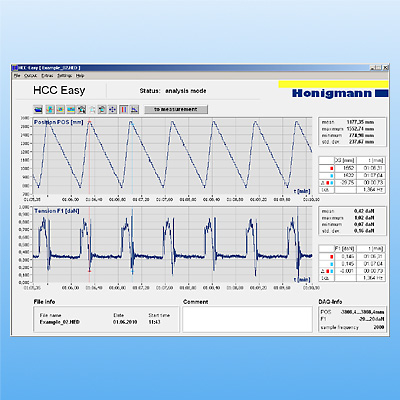

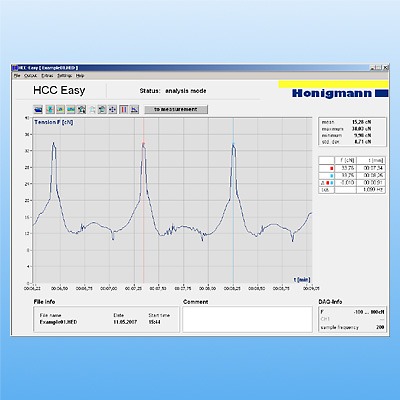

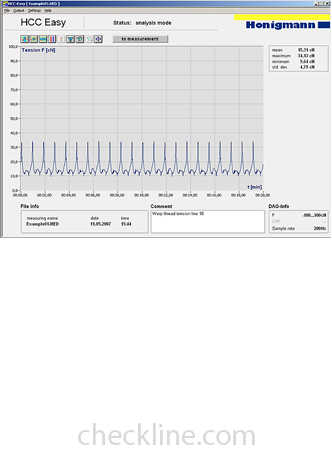

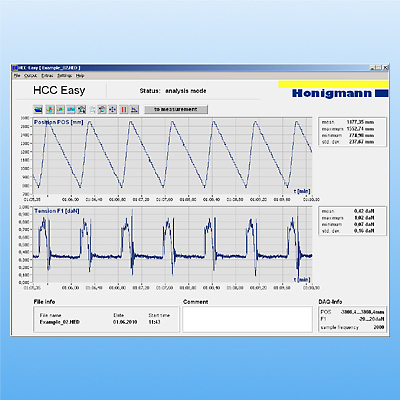

  • realtime display of measured values: graphically and digitally, indicating the actual value in tension units
  • realtime statistics during measurement as well as in analysis: mean value, minimum, maximum and standard deviation

Analysis of measured data

  • extensive zoom functions
  • cursor functions
  • signal filter, freely definable

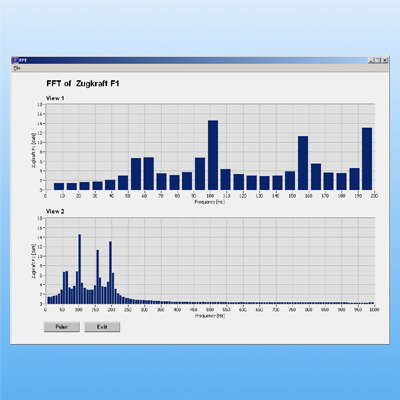

  • FFT: integrated frequency analysis

Documentation

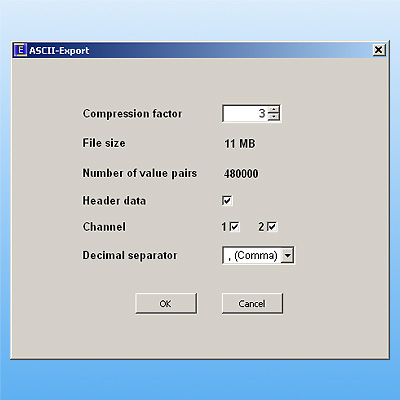

  • export data into ASCII format: serving the possibility of data compression for export of big measuring files
  • printout

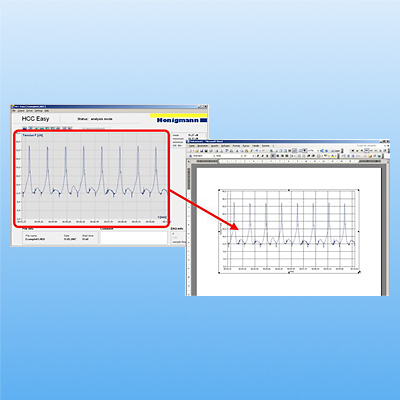

  • copy diagrams to clipboard
  • comment field for each measurement

General

  • selectable user interface english / german

Hardware DAQ 16 USB 50:

  • A/D-converter with 16 bit resolution
  • USB 2.0
  • connection box with screw terminals
  • set for mounting rail installation optional available
  • incl. USB connection cable
