FG-COMP Compression Plate

Compression Plates
Click images to enlarge.
4 Models Available
FG-M6COMP50U: 50mm dia., 100lb capacity, M6 thread
FG-M6COMP100U: 100mm dia., 500lb capacity, M6 thread
FG-M10COMP50U: 50mm dia., 100lb capacity, M10 thread
FG-M10COMP100U: 100mm dia., 500lb capacity, M10 thread

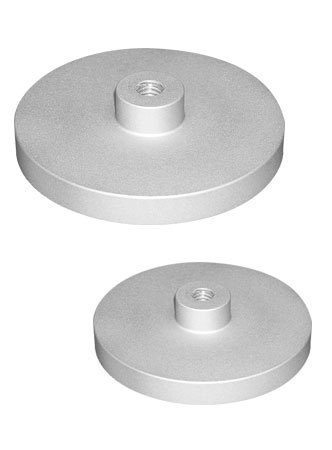

50 and 100MM steel compression plates for top load testing, large sample compression or crush testing, with polished finish. 50mm & 100mm plates available in M6 or M10 threading.

Grips and attachments sold individually (not in pairs).

Specifications

ModelSizeCapacityThread Connection
FG-M6COMP50U2" (50 mm)200 lb (100 kg)M6 thread
FG-M10COMP50U2" (50 mm)200 lb (100 kg)M10 thread
FG-M6COMP100U4" (100 mm)200 lb (100 kg)M6 thread
FG-M10COMP100U4" (100 mm)200 lb (100 kg)M10 thread

Dimensions

FG-M6COMP50U

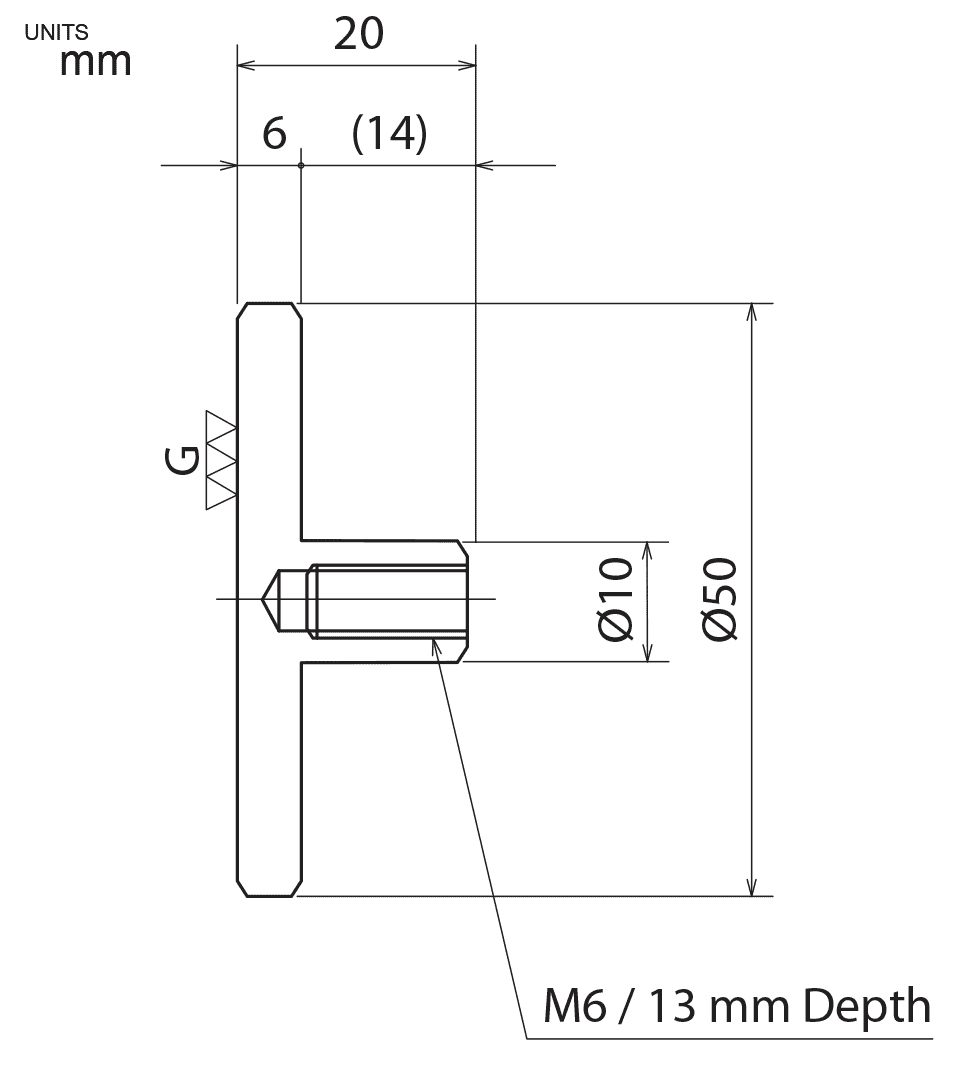

FG-M6COMP50U Compression Plate Dimensional Drawing

FG-M10COMP50U

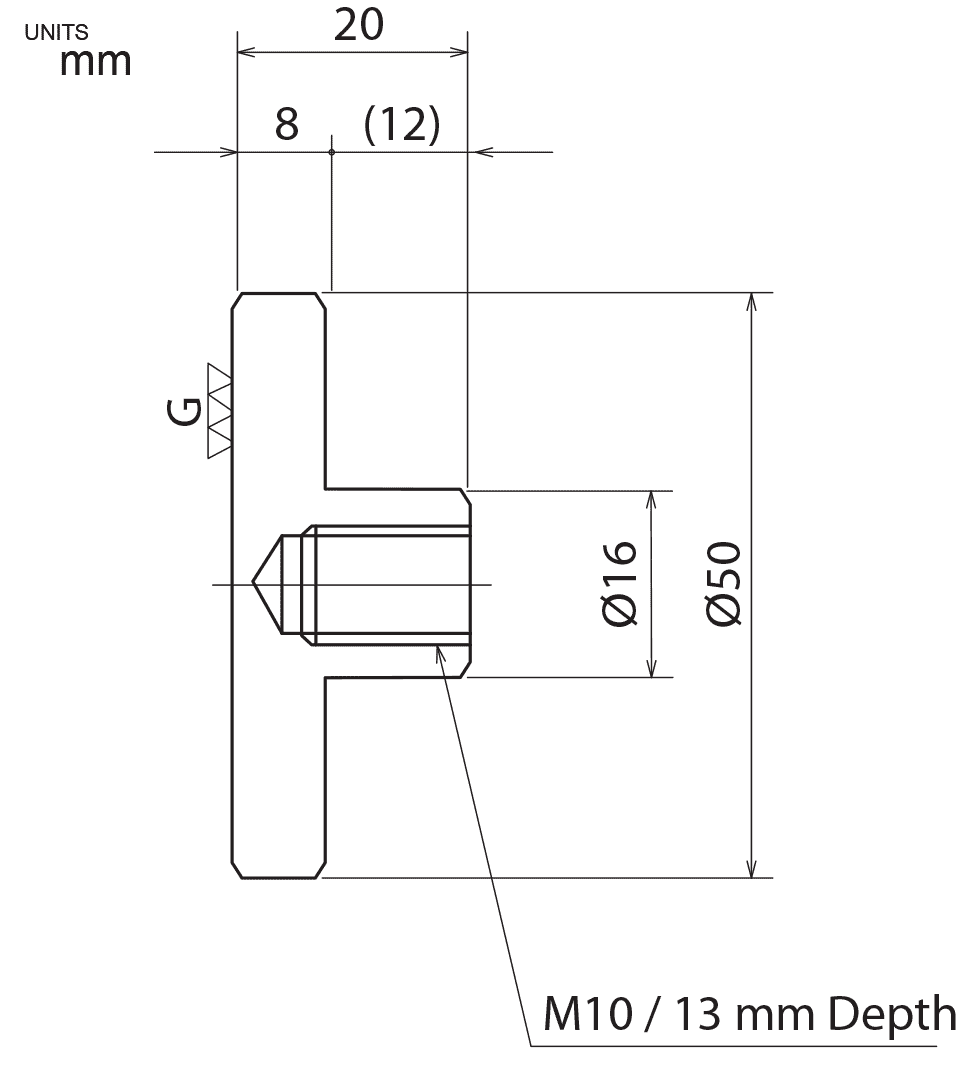

FG-M10COMP50U Compression Plate Dimensional Drawing

FG-M6COMP100U

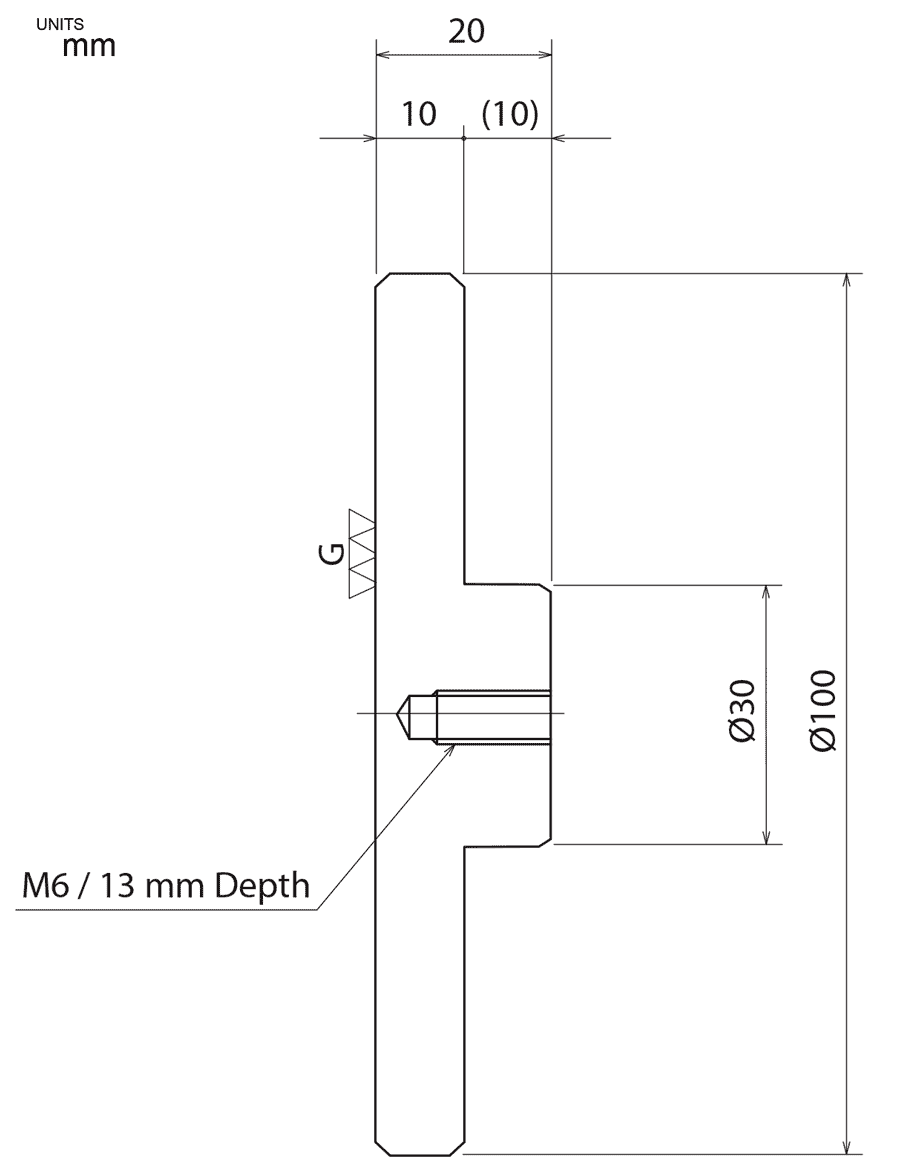

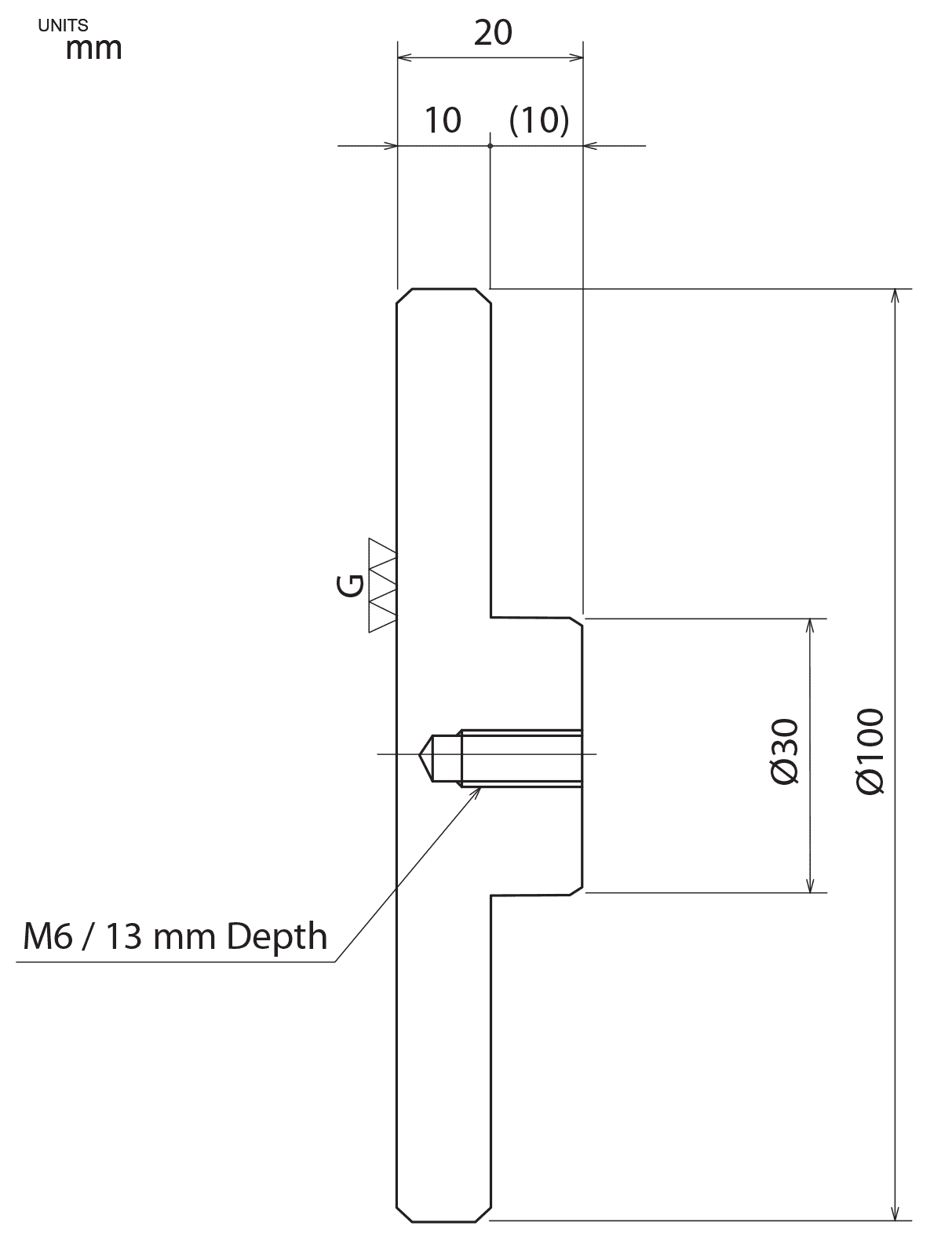

FG-M6COMP100U Compression Plate Dimensional Drawing

FG-M10COMP100U

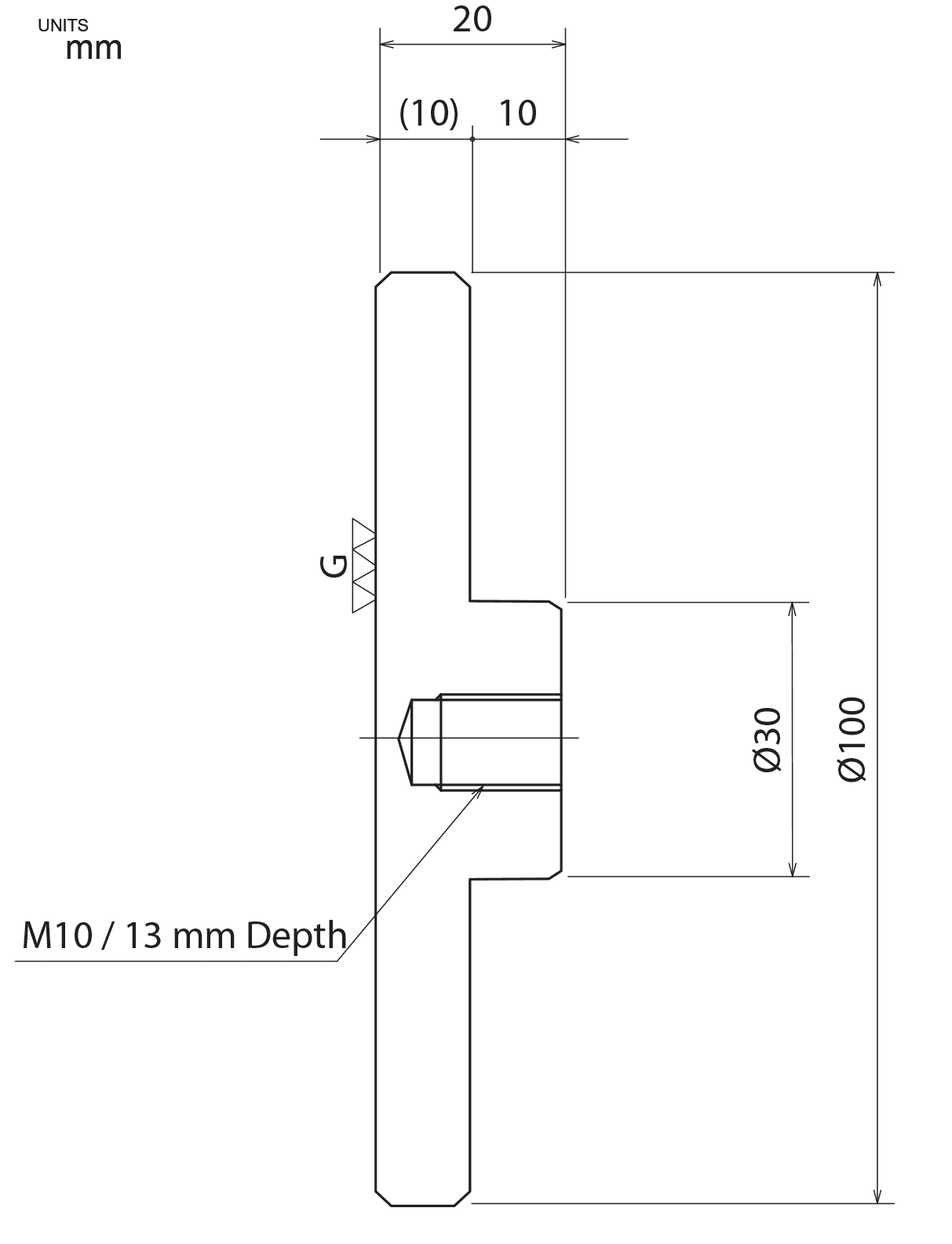

FG-M10COMP100U Compression Plate Dimensional Drawing

Buy Now

Item Description Price
2" (50 mm) Diameter Compression Plate, M6 Thread, 200 lb (100 kg) Max. Capacity
$70.00
4" (100 mm) Diameter Compression Plate, M6 Thread, 200 lb (100 kg) Max. Capacity
$130.00
2" (50 mm) Diameter Compression Plate, M10 Thread, 200 lb (100 kg) Max. Capacity
$75.00
4" (100 mm) Diameter Compression Plate, M10 Thread, 200 lb (100 kg) Max. Capacity
$135.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
