TKS Puncture Resistance Test Fixtures

Made in Japan

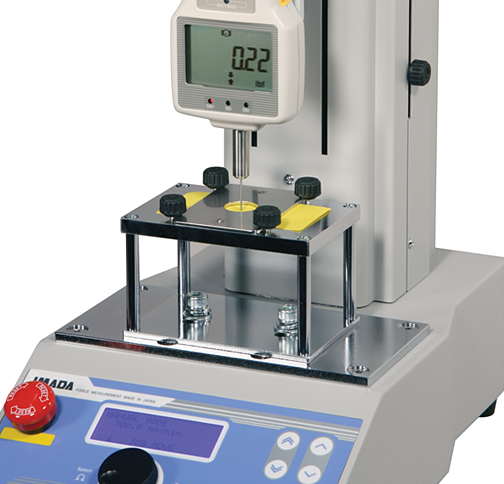

TKS Puncture Test Fixture
Click images to enlarge.
2 Models Available
TKS-20N: 4.4 lbf Capacity
TKS-250N: 55 lbf Capacity

The TKS uses a unique holding system to secure the sample in place and is ideal for testing the puncture strength of a variety of thin films such as liquid crystal film, auto battery cover films, thin aluminum, PET bottles, etc.

The TKS for low puncture force is ideal for testing the puncture resistance of thin films like retort pouches. The adjustable pin holder accommodates diameters 0~3.2mm and includes three 1mm pins.

Both fixtures can be used with manual lever-operated or wheel-operated test stands as well as motorized test stands.

*Force gauge and test stand sold separately

TKS-20N Puncture Test Fixture

Specifications

TKS-20N
Capacity4.4 lbf
Fixture Hole Diameter10 mm
Fixture Weight500g approx.
Pin Dimensions1mm dia. x 30mm
Pin PointSR0.5
Pin MaterialStainless Steel
Pin Weight0.2g approx.
Pin Vise Diameter0-3.2mm

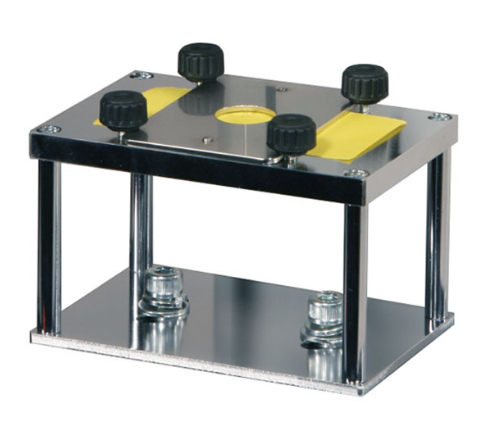

TKS-250N
Capacity55 lbf
Fixture Hole Diameter20 mm
Fixture Weight1050g approx.
Pin Dimensions1mm dia. x 20mm
Pin PointSR0.5
Pin MaterialStainless Steel
Pin Weight16g approx.
Pin Vise Diameter-

Buy Now

Item Description Price
Puncture Fixture, 20 N / 4.4 lbs. Test Stand and Force Gauge Sold Separately
$1,155.00
Puncture Fixture, 250 N / 50 lbs. Test Stand and Force Gauge Sold Separately
$1,617.00
