3 capacities, 50, 100, 200 grams / cN

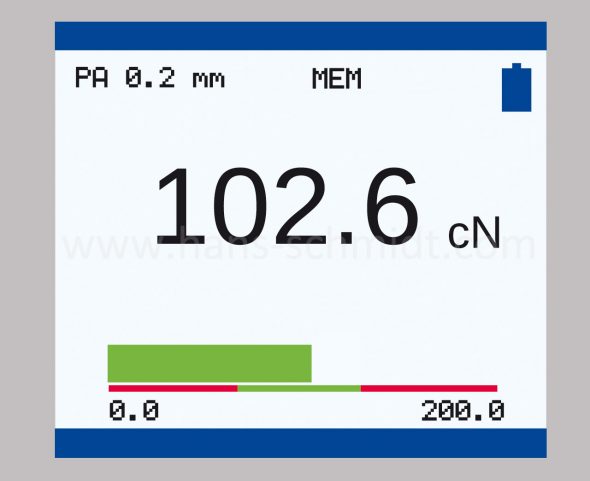

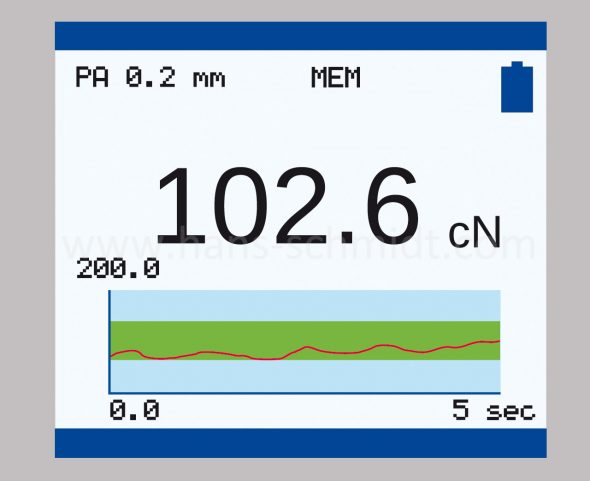

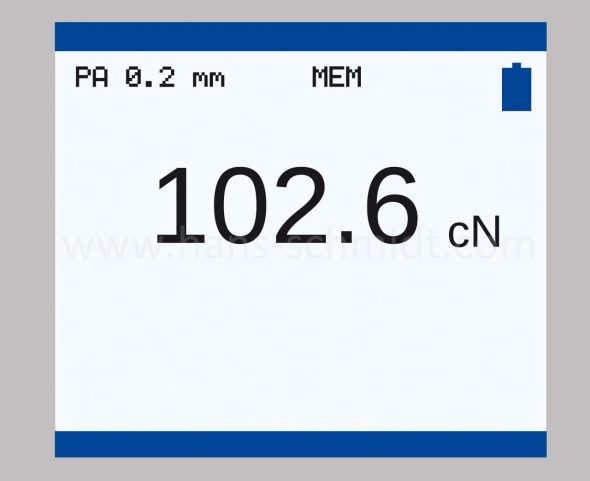

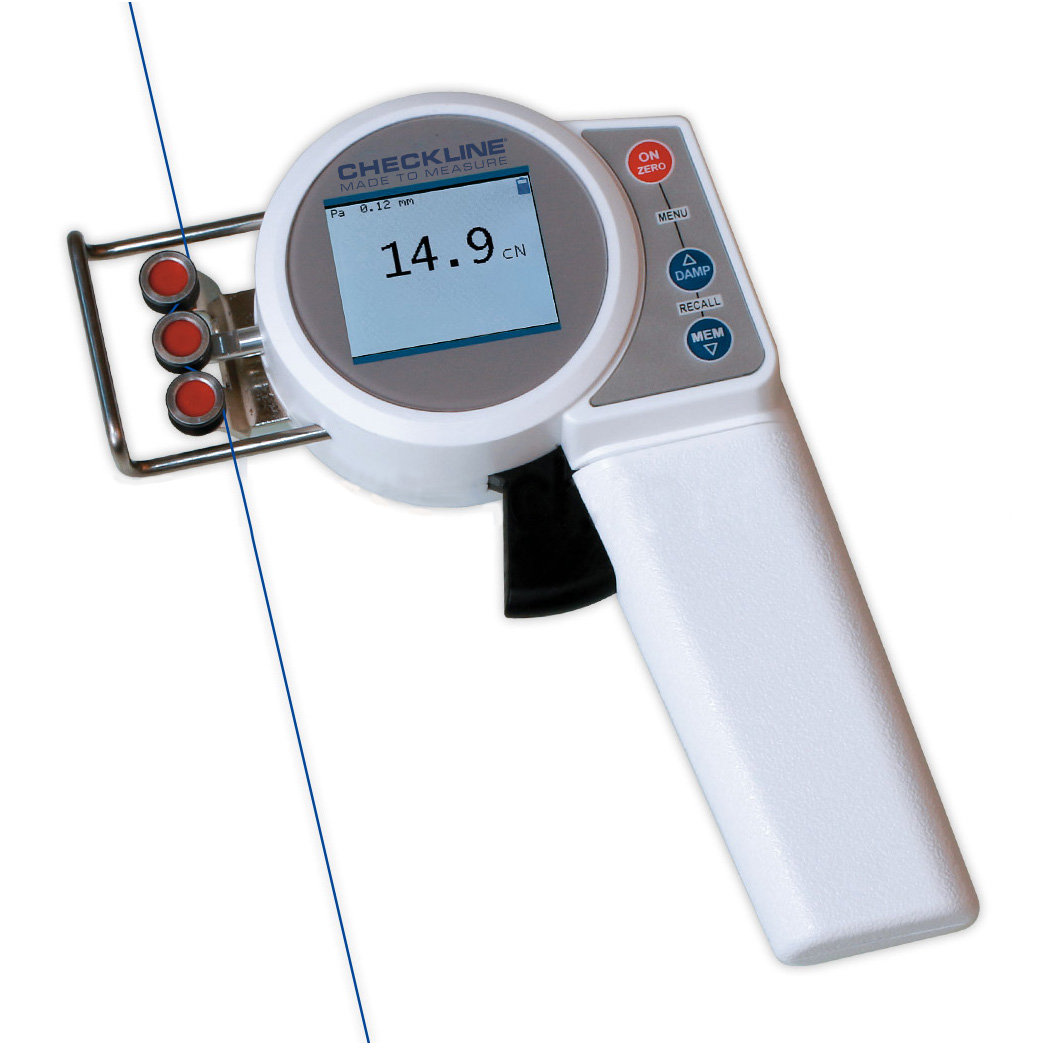

The Checkline ZEF Digital Tension Meter is designed for simple and accurate tension measurement on yarns, fibers, and fine wires. A trigger-operated roller shifting mechanism makes it easy to acquire the running material, a large backlit color display offers 3 display modes and auto-rotation to allow for easy viewing in any measuring orientation.

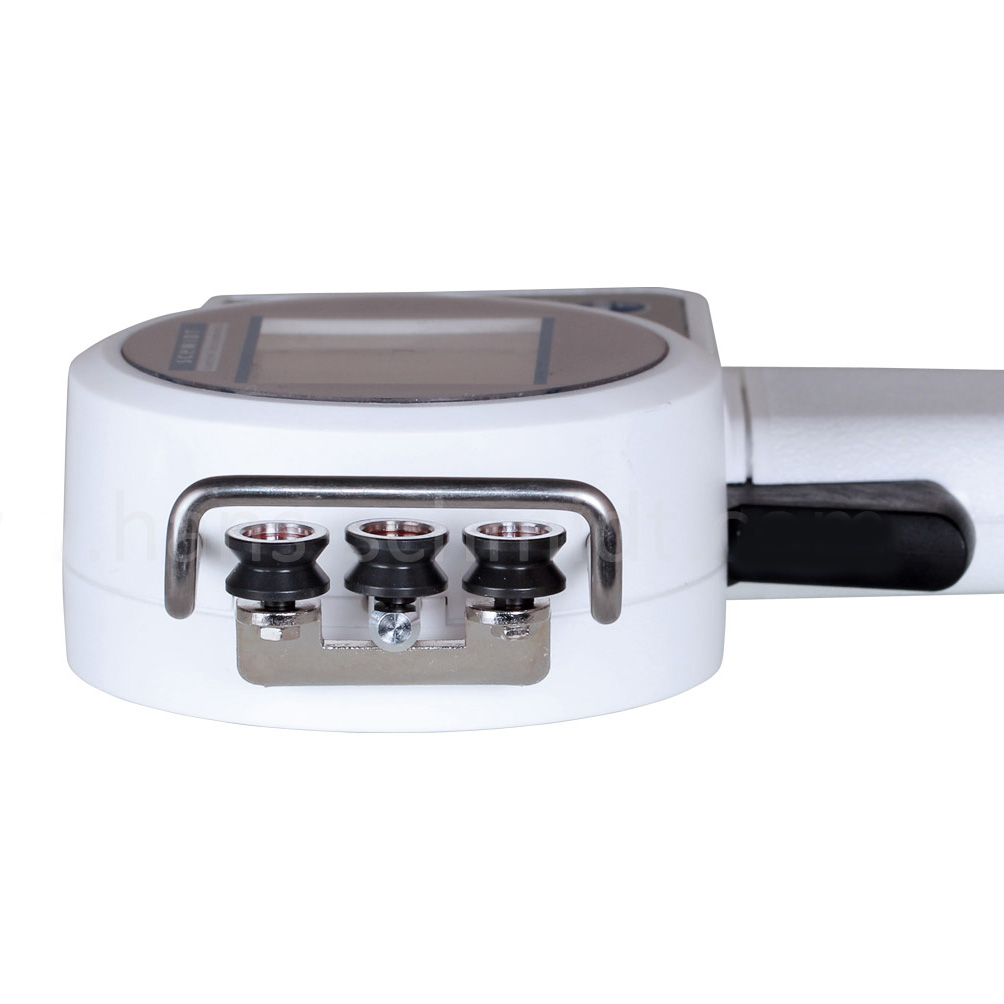

The ZEF features 3 ball-bearing mounted small diameter rollers for measuring in hard-to-access locations. Optional rollers are available for high-speed applications. The ZEF automatically "zeroes" the display using a special position sensor.
- Backlit TFT Color Display
- User-selectable units: cN, g, N and lb
- Storage of MIN, MAX, last reading, average, and standard deviation
- User-set MIN and MAX alarms with visual indicators
- Adjustable electronic damping for enhanced stability when tension fluctuates
- Automatic ZERO in all positions
- Storage for 3 Custom Material Calibrations
- CE approved
- NIST-Traceable Calibration optionally available
| Model | Capacity | Resolution | Measuring Head Width* | Cal Material** |
|---|---|---|---|---|
| ZEF-50 | 0.5 - 50.0 g / cN | 0.1 g / cN | 43 mm | PA: 0.12 mm Ø |
| ZEF-100 | 0.5 - 100.0 g / cN | 0.1 g / cN | 43 mm | PA: 0.12 mm Ø |
| ZEF-200 | 1.0 - 200.0 g / cN | 0.1 g / cN | 43 mm | PA: 0.12 mm Ø |
* Width of filament guide
** Suitable for 95 % of applications – PA = Polyamide Monofilament
Custom calibration with customer-supplied samples is optionally available. Inquire
** Suitable for 95 % of applications – PA = Polyamide Monofilament
Custom calibration with customer-supplied samples is optionally available. Inquire
| Code | Max Line Speed (mpm) | Material |
|---|---|---|
| Standard | 900 | Hard-coated aluminum |
| Code K | 2000 | Hard-coated aluminum |
| Code T | 450 | Plastic (POM) black |
| Code W | 450 | Nickel-plated steel |

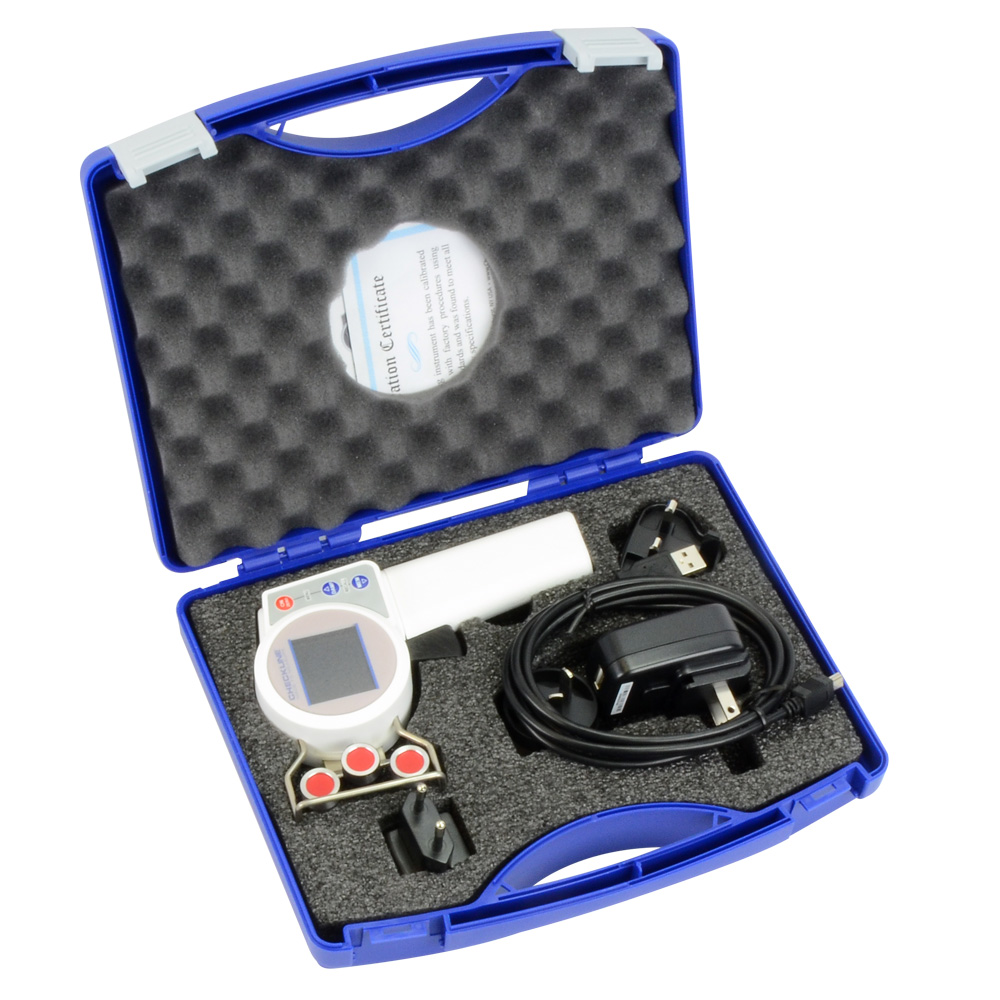

All models are supplied in a foam-fitted carrying case with a universal AC adapter / charger with interchangeable plug adapters.
| Accuracy | ±1% Full Scale, ±1 digit (Typical, ±0.5% Full Scale) |
| Over-Range Readings | 10% Full Scale, without accuracy guarantee |
| Overload Protection | 200% Full Scale |
| Sensing Roller Deflection | 0.5mm (maximum) |
| Display Type | Color-TFT 128 x 160 |
| Damping | User-Selected Electronic Damping (moving average) |
| Auto Zero | ±20% Full Scale |
| Temperature Coefficient | Less than ±0.01% FS/ °C |
| Auto Power Off | After 3 minutes of non-use |
| Battery Type | LiPo , rechargeable - PN E08710 |
| Battery Life | 25 Hours Continuous Use (Approx) |
| Rollers | See table below |
| Operating Temperature | 50 to 100° F (10 to 45° C) |
| Ambient Humidity | 85% RH, max |
| Housing Material | High-Impact Plastic (POM) |
| Dimensions | See Drawing in Downloads Section |
| Weight | 200 grams (Approx.) |
| Battery Charger | Via USB Mini Cable, Includes 100-240V AC adapter with 4 adapters (EU/USA/UK/AUS-NZ) |
