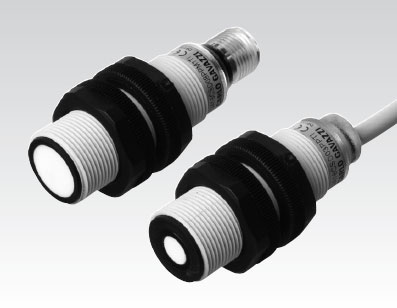

A family of diffuse ultrasonic
sensors with a sensing range
from 40-300 mm and 80-800
mm with a resolution as low
as 3.0 mm. The sensor contains
an analogue output that
is either 0-10 V or 4-20 mA.
This sensor is the ideal choice
for distance measurement,
level measurement, diameter
measurement or loop control.
Due to the use of microprocessor
control the digital
filtering makes the sensor
immune to most electromagnetic
interferences.
Download datasheet below for complete product specifications
- Cylindrical M18 PBT housing
- Sensing distance: 40-800 mm
- Outputs: 0-10 VDC or 4-20 mA
- Linearity error 1%
- Repeatability 1%
- Beam angle. ±7° or ±8°
- Protection: short-circuit and overvoltage
- Protection degree IP 67
- 2 m cable or M12 plug
| Item | Description | Price | ||
|---|---|---|---|---|
UA18CSD03AGTI | Diffuse UT Sensor with M18 housing, Cable Connector, 40-300 mm Op Dist, 4-20 mA Output | $213.00 |
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
