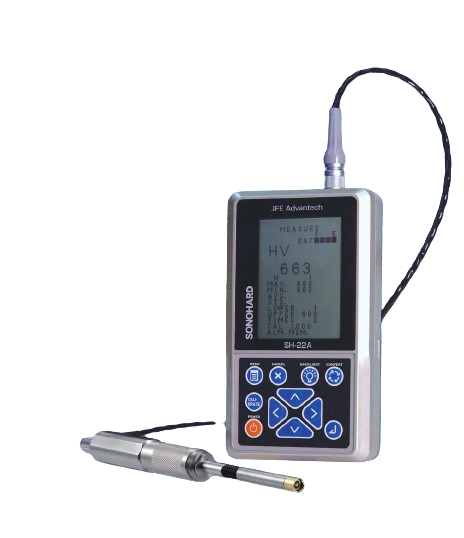

The SH-22A is designed for precise measurement of hardness in difficult-to-reach areas of compact parts, metal casts, gears, crankshafts, component parts, and more. It is ideal for the inspection and maintenance of large-scale structures, vehicles, ships, steel towers, bridges, and aircraft.
- Narrow / curved surface can be measured by small diameter probe (compared to the SH-21)
- Tiny indentation (Approx. 0.1mm)
- High durability, rated for over 1 million measurements
- Quickly gets measurements
- Measurement is not affected by material or mass
- Measurement can be done in all directions
- Free from periodic parts replacement by adoption of static loading method
- Static loading method with Vickers indenter
- Upper / Lower limit alarm setting available
| Measuring Indentor | Diamond indenter for Micro-Vickers (facing-to- surface angle of 136°) |
| Testing Force | SH-22A-E2: Approx 2kgf (roughly 20N) SH-22A-E1: Approx 1kgf (roughly 10N) SH-22A-E4: Approx 4kgf (roughly 40N) |
| Measuring Range | Rockwell hardness: HRC 10.0 - 70.0 Vickers hardness: HV 100 - 1000 Shore hardness: HS 20.0 - 100.0 Brinell hardness: HBW 85 - 550 |
| Resolution | 1HV, 0.1HRC, 0.1HS, 1HB, 1N/mm2 (tensile strength) |
| Repeatability | HRC : ± 1.0HRC HV : ± (3%rdg)HV HS : ± 1.0HS HB : ± (3%rdg)HB |
| Applicable test materials | Steel is the principle material, other metallic materials may also be measured by calibrating against a standard hardness test block. |
| Display | Digital display (LCD, 4 digits) with EL backlight |
| Temp limit | 0-50 C Ambient |
| Power | AC adapter(100 - 240V) or lithium ion rechargeable battery |
| Battery Life | 5 hours using backlight, 8 hours without backlight |
| Dimensions | Display: 97(W) x 50(D) x 170(H) mm Probe diameter: 20mm, length: 195mm |
| Weight | Display: approx. 400g (including battery) Probe and cable: approx. 400g |
| Carrying case dimensions | 489(W) x 200(D) x 132(H) mm |
| Output | RS-232C output used for data transmission or printing |
| Frequency | Motorized / manual switchover type approx 69-71kHz Manual type (optional) approx 38-40kHz |
| Conversion | HV, HRC, HS, HB, N/mm2 according to JIS B 7731, ASTM E 140, DIN 50150 |
| Warranty | 1 Year |
Display unit, Probe (with grip SH-P26), Probe cable (1.5m), Hardness standard block (approx. 55HRC) for SH-22A-E1 : around 600HV), standard attachment SH-P16, attachment for narrow area (round-shaped) SH-P17, AC adapter 100V to 240V (A10WN-09010I), recharger (MK-9512), Lithium ion battery (MK-9511) & Instruction manual.
