MiniTest-FH Magnetic Wall Thickness Gauge for Plastic, Glass, Titanium, and more...

Made in Germany

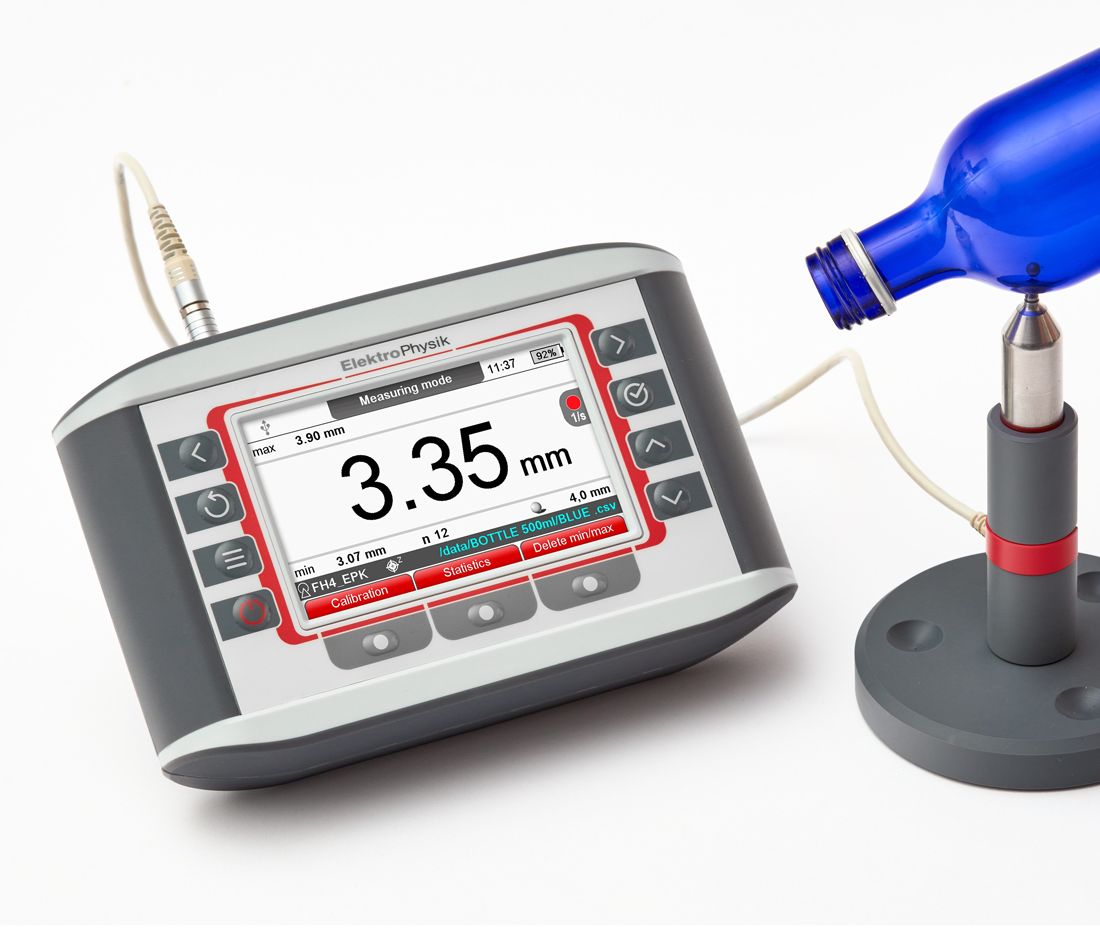

MiniTest FH Magnetic Wall Thickness Gauge
Click images to enlarge.

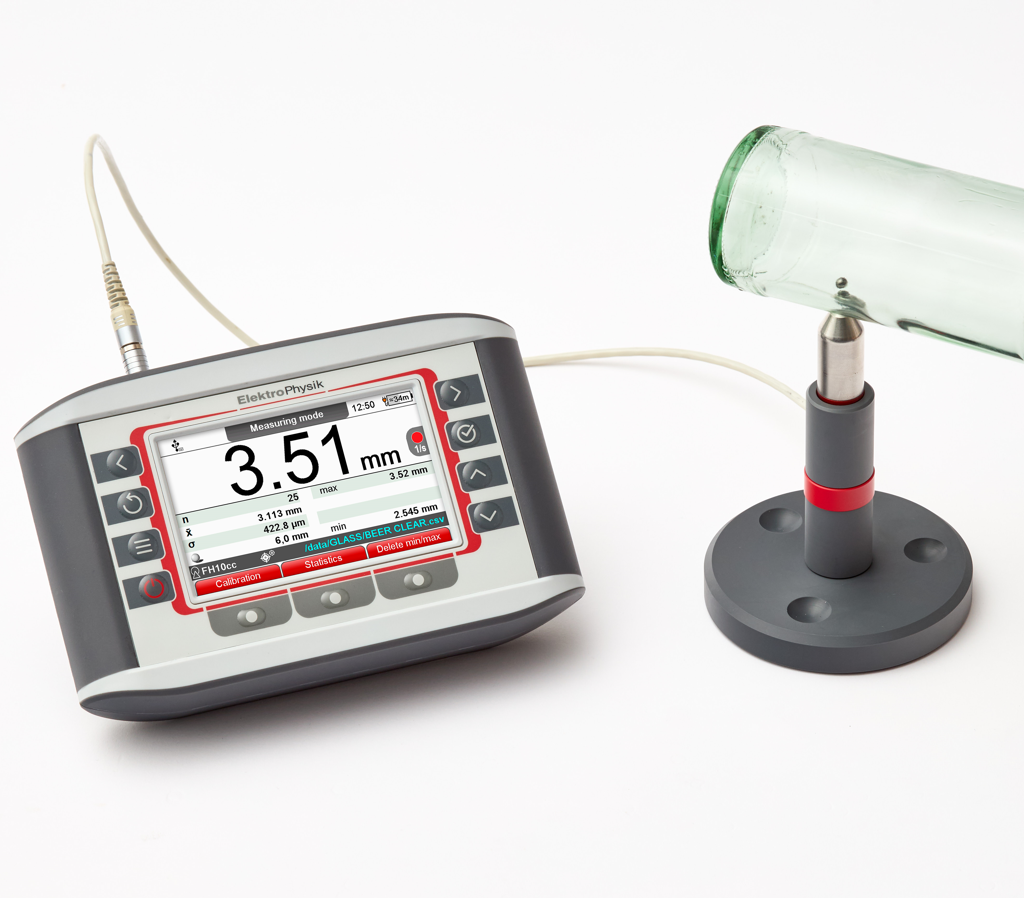

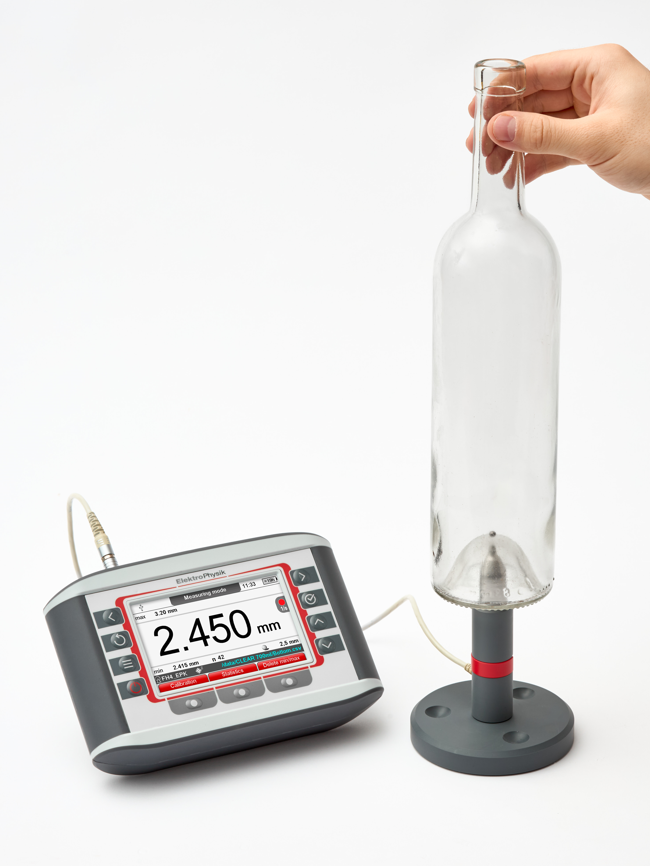

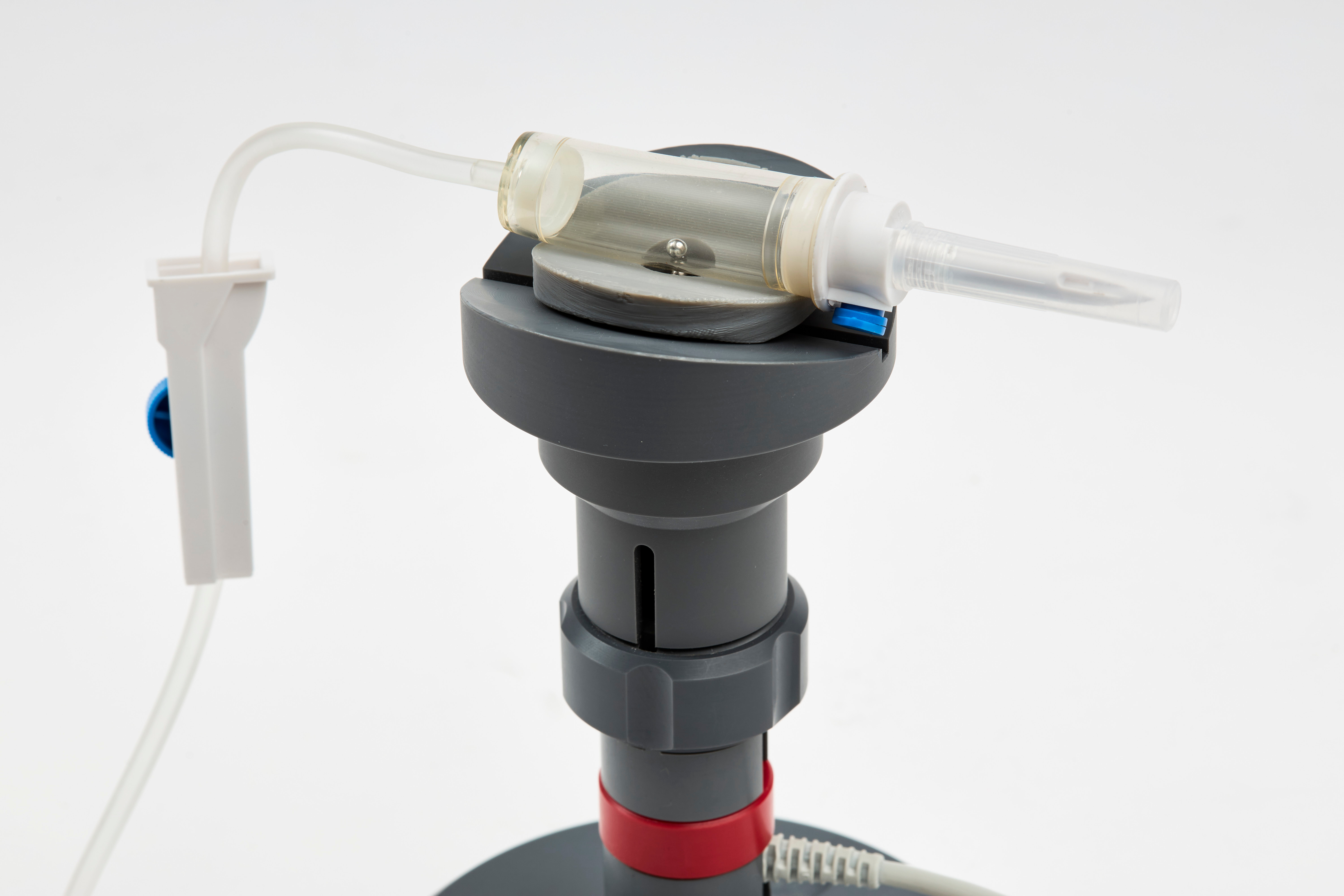

The MiniTest FH magnetic thickness gauge is designed for non-destructive measurements up to 24mm / 1". The MiniTest FH offers straightforward thickness measurements of non-magnetic materials such as plastic, glass, synthetics, non-magnetic metals, and composites. Components with complex geometries can also be measured with ease.

An intelligent SIDSP sensor enables the MiniTest FH to provide high-precision measurement and reproducibility while compensating for the influence of temperatures in the measuring environment and in the object being measured. A wide range of sensors allows to adapt to different applications and measuring tasks.

Thickness is determined by measuring the distance of a reference ball or wire to the sensor tip. The reference ball is attracted by a powerful magnet positioned directly behind the sensor tip. The steel target balls are treated according to a specialized ElektroPhysik procedure which allows reproducibility of test results of up to 0.5%.

Special features such as an automatic calibration function for zero calibration and direct transfer of readings into a spreadsheet or CAQ system complement the high user comfort provided by the intuitive menu operation.

Features

  • High precision wall thickness measurement up to 24 mm
  • Exceptional accuracy and repeatability through sensor-integrated digital signal processing (SIDSP®)
  • 2 million readings storable in more than 200 batches
  • Up to 20 readings per second
  • Wear-resistant sensors with hardened sensor tips
  • Direct data import into evaluation software
  • Bluetooth, USB and RS 232 C interfaces
  • IP 65 Water and Dust Resistance

Probe Ranges / Resolution

Probe Ball Diameter Ball Range
FH2
FH2-90
1.5 mm 0-0.6 mm
2.5 mm 0-1.3 mm
4.0 mm 0-2.3 mm
FH2-M
FH2-M-90
1.5 mm 0-0.6 mm
1.5 mm Magnetic 0-2.0 mm
2.5 mm 0-1.3 mm
3.0 mm Magnetic 0-4.5 mm
4.0 mm 0-2.3 mm
FH4
FH4-90
1.5 mm 0-2.0 mm
2.5 mm 0-3.5 mm
4.0 mm 0-6.0 mm
FH4-1
FH4-1-90
1.0 mm 0-1.3 mm
1.5 mm 0-2.0 mm
2.5 mm 0-3.5 mm
4.0 mm 0-6.0 mm
FH4-WIRE
FH4-WIRE-90
⌀ 0.66 mm Wire 0-7.0mm
⌀ 1.15 mm Wire 0-13.0 mm
FH4-M 1.5 mm 0-2.0 mm
1.5 mm Magnetic 0-5.0 mm
2.5 mm 0-3.5 mm
3.0 mm Magnetic 0-9.0 mm
4.0 mm 0-6.0 mm
FH10 2.5 mm 0-4.0 mm
4.0 mm 0-7.0 mm
6.0 mm 0-13.0 mm
FH10-M 2.5 mm 0-4.0 mm
4.0 mm 0-7.0 mm
4.0 mm Magnetic 0-16.0 mm
6.0 mm 0-13.0 mm
6.0 mm Magnetic 0-24.0 mm
Note 1: Includes additional calibration with 1mm diameter balls for use in small concave areas
Note 2: Use of Magnetic balls allows for extended measuring range

Kit Components

MiniTest FH KitThe MiniTest FH Gauge is supplied as a kit including, Gauge Body, USB Charger, USB cable, 8x NiMH AA rechargeable batteries (built-in), Magnetic Screwdriver, Quick-Start Manual, and Works Certificate in a foam-fitted carrying case.

Probes are required for measuring and are sold separately.

All Probes Probes are supplied with:
• Magnetic Probe Protection Sleeve and Cap

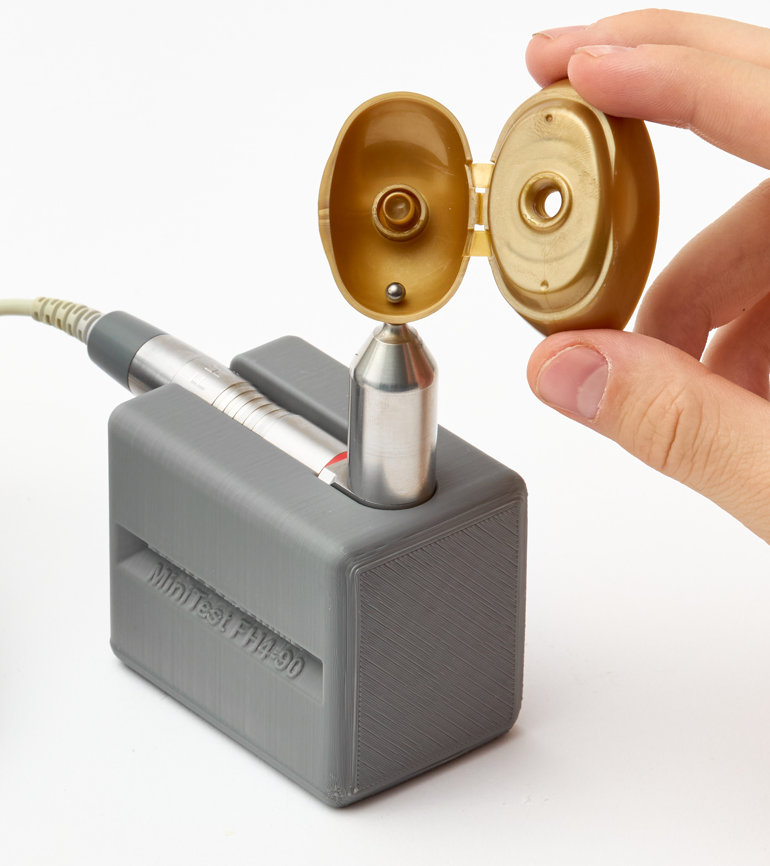

• Spring loaded probe holder / Table stand

The following accessories will be supplied based on the Probe purchased:

FH2 and FH2-90 Probe
• Non-Magnetic Balls: 1.5mm (100 pcs), 2.5mm (100 pcs), 4.0mm (50 pcs)
• Zero Calibration Caps, 3 Calibration Standards: 0.25mm, 0.5mm, 1.5mm

FH2-M & FH2-M-90 Probe
• Non-Magnetic Balls: 1.5mm (100 pcs), 2.5mm (100 pcs), 4.0mm (50 pcs)
• Magnetic Balls: 1.5mm (20 pcs), 3.0mm (20 pcs)
• Zero Calibration Caps, 3 Calibration Standards: 0.25mm, 0.5mm, 1.5mm

FH4 and FH4-90 Probe
• Non-Magnetic Balls: 1.5mm (100 pcs), 2.5mm (100 pcs), 4.0mm (50 pcs)
• Zero Calibration Caps, 3 Calibration Standards: 0.25mm, 1.0mm, 3.0mm

FH4-1MM Probe
• Non-Magnetic Balls: 1mm (100pcs), 1.5mm (100 pcs), 2.5mm (100 pcs), 4.0mm (50 pcs)
• Zero Calibration Caps, Calibration Standards: 0.15mm, 0.25mm, 1.0mm, 3.0mm

FH4-M and FH4-M-90 Probe
• Non-Magnetic Balls: 1.5mm (100 pcs), 2.5mm (100 pcs), 4.0mm (50 pcs)
• Magnetic Balls: 1.5mm (25 pcs), 3mm (20 pcs)
• Zero Calibration Caps, Calibration Standards: 0.25mm, 1.0mm, 3.0mm, 8mm

FH4 Wire and FH4-WIRE-90
• 20x Target Wires, 0.66mm dia
• 10x Target Wires, 1.15mm dia
• Zero Calibration Caps, 3 Calibration Standards: 1.5mm, 3.0mm, 8.0mm

FH10 Probe
• Non-Magnetic Balls: 2.5mm (100 pcs), 4.0mm (50 pcs), 6.0mm (25 pcs), 9.0mm (10 pcs)
• Zero Calibration Caps, Calibration Standards: 1.0mm, 3.0mm, 8mm

FH10-M Probe
• Non-Magnetic Balls: 2.5mm (100 pcs), 4.0mm (50 pcs), 6.0mm (25 pcs)
• Magnetic Balls: 4.0mm (20 pcs), 6.0mm (20 pcs), 9.0mm (10 pcs)
• Zero Calibration Caps, Calibration Standards: 2.5mm, 4.0mm, 6mm, 9mm

Specifications

Low range resolution0,1 μm (FH 4) 0,2 μm (FH10)
Repeatability< ± (1 μm + 0,5 % of reading)
Measuring principleMagnetostatic
Logging rate1, 2, 5, 10, 20 readings per second (selectable)
Data memory2,000,000 measured values in more than 200 measurement series
CalibrationFactory, Zero, Zero + up to 4 points
Measuring unitsmetric (μm, mm), imperial (mils, inch)

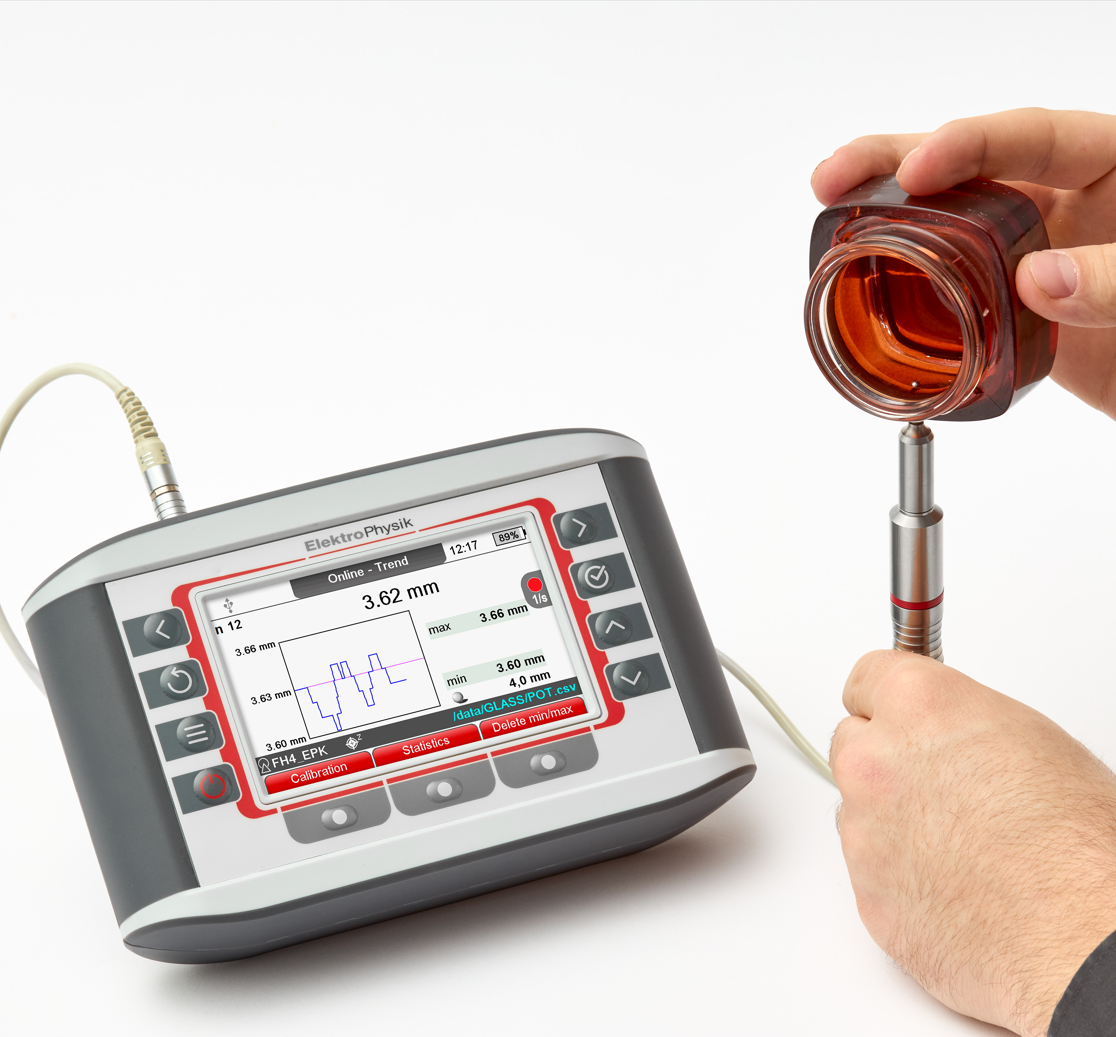

Statistical chartingNumeric, trend, and histogram
InterfacesUSB, Bluetooth, RS 232 C
Operating temperature-10 °C - 60 °C(Storage temperature: –20°C to +80°C)
Dimensions and weight195 mm x 120 mm x 50 mm / 775 g (device with batteries)
Power supply8 x NiMH AA rechargeable batteries chargeable via USB

Related Products

MiniTest FH Magnetic Thickness Gauge
Click image for more info

Downloads

Buy Now

Item Description Price
DISPLAY
MiniTest FH Magnetic Wall Thickness Gauge Body & Kit, Display Only, Probes Sold Separately
$6,145.00
Common Probes
80-174-0600
FH4 Magnetic Wall Thickness Probe, 0-6mm / 0.23" for use with MiniTest FH
$4,395.00
80-175-0900
FH10 Magnetic Wall Thickness Probe, 0-13mm / 0.51" for use with MiniTest FH
$4,870.00
Special Probes
80-178-0000
FH2 Magnetic Wall Thickness Probe, 0-2.3mm / 0.09" for use with MiniTest FH
$4,395.00
80-178-0200
FH2-M Magnetic Wall Thickness Probe, 0-4.5mm / 0.17" for use with MiniTest FH
$4,895.00
80-174-0300
FH4-1 Magnetic Wall Thickness Probe, 0-6mm / 0.23", for use with MiniTest FH
$4,600.00
80-174-0500
FH4-M Magnetic Wall Thickness Probe, 0-9mm / 0.35" for use with MiniTest FH
$4,895.00
80-174-0650
FH4cc Magnetic Wall Thickness Probe with Interchangeable Cap, 0-6mm / 0.23"
$4,395.00
80-174-0510
FH4cc-M Magnetic Wall Thickness Probe with Interchangeable Cap, 0-9mm / 0.35"
$4,895.00
80-175-0600
FH10-M Magnetic Wall Thickness Probe 0-24mm / 0.94" for use with MiniTest FH
$5,340.00
80-175-1400
FH10cc Magnetic Wall Thickness Probe with Interchangeable Cap, 0-13mm / 0.51"
$4,870.00
80-175-0601
FH10cc-M Magnetic Wall Thickness Probe with Interchangeable Cap, 0-24mm / 0.94"
$5,340.00

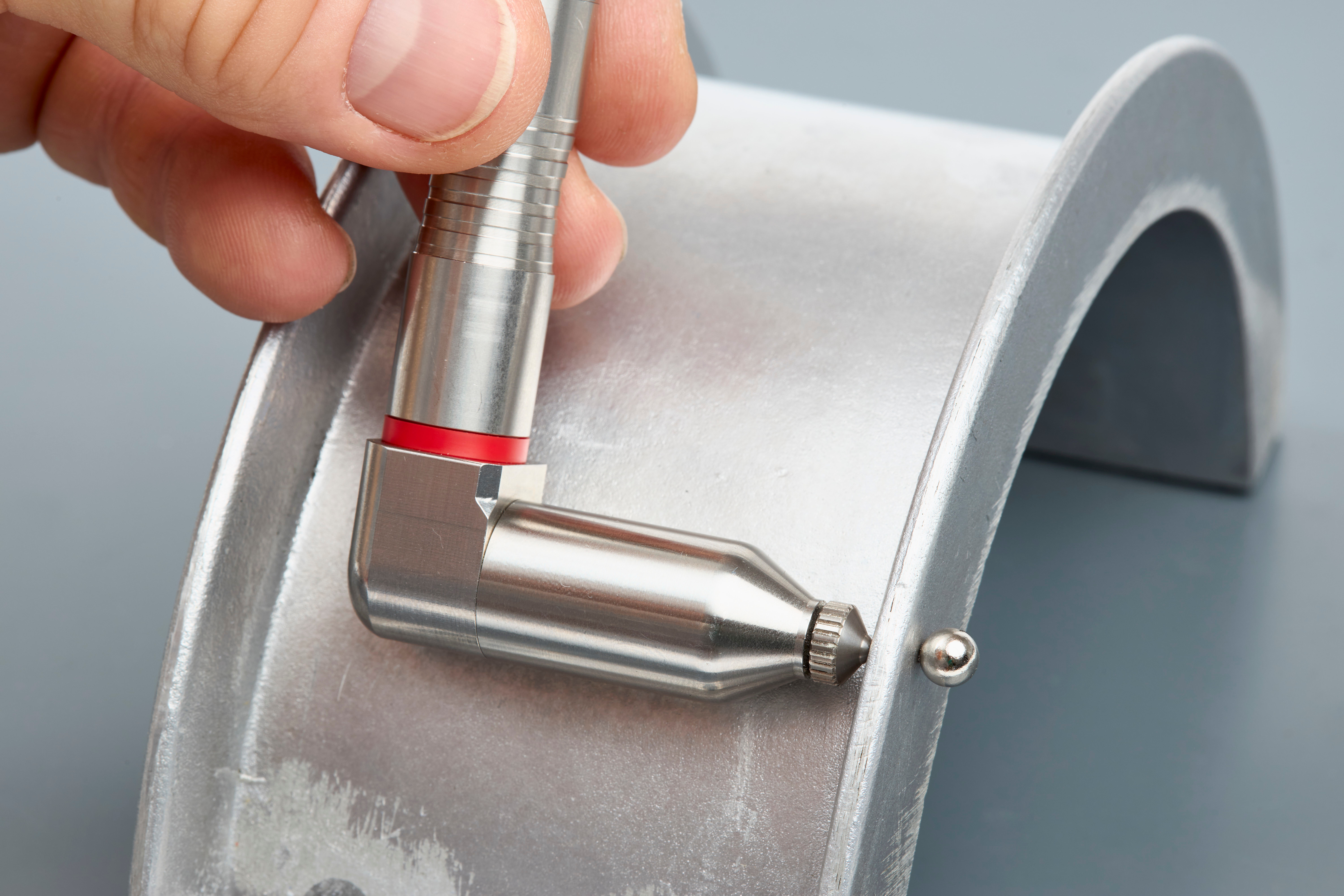

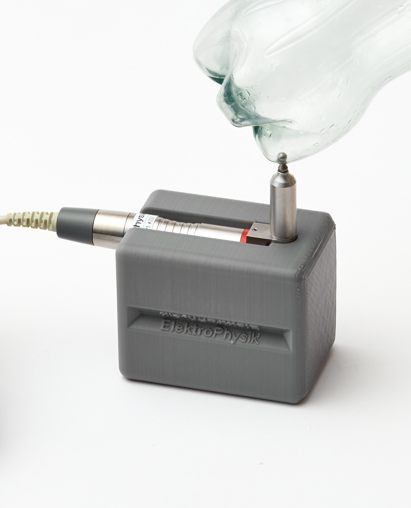

90 Degree Probes
80-178-0100
FH2-90 Magnetic Wall Thickness Probe, 0-2.3mm / 0.09" for use with MiniTest FH
$4,395.00
80-178-0300
FH2-M-90 Magnetic Wall Thickness Probe, 0-4.5mm / 0.17" for use with MiniTest FH
$4,895.00
80-174-1000
FH4-90 Magnetic Wall Thickness Probe, 0-6mm / 0.23" for use with MiniTest FH
$4,395.00
80-174-1100
FH4-1-90 Magnetic Wall Thickness Probe, 0-6mm / 0.23", for use with MiniTest FH
$4,600.00
80-174-1200
FH4-M-90 Magnetic Wall Thickness Probe, 0-9mm / 0.35" for use with MiniTest FH
$4,895.00
80-174-1050
FH4cc-90 Magnetic Wall Thickness Probe with Interchangeable Cap, 0-6mm / 0.23"
$4,395.00
80-174-1250
FH4cc-M-90 Magnetic Wall Thickness Probe with Interchangeable Cap, 0-9mm / 0.35"
$4,895.00

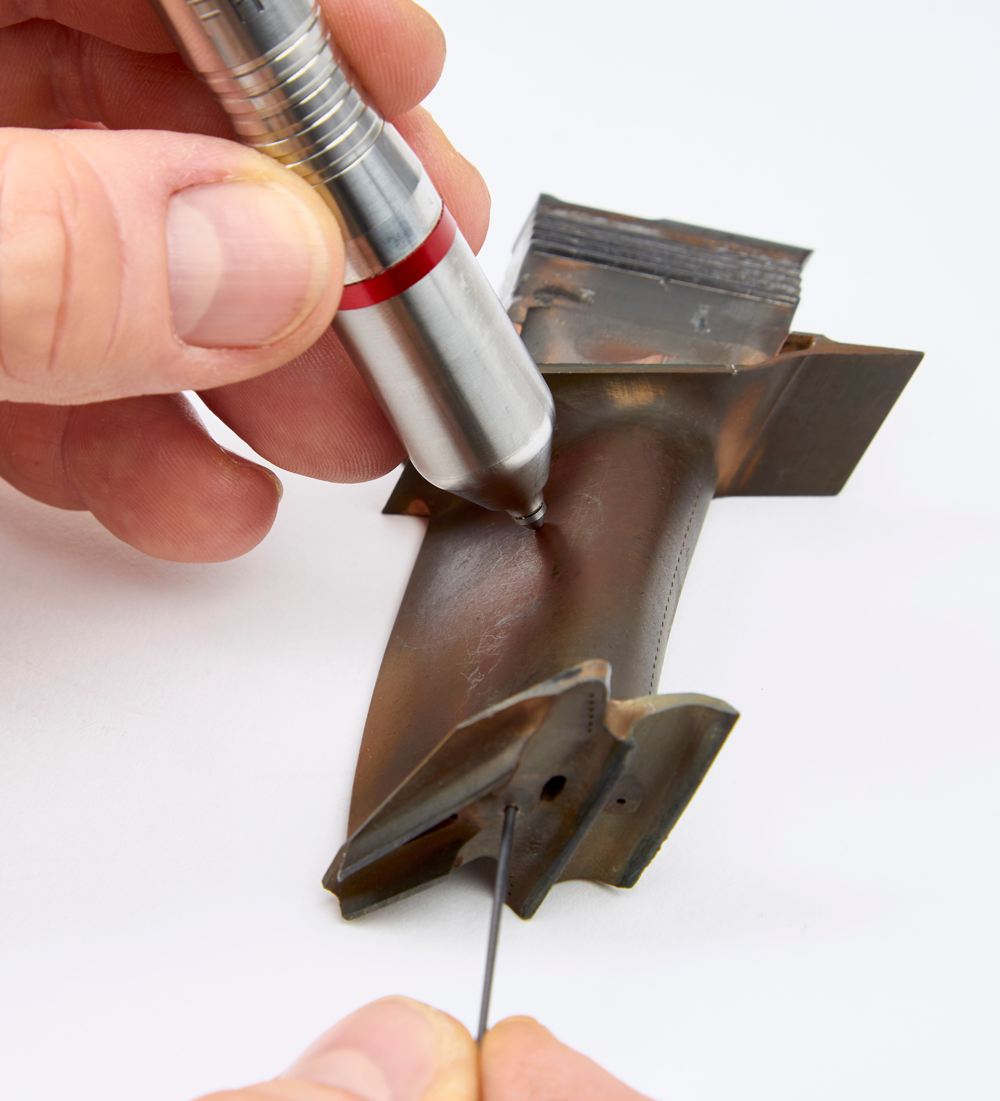

Wire Probes
80-174-0050
FH4-WIRE Magnetic Wall Thickness Probe, 0-12.7mm / 0.5" for use with MiniTest FH
$4,395.00
80-174-1300
FH4-WIRE-90 Magnetic Wall Thickness Probe, 0-12.7mm / 0.5" for use with MiniTest FH
$4,395.00
Accessories
82-190-0001
Foot Switch Accessory for FH Series Thickness Gauge (80-190-0000, only)
$505.00
82-174-0016
FH-BALLS-10, 1.0 mm diameter Non-Magnetic Steel Balls - 100 pieces
$50.00
82-174-0004
FH-BALLS-15, 1.5 mm diameter Non-Magnetic Steel Balls - 100 pieces
$50.00
82-175-0004
FH-BALLS-25, 2.5 mm diameter Non-Magnetic Steel Balls - 100 pieces
$50.00
82-175-0005
FH-BALLS-40, 4.0 mm diameter Non-Magnetic Steel Balls - 50 pieces
$55.00
82-175-0006
FH-BALLS-60, 6.0 mm diameter Non-Magnetic Steel Balls - 25 pieces
$65.00
82-175-0014
FH-BALLS-90, 9.0 mm diameter Non-Magnetic Steel Balls - 10 pieces
$50.00
82-174-0029
FH-BALLS-15M, 1.5 mm diameter Magnetic Steel Balls - 25 pieces
$95.00
82-174-0030
FH-BALLS-30M, 3.0 mm diameter Magnetic Steel Balls - 20 pieces
$105.00
82-175-0023
FH-BALLS-40M, 4.0 mm diameter Magnetic Steel Balls - 20 pieces
$105.00
82-175-0024
FH-BALLS-60M, 6.0 mm diameter Magnetic Steel Balls - 20 pieces
$110.00
82-174-0073
Target Wire 0.66 x 300 mm for use with FH4-WIRE Probe, Pack of 20x
$45.00
82-174-0074
Target Wire 1.15 x 300 mm for use with FH4-WIRE Probe, Pack of 20x
$45.00
