G1086 Coefficient Of Friction Fixture

Made in USA

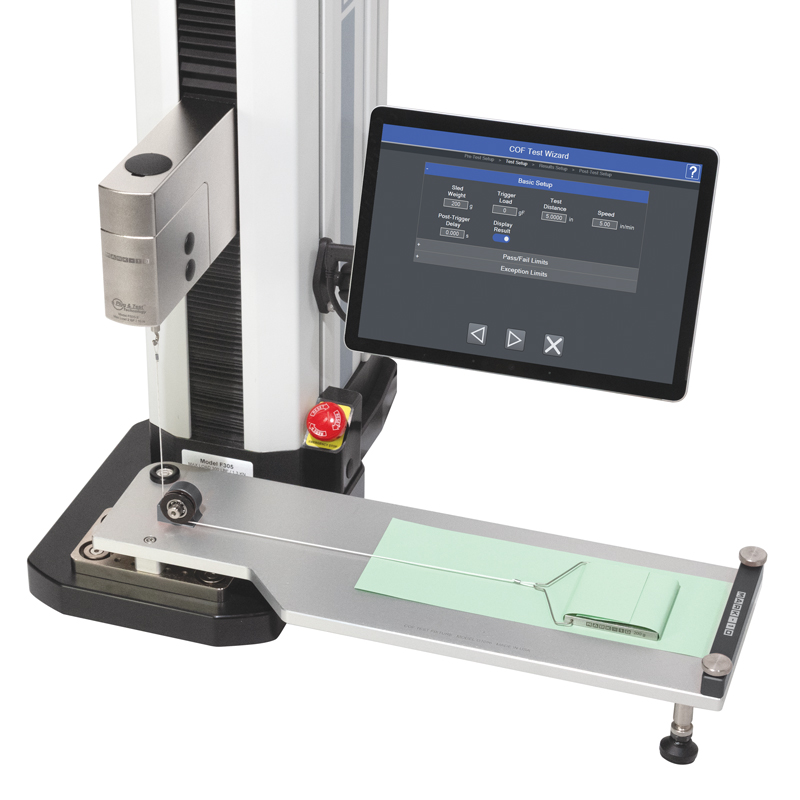

G1086 COF fixture is shown mounted to an ESM303 motorized test stand with M5-2-COF gauge.
Click images to enlarge.
The G1086 COF fixture is an integral part of a COF measurement system, typically including a motorized test stand and COF gauge. The G1086 can be used for a wide range of materials, ideal for conformance to ASTM D1894 and other relevant standards. Static and kinetic coefficients can be measured using the M5-2-COF gauge.

The fixture includes a large work table with sample clamp, level, 200 g sled, cable, and low-friction pulley. The fixture is directly compatible with the M5-2-COF gauge and ESM303 motorized test stand.

Coefficient of Friction Tester Video


  • Table surface material: 6061 T6 aluminum
  • Maximum sled travel: 10.5 in (265 mm)
  • Sled material: 303 SS
  • Mounts directly to the ESM301 motorized test stand
