DISCONTINUED ITEM
Available in 6 Ranges up to 110lbs

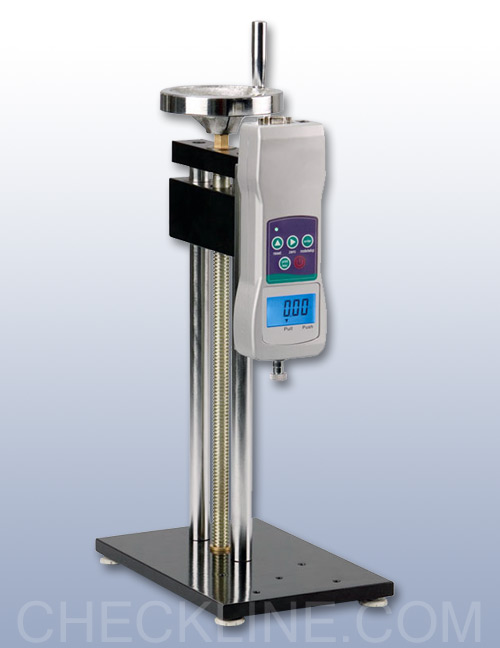

The FTS Force Test System includes the GL Digital Force Gauge and CT Mechanical Hand-Wheel Test Stand. The system is designed for precise, accurate measurements at an affordable price.

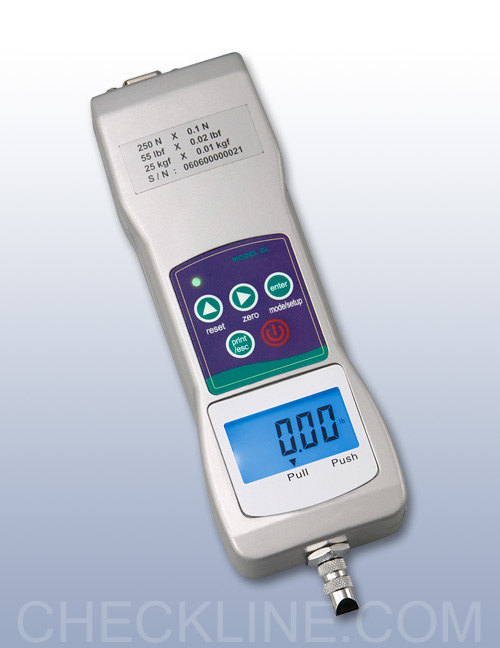

The GL force gauge features a rechargeable battery, serial output, backlit display, die-cast enclosure, carrying case, calibration cert and more.

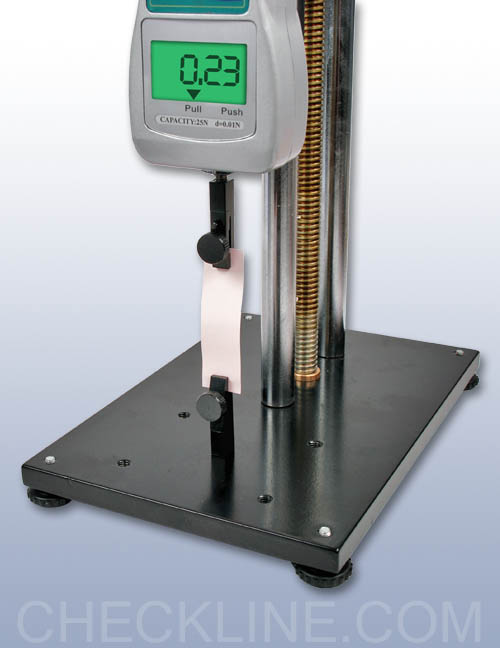

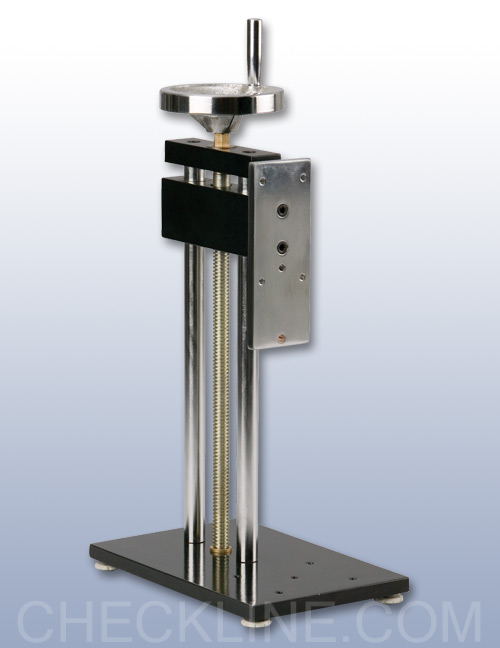

The CT Test Stand is an ideal complement to the GL Force Gauge to improve testing results. Also available are a range of grips and accessories to expand testing capability.
- Six capacity choices up to 110 lbs
- Rechargeable battery
- Accuracy to 0.4% of capacity
- Backlit display

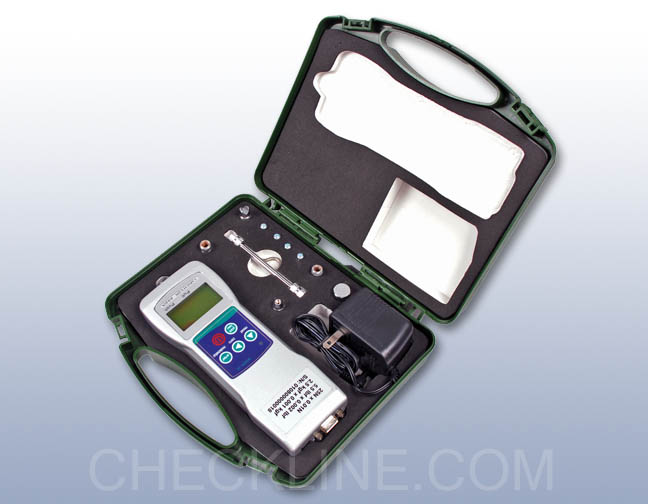

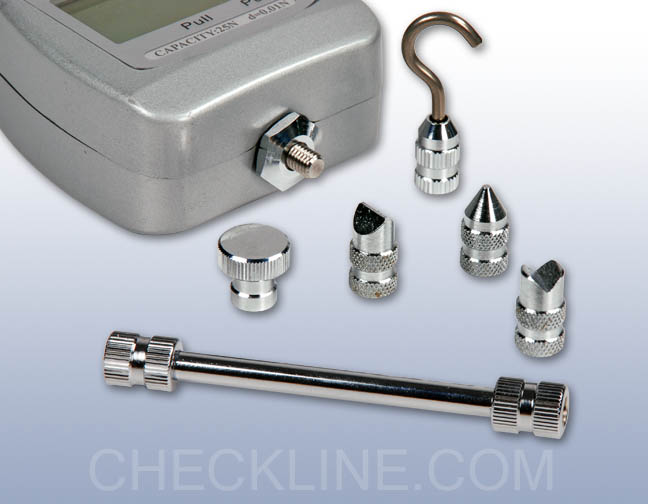

- Includes carry case, charger, six common fittings, test stand and calibration certificate

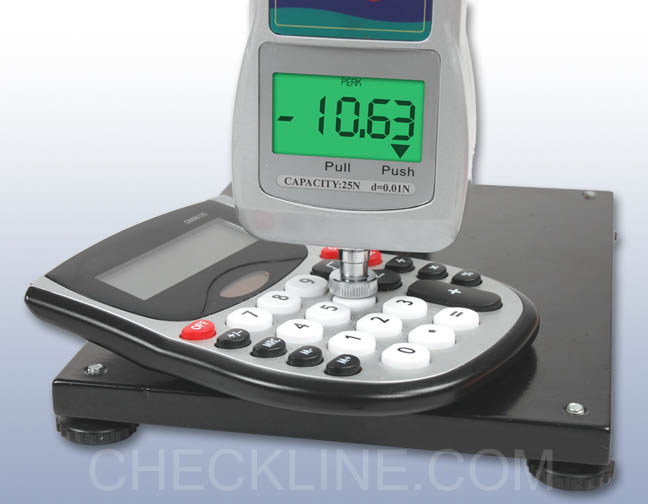

- Tension and compression measurement
- Everything needed for common testing
- One year warranty
| Model | Capacity | Resolution |
|---|---|---|
| FTS-5 | 5.5 lbf 2.5 kgf 25 N | 0.002 0.001 0.01 |
| FTS-11 | 11 lbf 5 kgf 50 N | 0.005 0.002 0.02 |
| FTS-22 | 22 lbf 10 kgf 100 N | 0.01 0.005 0.05 |
| FTS-55 | 55 lbf 25 kgf 250 N | 0.02 0.010 0.1 |
| FTS-110 | 110 lbf 50 kgf 500 N | 0.05 0.02 0.2 |
All Rangess have an M6 p1 Threaded Stud Sensor
| Accuracy | +/- 0.4% of capacity |
| Travel | 0.12in / 3mm per handle revolution |

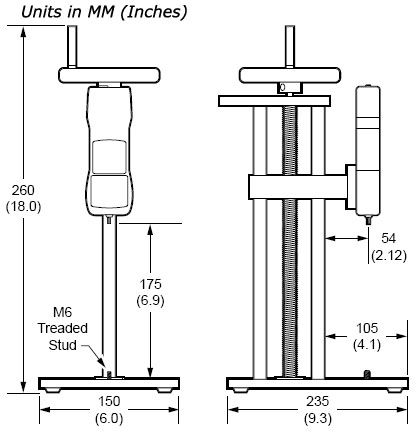

| Maximum clearance and travel | 12.5in (318mm) (With force gauge, but without grips or fixtures) |
| Overload protection | 120% minimum |
| Enclosure | Die cast metal |
| Power | Rechargeable battery or AC charger |

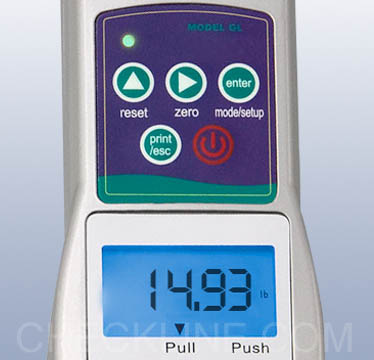

| Display type | 7 segment LCD, 4.5 digit with backlight |
| Data output | RS-232 |
| Operating temperature | 60º - 95ºF (15º - 35ºC) |
| Battery Life | 20 hours from a full charge |
| Warranty | 1 year |
