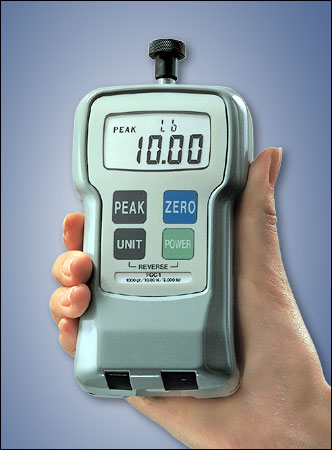

FGV DISCONTINUED - The FGV has been replace by the FGV-XY

Click images to enlarge.

Features

  • Accuracy ± 0.2%
  • User-selected units of Pounds, Kilograms or Newtons
  • Display can be reversed for inverted use
  • RS-232 output and a ± 1 VDC analog output
  • Display "real-time" or "peak" force
  • 200% overload protection
  • 2-Year Warranty

Force Ranges

ModelCapacityResolution
FGV-0.5X8 oz
200 g
2 N
0.01 oz
0.1 g
0.001 N
FGV-1X16 oz
500 g
5 N
0.01 oz
0.1 g
0.001 N
FGV-2X2 lb
1,000 g
10.00 N
0.001 lb
1 g
0.01 N
FGV-5X5 lb
2.000 Kg
20.00 N
0.001 lb
0.001 kg
0.01 N
FGV-10X10 lb
5.000 Kg
50.00 N
0.01 lb
0.001 kg
0.01 N
FGV-20X20 lb
10 Kg
100.0 N
0.01 lb
0.01 kg
0.1 N
FGV-50X50 lb
20.00 Kg
200.0N
0.01 lb
0.01 kg
0.1 N
FGV-100X100 lb
50.00 Kg
500.0 N
0.1 lb
0.01 kg
0.1 N

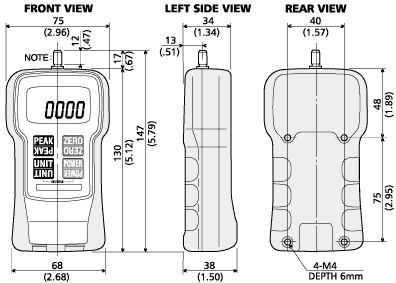

Dimensions

Note:
FGV-0.5X & FGV-1X - Shaft thread is M4
FGV-2X & Over - Shaft thread is M6

Complete Kit

Includes Force Gauge, AC Adapter/Charger, 7 Attachments;Hook, Flat Head, Notched Head, Hanger, cone head, extension rod and analog output cable in a foam fitted carrying case

Special Attachments

Specifications

Accuracy±0.2% full scale
Display4-Digit LCD, 12mm high. Reversible by the push of a button. Minus sign for tension
Display Update0.05, 0.1, 0.2, 0.3, 0.5, 1 sec
Sampling Rate1000 times per second
Overload Protection200% of full scale
PowerRechargeable Ni-Cad battery or AC through adapter/charger
Auto Power Shut-OffYes (not active if adapter/charge is in use)
Battery Life12 hours (when fully charged)
Recharge TimeApproximately 18 hours when fully discharged
Dimensions 5.1" L x 2.9" W x 1.5" H (130 mm x 75 mm x 38 mm)
Weight1 lb (450 g)
ApprovalsCE approved
OutputRS232C and ± 1 VDC (through a 12 bit D/A converter)
RS232C Output PortSelectable Baud Rate: 2400, 4800, 9600, 19,200 bps, Data length: 8 bits, Stop bit: 1 bit, Parity: None, Software flow control: none
