NO LONGER AVAILABLE - CONSIDER THE QBS Strobe AS AN ALTERNATIVE

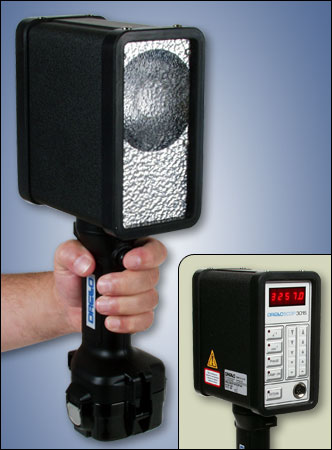

The Drello 3015 is a compact and powerful digital hand held stroboscope for speed measurement as well as observation. The 3015 features advanced operator controls for flash rate and phase shifting or can be operated externally by pulse generators. Large LED displays in FPM, Hz or degrees. With the speed independant phase shifter, effective with external control, you can shift the image in a range from 0 to 360°.
- Rugged light metal housing with protective rubber edge
- 2 Year Warranty
- Quick-Change 12V battery
- Optional RS232 Interface
- Optional Splash-proof housing for use in wet environments
- Includes NIST-Traceable Certification
- Ultra-bright 2,000 Lux light output
The Drello 3015 Stroboscope is supplied with the strobe, 1 quick-change battery, battery charger and connector for external trigger cable, or, optionally as a complete kit including a spare quick change battery (2 total), spare flash tube and rugged aluminum carrying case.
| Flash Range | 30 - 25,000 fpm 0.5 - 416 Hz |
| Flash Brightness | Approx. 2,000 Lux |
| Accuracy | 0.001% |
| Display | 5 digit LED, .4" (12mm) tall |
| Flash Tube | Xenon Quartz |
| Illuminated Area | Approx. 5.9" (150mm) at 1.5' (0.5m) |
| Flash Energy | Max. 0.47 Joules/flash, depending on flash rate |
| Flash Duration | approx. 10µs |
| Housing Protection | IP 50 Standard IP 64 Optional |
| Dimensions | 3.15" x 6.5" x 5.9" (80 x 165 x 150mm) head only |
| Weight | 4.7 lbs 3.1 lbs (without battery) |
| Battery Type | NiMH |
| Battery Capacity | 2.6 Amp hours |
| Operating Time | 1 - 2.5 hours depending on flash frequency |
| Charge Time | 2 - 3 hours |
| Battery Weight | 1.6 lbs |
