REPLACED BY JD-200-25

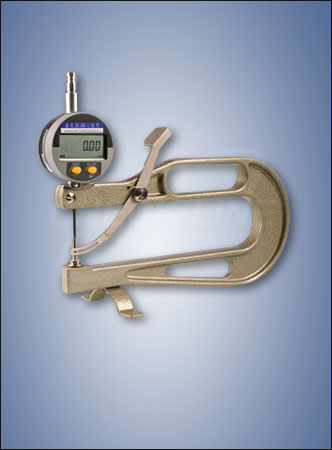

The digital thickness gauge serie has the benefit of an easy to read LCD display, combined with the highest accuracy. The user can select either to display thickness in mm or in inches.
The 200-JD-25 model is available with 5 different feelers, which can be found below. Measurement is done by a spring force. Opening by lifting device (lever) - self closing.
- Operating by lifting device - self closing
- Resolution 0.01 mm (0.001 inch)
- Includes swing-out foot for on-table operation
- Dial gauge model: Sylvac S229
- User selectable units mm and inch
- USB Data Output (requires optional cable, DCPRMD-USB)
- Easy to read LCD Display
- Optional traceable certificate available
| Model | Range | Resolution | Depth of Jaw |
|---|---|---|---|
| 200-JD-25 | 1 in 25 mm | 0.001 in 0.01 mm | 8 in (200 mm) |
To order, please indicate the desired feeler, e.g. 200-JD-25-B for gauge with feeler >b<. This means that NOT all feelers are included in the package!
 |
Feeler: A For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard |
 |
Feeler: B For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard |
 |
Feeler: C For soft leather, cardboard, paper, foils, etc. |
 |
Feeler: D For hard leather, plywood, fiberboard, etc. |
 |
Feeler: E For sheet metal, etc. |
Thickness gauge with battery and transport packing case.
| Resolution: | 0.01 mm / 0.001 inch |
| Measuring range: | 0 - 25 mm / 1 inch |
| Depth of jaws: | 200 mm |
| Display: | LCD 6 digit, 8.5 mm high |
| Measuring principle: | Capacitive (Sylvac) |
| Measuring pressure: | < 1.4 N |
| Feeler shape: | a,b,c,d or e |
| Lifting device: | Operating by lifting device - self closing |
| Data output: | RS 232, optical coupling |
| Power supply: | Battery, 3 V Lithium, CR 2032 |
| Temperature range: | 10-45°C |
| Weight, net: | 700 g |
