136-3E Wire/Cable Tension Meter
(for wires anchored at both ends)

Made in Germany

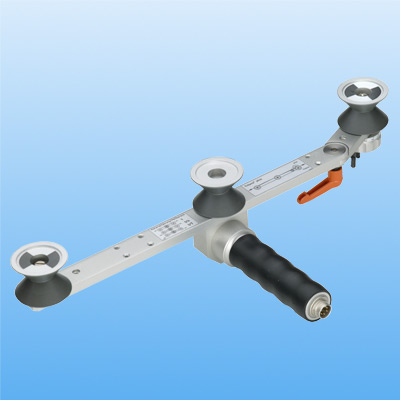

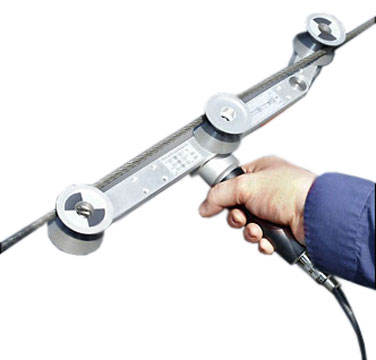

136-3E Wire/Cable Tension Meter
Click images to enlarge.
5 Ranges, up 1000lbs / 500 Kg / 5000N
For Wire Diameters up to 0.590" / 15mm

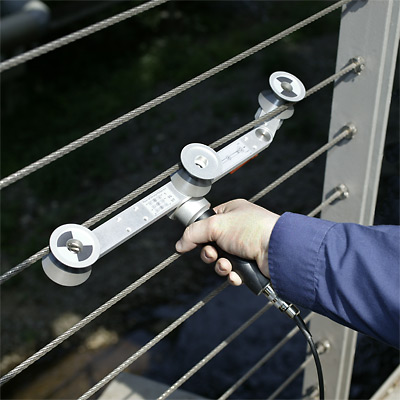

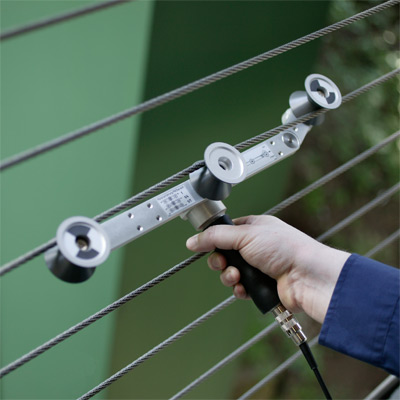

Designed for measuring wires & cables that are anchored/fixed at both ends (closed system) such as guy wires, support cables, tethers and more. Also commonly used on Kevlar, fiberglass and other hi-strength materials when used in a similar applications.

The 136-3E employs a unique roller configuration and measurement scheme to minimize the deflection of the wire/cable. The total wrap angle of the material over the center sensing roller is 3 degrees eliminating all measurement errors!

No other company or product in the world can make this claim!

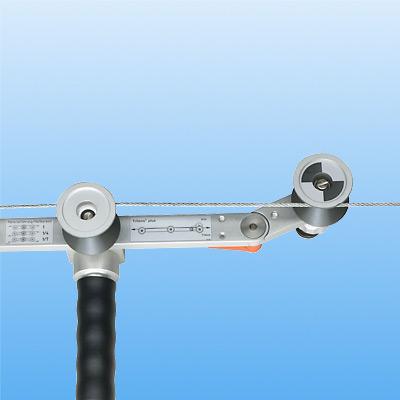

The material threading pattern (refer to illustration below) insures easy material acquisition and good tactile feedback allowing for excellent repeatability between measurements as well as between different users.

Precision ball-bearing rollers are used to eliminate any error caused by friction. These rollers are mounted on a large mounting plate properly spaced to remove the negative influence normally caused by the inherent rigidity of wires and cable up to 15 mm in diameter (0.590").

Diameter Compensation Adjustment

The 136-3E is fitted with an exclusive mechanical compensation which adjusts the measuring geometry to insure optimal accuracy regardless of the diameter of the material to be measured up to 15mm, max.

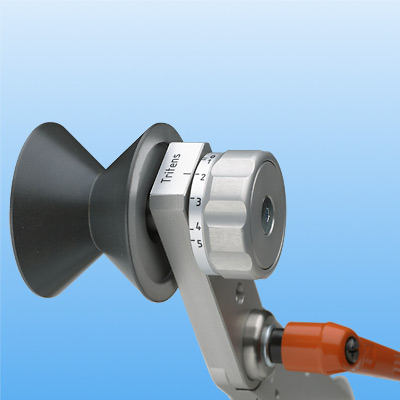

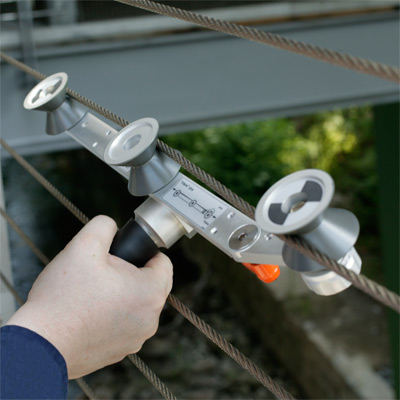

It consists of an calibrated rotary dial fitted to the rear-side of the right outer roller. The user simply rotates the dial until the numeric value on the dial is set to the actual wire diameter & then is locked in position. To change for a larger or smaller diameter, unlock and dial to new value. Simple, quick and effective!

Features

  • Minimal material deflection eliminates measurement errors
  • Wear-resistant, ball-bearing guide rollers eliminate errors caused by friction
  • Built-in material diameter compensation for error-free measurements of samples up to 15 mm (0.590")
  • Splashproof version of sensor & indicator is offered for use in wet environments (in rain or near splashing water)

Tension Ranges

ModelRange
1363E-10LB-V0-10 Lb
0-5 Kg
0-50 N
1363E-100LB-V0-100
0-50 Kg
0-500 N
1363E-200LB-V0-200 Lb
0-100 Kg
0-1000 N
1363E-500LB-V0-500 Lb
0-250 Kg
0-2500 N
1363E-1000LB-V0-1000 Lb
0-500 Kg
0-5000 N

Related Products

Click image for more info
Digital Tension Indicator with Built-In Amplifier
- Convenient one-hand operation
- Tension values can scaled to a wide variety of engineering units
- Automatic zero setting and Hold function with slide-switch
- Averaging Mode (0.5 sec interval)

Specifications

Accuracy± 1.5% Full Scale or better
Outer Roller Spacing (c:c)370 mm
Wrap Angle3 Degrees
Additional Length Effect0.12 mm
Mechanical Diameter Compensationup to 15 mm, max
Guide RollersV-Grooved, 47/21 mm (OD/Root Diameter)
Roller MaterialAluminum with Hardcoat Anodize (Hardened Steel, optional)
Overload Protection200% +
Calibration CertificateOptional
