6000FJS Series PosiTector® 6000 Coating Thickness Gauge for Thick Coatings

Made in USA
Click images to enlarge.

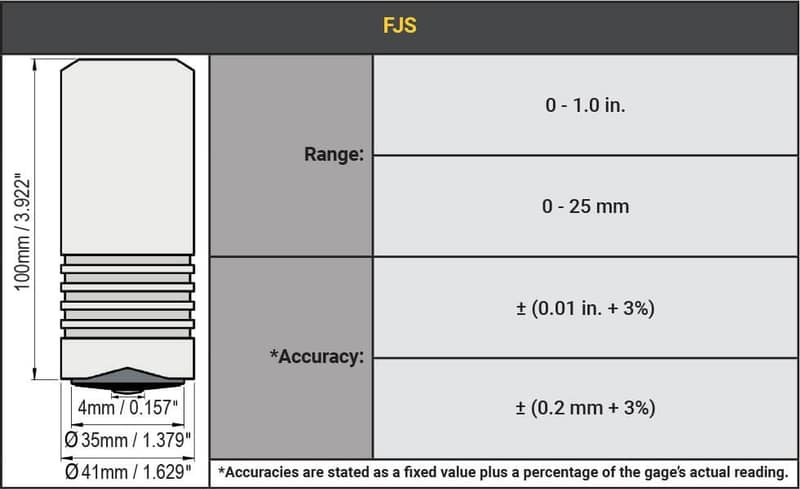

Range: 0 - 1.00 inches (25.4 mm)
Resolution: 0.01 inches / 0.2 mm
Models: 6000-FJS1, 6000-FJS3

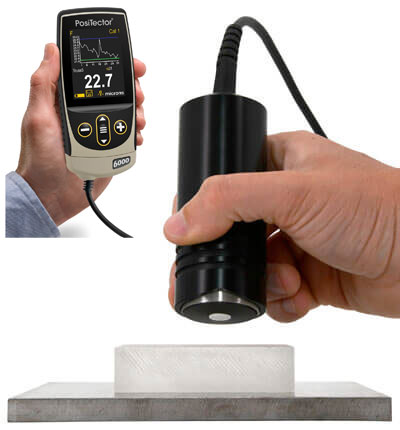

The 6000-FJS is for measuring thick coatings on ferrous metal substrates. Ideal for measuring thick epoxies, rubbers, fireproofing and other thick protective coatings applied to steel.

Features

  • Lightweight, ergonomic design - 66% smaller than comparable probes
  • Electro-magnetic probe is less susceptible to the effects of substrate roughness, curvature, material, and alloy
  • Heavy-duty, gold-plated locking connector for industrial environments
  • Full probe interchangeability with display which eliminates the need for multiple displays.
  • Certificate of Calibration (Long Form) traceable to NIST or PTB included
  • Two (2) year warranty

Ranges

SpecificationMetricImperial
Measuring Range (H)20 – 115 µm0.8 – 4.5 mils
Measuring Range (Rt)10 – 115 µm0.4 – 4.5 mils
Minimum Roughness (Ra)2 µm0.08 mil
Accuracy (H)+/- 5 µm+/- 0.2 mil
Accuracy (Rt)+/- (5 µm + 5%)+/- (0.2 mi + 5%)
Accuracy (Ra)+/- (0.25 µm + 5%)+/- (0.01 mi + 5%)
Anvil Pressure110 grams-force1.1 Newtons
Anvil Size⌀6.25 mm⌀0.25 inch
Field of View3.8 x 3.8 mm
Lateral Sampling3.7 µm
Vertical Resolution100 nm - 2D/3D10 nm - SDF
Weight (without batteries)140 g4.9 oz
Resolution1 µm0.1 mil
Temperature Range0° to 40° C+32° to +104°F

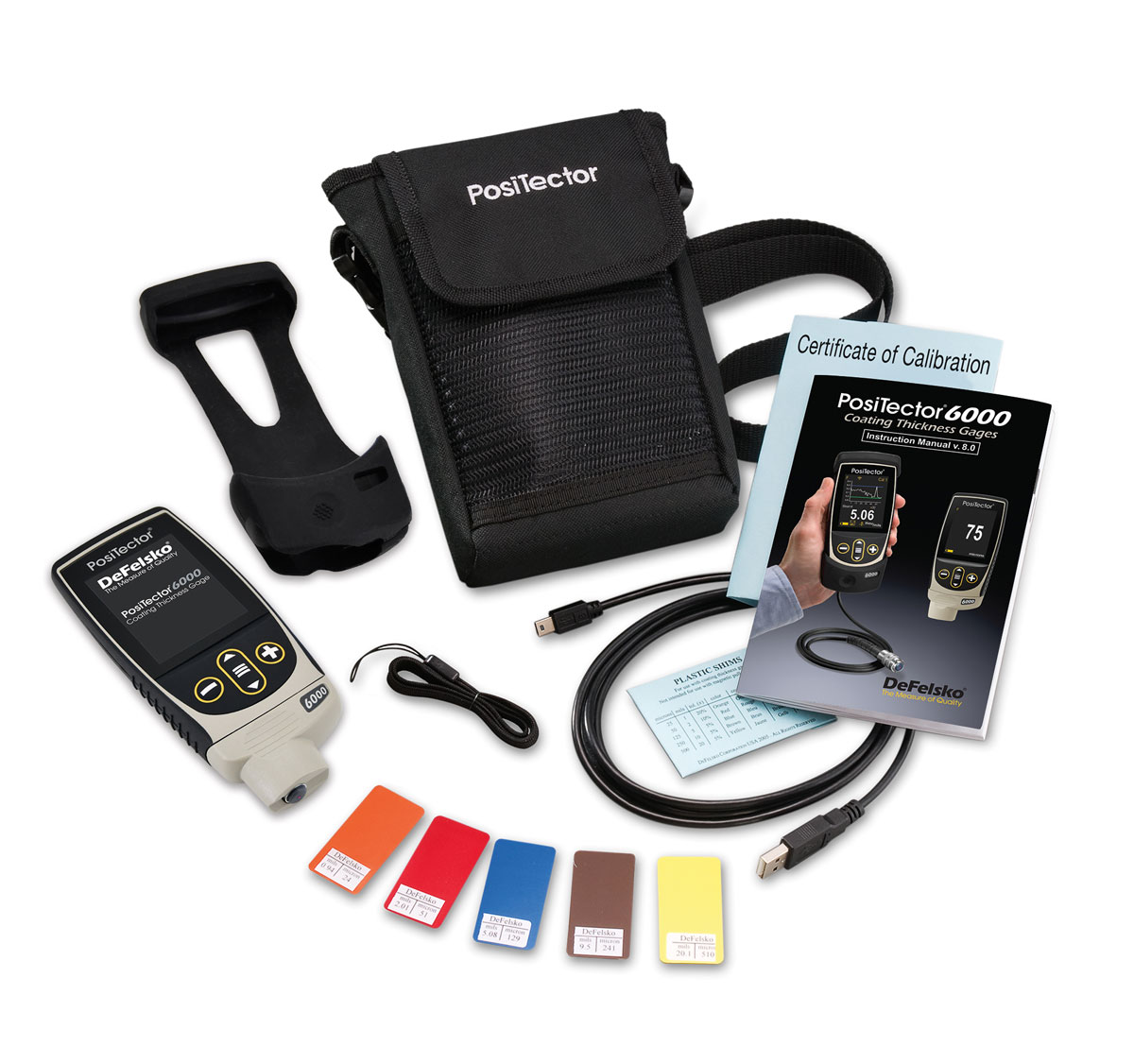

Complete Kit

ALL Gauges are supplied as a complete kit including precision plastic shims, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration showing traceability to NIST or PTB, USB cable, two (2) year warranty.

Buy Now

Item Description Price
PosiTector® 6000 Ferrous Only Model with Standard Body, Separate Probe 1 Inch, 25.4 mm - FJS1-E
$1,175.00
PosiTector® 6000 Ferrous Only Model with Advanced Body, Separate Probe 1 Inch, 25.4 mm - FJS3-E
$1,575.00
Accessories
PROBE-FJS-6000
PosiTector® 6000 Coating Thickness Gauge Cabled Probe, Measures Coatings on Ferrous Metals up to 1 Inch / 25.4 mm. PROBE ONLY, Display Sold Separately PRBFJS-D
$895.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
