Mechanical Physical Therapy Kit
Click images to enlarge.

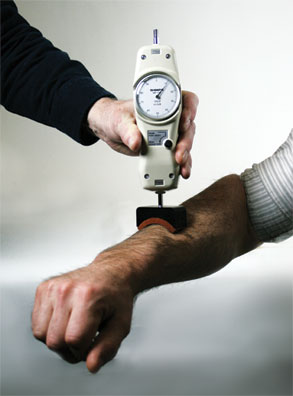

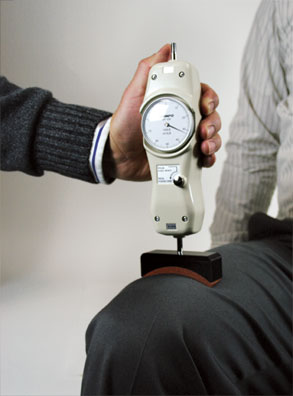

For muscle strength and ergonomic force testing, our Physical Therapy kits have just the right ingredients for the professional Physical Therapist or Ergonomist. Lightweight, rugged and simple to use, these kits are great for isokinetic testing and job task analysis. Available with mechanical force gauges in 100 lb or 50 kg capacities, these PT kits are ergonomically crafted for convenient operation.

All kits are capable of displaying peak compression, tension or real time forces. The peak force mode features an easy push-button reset; especially helpful for doing repetitive testing. The large dial indicator allows viewing of force changes as they occur and reduces the chance for parallax errors when taking readings. Due to its mechanical design, response time is immediate. Calibration is achieved by a set of precisely matched springs which are overload protected to 165 lb (75 kg). The rugged MF gauges feature a die-cast aluminum housing. These handsome kits are equipped with padded ERGO accessories, adapters and N.I.S.T. traceable certificates of calibration. Due to their features these Physical Therapy kits are ideal for ADA compliance, workplace design and ergonomic studies.

Features

  • Outstanding ±0.2% F.S. accuracy makes the MF’s applicable even for the strictest applications
  • Precision gauge movement provides a quick response for instantaneous analysis
  • Real Time Mode or Peak Mode enables flexibility to view live readings or maximum values recorded
  • Peak Mode Reset is ideal for repetitive peak testing applications
  • Smooth mechanical operation with precise action produces repetitive, accurate readings
  • Exceptionally rugged die-cast aluminum housing enables usage in harsh conditions
  • Overload protected to 165 pounds (74.84 kg) protects gauge from accidental damage
  • Compact, ergonomic design is perfect for handheld use
  • Dial rotation enables easing taring adjustment
  • All accessories and attachments required for ergonomic and therapy testing included

Ranges

ModelCapacityOverload CapacityDial Graduations
MF-PT100100 lb165 lb0.5 lb
MF-PT50KG50 kg75 kg0.25 kg

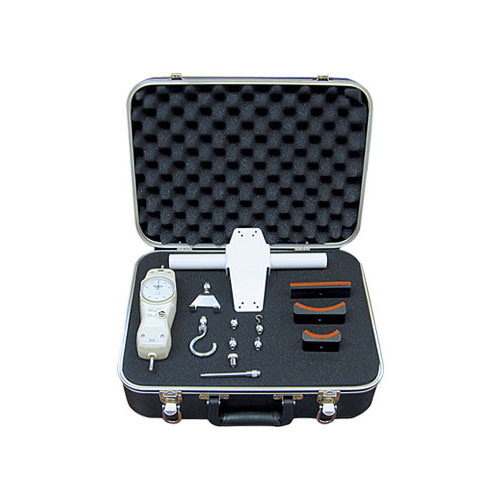

Complete Kit

MF Force gauge, carrying case 7 attachments (flat head, hook chisel, notched head, cone head, extension rod, large hook, large v-hook) padded ERGO accessories, handle and free N.I.S.T. traceable certificate of calibration

Specifications

Accuracy± 0.2% F.S.
DisplayAnalog dial, 2" diameter (50 mm); Rotatable 360° for taring/zeroing
Real/Peak ModeSelectable
Display UpdateImmediate
Kit Weight8.0 lb (3.6 kg)
Warranty2 Year

Buy Now

Item Description Price
Physical therapy kit with MF-100
$720.00
Mechanical Physical Therapy Kit with MF-50KG (Capacity of 50Kg)
$720.00
Accessories
MFP-HANDLE
Handle for MF Force Gauge
$135.00
FG-M6CN
Steel Cone Head Adapter, M6
$19.00
FG-M6FL
Flat head adapter, M6 thread
$19.00
FG-M6HK
Spare Hook, 110lb Capacity with M6 Female Thread
$24.00
FG-M6HKL
Steel Large hook adapter, M6 thread
$30.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
