EK5 Ergonomic Testing Kit

Made in USA
EK5 Ergonomic Testing Kit
Click images to enlarge.

Scheduled to be discontinued December 31, 2017.
Replaced by Series E.

Test push/pull muscle strength and functional task requirements up to 500 lb

These kits make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, physical therapy, and ergonomic studies. These kits present the ergonomist and other professionals with a simple and economical testing solution.

The kit includes a force gauge with data output and a USB cable for output of force data to a PC.

The kits are available in capacities of 100 lbF, 200 lbF and 500 lbF.

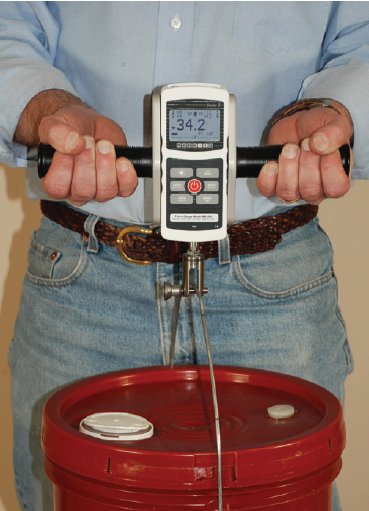

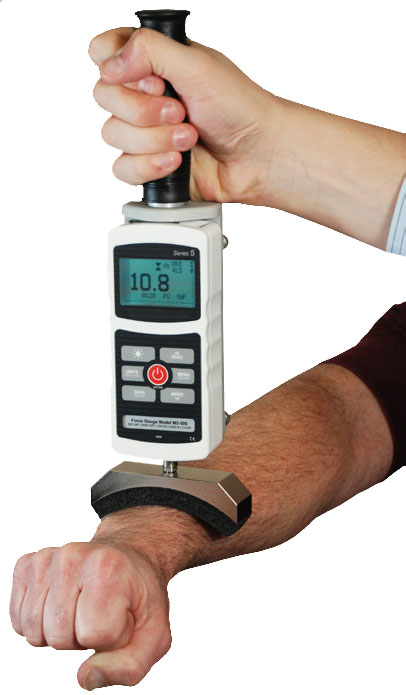

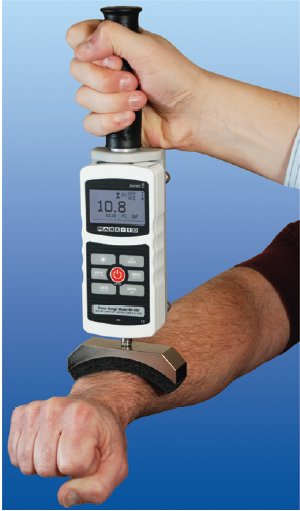

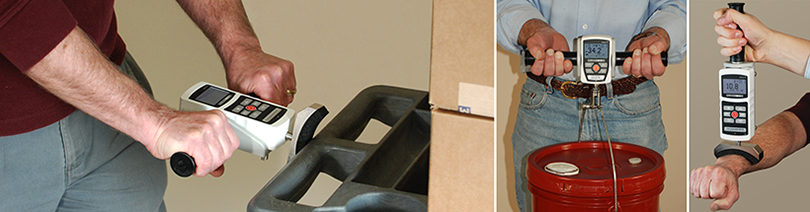

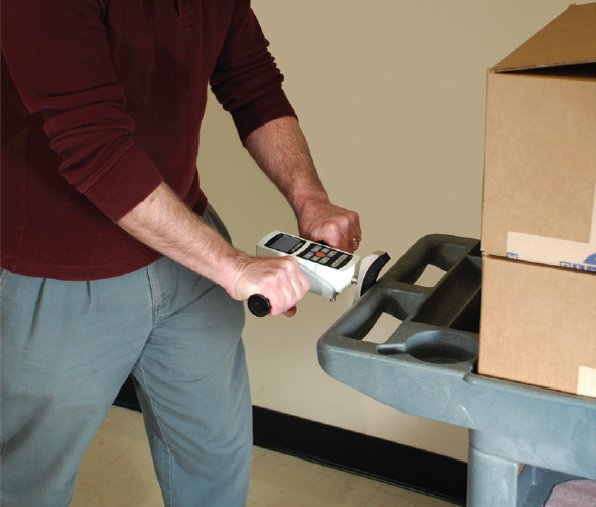

Ergonomics Strength Testing

Features

  • Test up to 500 lb of force with ±0.1% accuracy
  • Compact design, easy to hold
  • Measure inlb, oz, kg, N, or kN
  • Peak force capture for push and pull forces
  • Durable construction ensures longevity
  • Battery or AC operation

Force Ranges - Capacity / Resolution

ModelLbKgN
EK5-100100 / 0.0250 / 0.01500 / 0.1
EK5-200200 / 0.05100 / 0.021000 / 0.2
EK5-500500 / 0.1250 / 0.052500 / 0.5

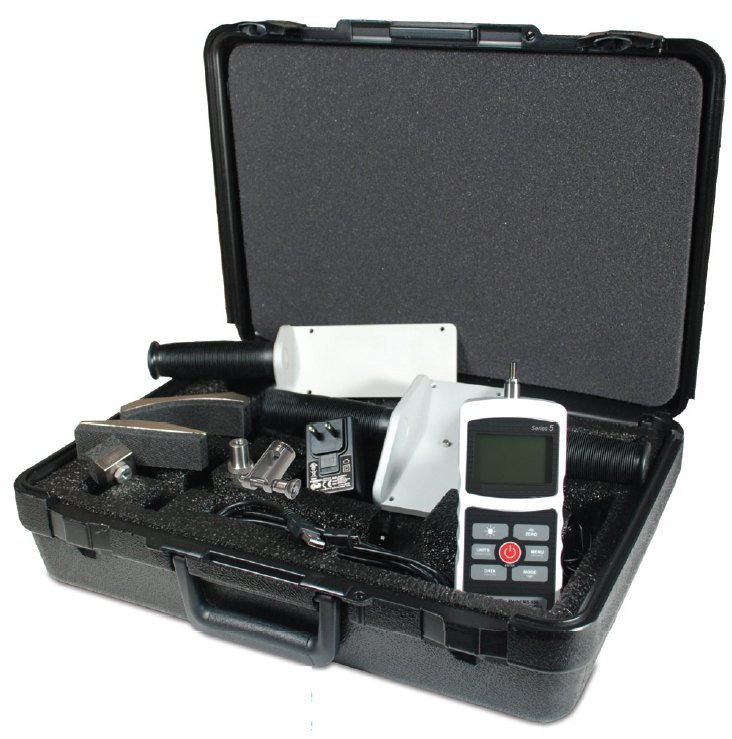

Complete Kit

The EK5 is sold as a complete kit that includes the gauge, 3 ergonomic attachments, non-slip rubber handles, clevis grip, flat head, ac adapter, NIST-Traceable calibration certificate in a rugged carrying case

Downloads

Buy Now

Item Description Price
Physical Therapy / Strength testing kit 100 lb capacity
$1,245.00
Physical Therapy / Strength testing kit 200 lb capacity
$1,295.00
Physical Therapy / Strength testing kit 500 lb capacity
$1,295.00
Accessories
Mesurgauge Load & Travel Analysis Software
$495.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
