Digital PT-Kits Digital Physical Therapy Kits

Strength Testing Kit
Click images to enlarge.

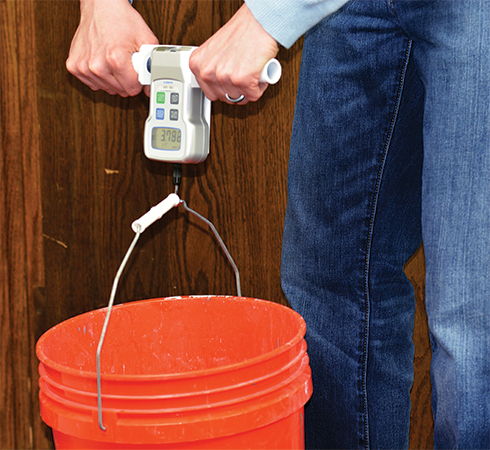

For muscle strength and ergonomic force testing, our digital PT kits have just the right ingredients for the professional Physical Therapist, or Ergonomist. Lightweight, rugged and attractive, these kits are great for Isokinetic testing and job task analysis. The PT kits with digital force gauges are ergonomically crafted and are easy to operate. In addition, the FGV-PT series kits are equipped with free software for Force data collection.

All kits are capable of displaying peak compression, tension or real time forces. These handsome padded kits are furnished with padded ERGO accessories, handle adapters and N.I.S.T. traceable certicates of calibration. The digital PT Kits are ideal for A.D.A Compliance, workplace design and ergonomic studies.

Features

  • Ranges from 100 to 500 lbs (50 to 250 kg)
  • Large easy to read LCD display with units selection
  • Peak hold tension and compression or real time force mode
  • 180° Reversible display aids user operation in various test configurations
  • Compact, ergonomic design is perfect for handheld use
  • Outstanding ±0.2% F.S. accuracy allows usage in strictest applications
  • Rugged, die cast aluminum housing provides proper protection
  • Operate with the rechargeable batteries or AC Power Adapter
  • CE Mark & RoHS Approval

Force Ranges

ModelCapacityResolution
FGE-PT100100 lb
50 kg
500 N
0.01 lb
0.01 kg
1 N
FGE-PT200200 lb
100 kg
1000 N
0.1 lb
0.1 kg
1 N
FGE-PT500500 lb
250 kg
2500 N
0.1 lb
0.1 kg
1 N
FGV-PT100100 lb
50 kg
500 N
0.01 lb
0.01 kg
1 N
FGV-PT200200 lb
100 kg
1000 N
0.1 lb
0.1 kg
1 N
FGV-PT500500 lb
250 kg
2500 N
0.1 lb
0.1 kg
1 N

Specifications

Accuracy± 0.2% F.S. @ 73°F (23°C)
DisplayReversible 4-Digit LCD, 0.47" high (12 mm) with various indicators including tension and low battery indication
ModeReal time or Peak hold mode
Display UpdateSelectable
Sampling Rate1000/sec
Overload Capacity150% of F.S.; 200% of F.S. for 100 lb
PowerRechargeable Ni-battery or universal AC adapter/charger (100 – 240 VAC 50/60 Hz)
Auto Power Shut-OffYes (not active if adapter/charge is in use)
Temperature Limits32 to 104°F (0 to 40°C)
DimensionsPT100,PT200: 5.8" x 3" x 1.5" (147 x 75 x 38 mm)
PT500: 8.43" x 3.23" x 2.25" (214 x 82 x 57 mm)
Kit WeightPT100 Kits: 6.3 lb (2.85 kg)
PT200 Kits: 6.65 lb (3 kg)
PT500 Kits: 7.5 lb (3.4 kg)
CertificationCE, RoHS
Warranty2 Year

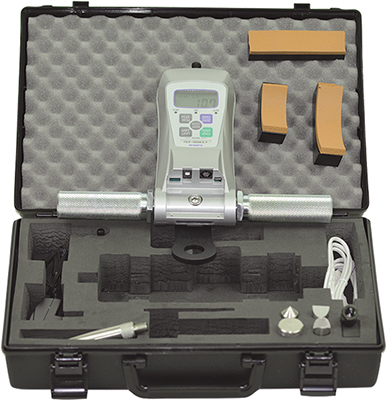

Complete Kit

Force gauge, carrying case and attachments (hook, chisel, flat head, notched head, hanger, cone head, extension rod, metric to inch adapter), padded ERGO accessories, handle, AC adapter/charger, N.I.S.T. traceable certificate of calibration and FGV-RS232 cable (w/FGV series only)

Buy Now

Item Description Price
Physical therapy kit with FGE-100XY gauge
$877.50
Physical therapy kit with FGE-200XY gauge
$945.00
Physical therapy kit with FGE-500XY high capacity gauge
$1,035.00
Physical therapy kit with FGV-100XY datalogging gauge
$1,057.50
Physical therapy kit with FGV-200XY data-logging gauge
$1,102.50
Physical therapy kit with FGV-500HXY high capacity data-logging gauge
$1,192.50
Accessories
NIST-FG
NIST traceable certificate of calibration for gauges from 0.5 to 100 lbs
$100.00
NIST-FG-HC
NIST traceable certificate of calibration for gauges from 200 to 1000 lbs
$195.00
