MCS-655 Photo-Reflective Speed Sensor

MCS-655P / MCS-655M Retro-Reflective Photo Sensor
Click images to enlarge.

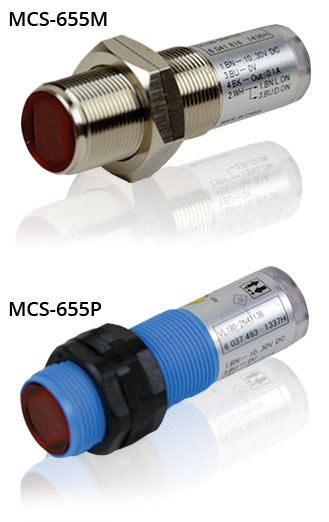

The MCS-655 is now available as 2 Models:
MCS-655M - Retro-Reflective Speed Sensor with Metal Housing
MCS-655P - Retro-Reflective Speed Sensor with Plastic Housing

The MCS-655M is a photo-reflective NPN open collector photo sensor with Light/Dark activated output that operates up to 1000 Hz. For simplified installation purposes the integral LED aids in the MCS-655M model comes in a robust metal housing with a connection cable, LED status indicator, sensitivity control and mounting nuts.

Features

  • Switching frequency: 1,000 Hz with light/dark ratio 1:1
  • LED is mounted in the back of the unit with sensitivity adjustment
  • M18 Threaded body housing with two lock (jam) nuts for easy mounting and positioning

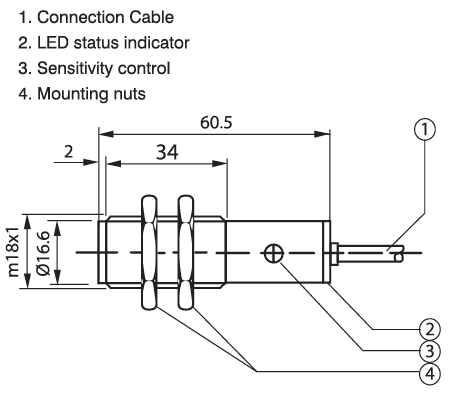

Dimensions

Wiring Guide

Brown +10-30VDC
Blue 0V
Black Output (NPN Open Collector)
White Connect to Brown for Light to Operate
Connect to Blue for Dark to Operate

Related Products

Shimpo DT-501X Panel Tachometer
Click image for more info
Panel Meter Tachometer
Click image for more info
Panel Mount Tachometer
Click image for more info
Click image for more info
Panel Mount Counter

Specifications

Housing length2.5" (62.9 mm)
Housing thread diameterM18 x 1
Sensing range2" - 23' (0.05 -7 m )
Light/SourceVisible red LED
Light spot at 19.7' (6 m):15.75" (400 mm)
Wave length645 nm
Sensitivity adjustmentPotentiometer over 270 degree rotation
Supply voltage10-30 V DC
Switching outputNPN open collector, Light/dark-switching, Selectable via L/D control wire
Signal voltageNPN HIGH ⁄ LOW, Approx. VS ⁄ < 1.8 V
Output current max≤ 100 mA
Response time≤ 0.5ms
Switching frequency1,000 Hz with light/dark ratio 1:1
Angle of dispersionCa. 4.5 degrees
Ambient Operating temperature-13 to 131 °F (-25 to 55 °C)
Housing materialMCS-655M: Nickel Plated Brass
MCS-655P: PBT and PC
Optics materialPMMA
Cable Length6.6’ (2 m)
Cable materialPVC
Circuit protectioninputs and output reverse-polarity protected; outputs overcurrent and short-circuit protected
WeightMCS-655M: 3.35oz (95g)
MCS-655P: 2.2oz (62 g)
Enclosure ratingIP 67
Items suppliedFastening nuts (2 x), Reflector target, reflective tape
