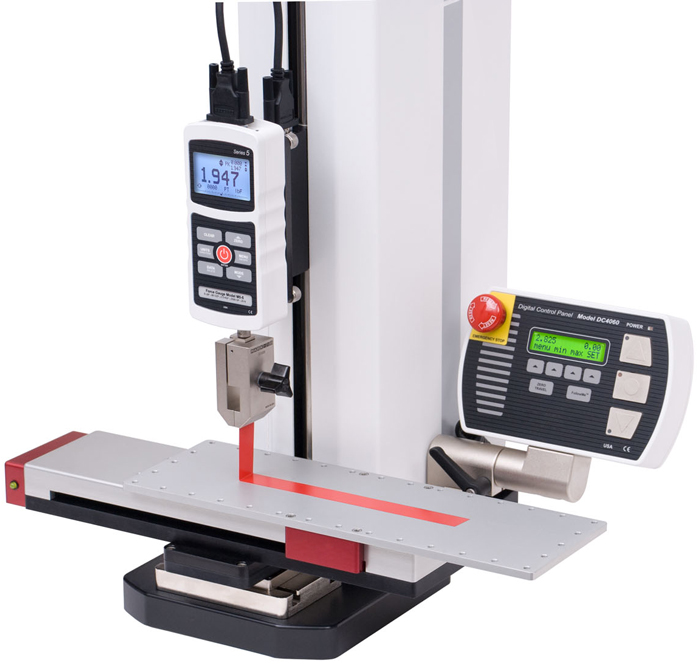

Mark-10 G1045 90 peel tester
Click images to enlarge.
Maximum peel force: 5 lbF (25 N)

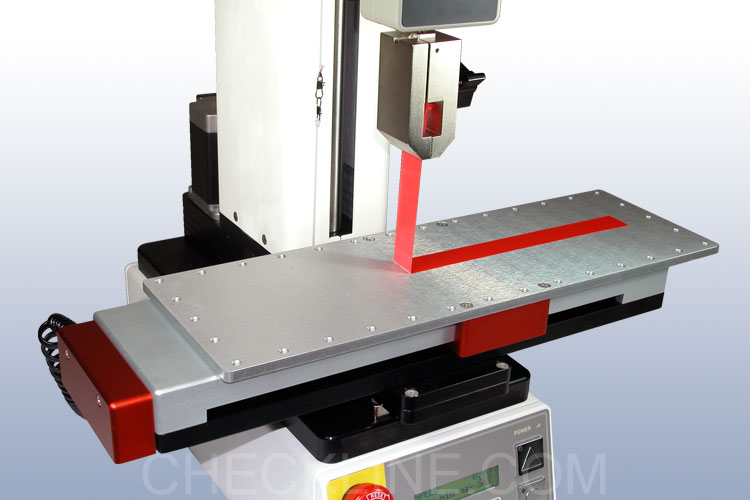

The G1045 is designed for the testing of adhesives, films, and packaging, as per ASTM D6862. A large flat working table with mounting holes accommodates a range of sample sizes. As the test stand crosshead moves vertically, the table moves horizontally, maintaining a 90° angle between the table and the direction of pull. The table is connected to the crosshead via a cable.

A large flat working table with mounting holes accommodates a range of sample sizes. As the test stand crosshead moves vertically, the table moves horizontally, maintaining a 90° angle between the table and the direction of pull. The table is connected to the crosshead via a cable.

A unique limit switch option is available for motorized test stands to prevent cable breakage due to excessive movement.

*Test Stand and Force Gauge is sold separately.

Features

  • Maintains 90° angle between the table and the direction of pull
  • Compatible with the following test stands: ESM303, ES30. Recommended for use with a motorized test stand.
  • Large working area with threaded mounting holes
  • Maximum table travel: 8.2 in (210 mm)
  • Compatible only with force gauges, not force sensors and load cells

Optional Equipment

Mark-10 G1045Limit switch
Prevents cable breakage due to excessive movement. When the table reaches its limit of travel, test stand movement stops.

Related Products

ESM303 Motorized Test Stand
Click image for more info
High Performance Motorized Test Stand, 300lb Capacity
- Adjustable Travel Speed, Standard - 0.5 - 13 in/min (13 - 330 mm/min), Optional - 0.02 - 45 in/min (0.5 - 1,100 mm/min)
- USB output of force vs. time or force vs. travel (with optional travel measurement)
M5 Digital Force Gauge
Click image for more info
Advanced Digital Force Gauge - Model M5
- High-speed 7,000 Hz peak sampling rate
- 1,000-point data memory with statistics and outputs

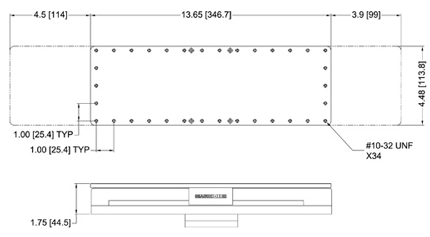

Dimensions

Buy Now

Item Description Price
$
Accessories
G1045-1
Limit switch option for G1045
$200.00
G1068

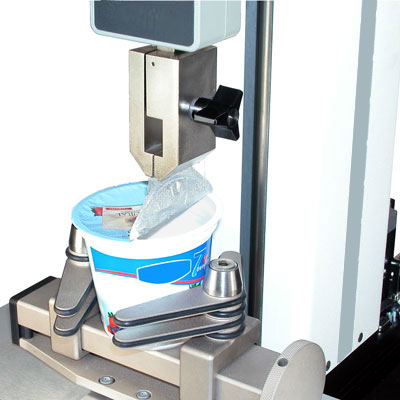

Adapter, G1023 bottle grip to G1045
$80.00
