AC1095 Double column extensions for Motorized Test Stands

Made in USA

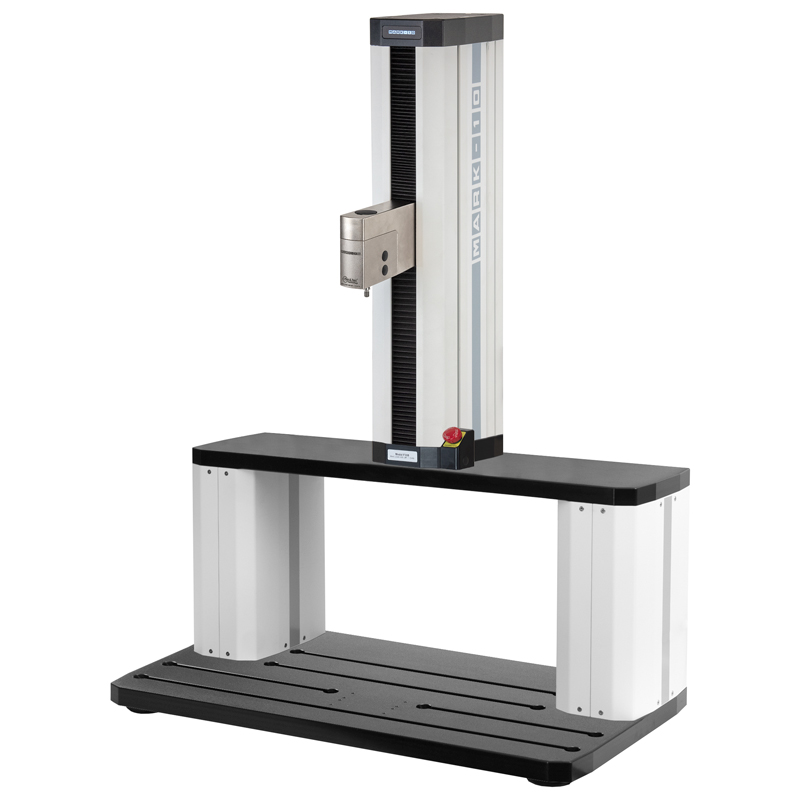

An AC1095-2 shown configured with an F305 Advanced Test Frame.
Click images to enlarge.
The double column extensions for AC1095 can accommodate up to 20 in. [508 mm] wide sample, or ø21.5 in [ø546 mm] round sample. Three heights are available – 6, 12, and 24 in [150, 300, and 600 mm]. The base contains rows of T-slots, with available fixture mounting plates.


  • Increase horizontal and vertical clearances for large samples
  • Anodized aluminum base features rows of T-slots for fixture mounting, with rubber bench mounts


AC1095-1100 lb [45.4 kg]
AC1095-2105 lb [47.6 kg]
AC1095-3123 lb [55.8 kg]

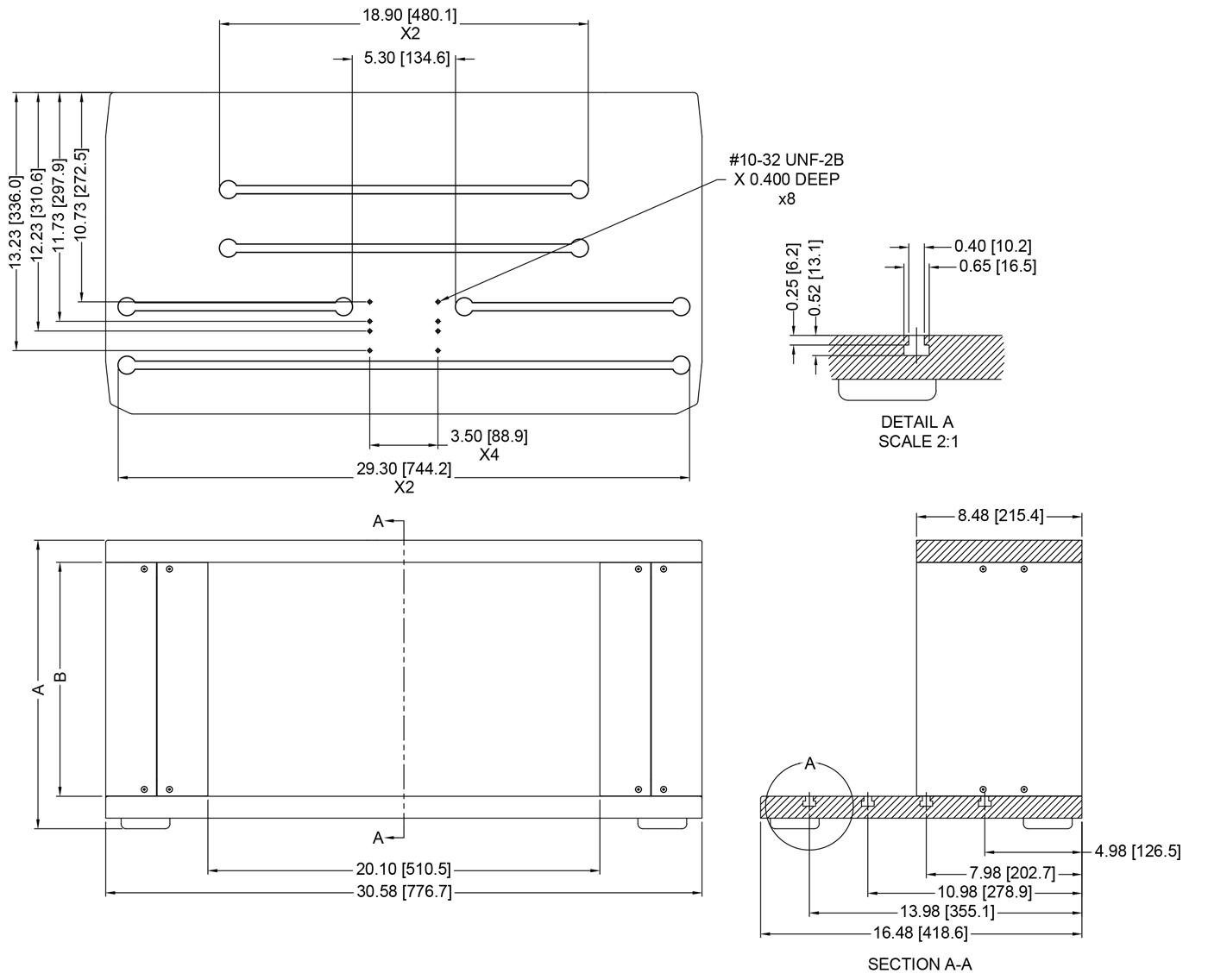

AC1095 dimensions

Related Products

EasyMESUR Test Frame
Click image for more info
EasyMESUR Tension and Compression Test Frame - Low Range
Mark-10 Series F Test Stand
Click image for more info
F105 / F305 / F505 / F505H IntelliMESUR Force Test Frame


Buy Now

Item Description Price
Double column extension, 6″ / 150 mm, F105 / F305 / F505
Double column extension, 12″ / 300 mm, F105 / F305 / F505
Double column extension, 24″ / 600 mm, F105 / F305 / F505
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
