TIME5100 Metal Hardness Tester

TIME5100 TH-170  - Metal Hardness Tester
Click images to enlarge.
3 Models available
TIME5100 - Standard model with integrated impact device D
TIME5102 - Special model for Hardness Measurement on surface hardened components, coatings, thin walled components. It has app. 1/4 impact energy of TIME5100/TIME5104. Integrated impact device C.

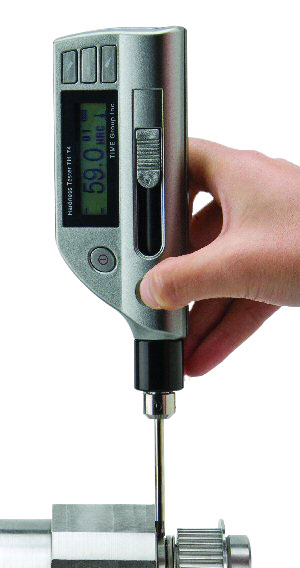

TIME5104 - Special model for Hardness Measurement in extremely confined spaces. Integrated impact device DL.

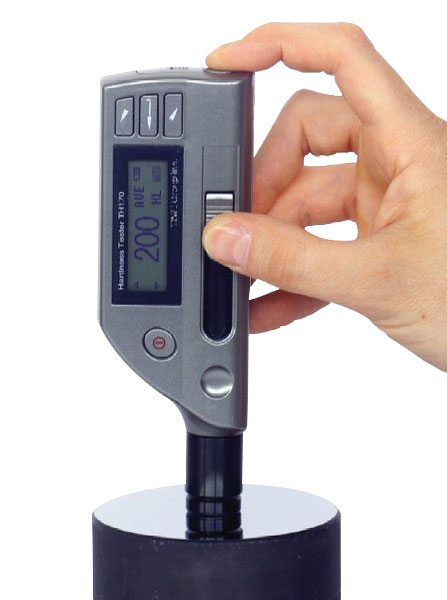

The small portable TIME5100 hardness testers with integrated impact device are designed for an extremely wide range of applications. They are especially recommended for Hardness Measurement on the shop floor. The automatic identification of the impact test direction makes them easy to use. Hardness tests are possible at any angle, even upside down. The data memory stores up to 270 values. Data can be transferred via USB interface to a computer or printer.

The outstanding features of the TIME5100 includes speedy and exceptionally user-friendly operation and high measuring accuracy, with an extremely low tolerance of ± 1.5%.

The hardness tester functions by releasing a small impact device on to the metal testing surface by means of a spring mechanism. The gauge's dynamic measuring procedure works by calculating the difference between the impact velocity and the rebound velocity of impact device.

The TH-170 can be used on a whole variety of metals. A statistics program calculates the mean hardness value from a number of single readings. Readings can be printed out immediately on a mini-printer or stored for later processing.

Hardness Measurement on metal substances such as:

Steel, cast steel, cold work tool steel, stainless steel, grey/nodular cast iron, aluminium, cast aluminium alloys, brass, bronze and wrought copper alloys

Features

  • Portable dynamic metal hardness testing set
  • Automatic identification of impact test direction
  • Memory up to 270 average readings in 9 freely selectable files
  • Automatic power off
  • Data output USB
  • Integrated impact device: no cables
  • Direct display of hardness values in Rockwell HRB, Rockwell HRC, Vickers HV, Brinell HB, Shore HS and Leeb HLD
  • Test at any angle, even upside down
  • For nearly all metals
  • Upper and lower limit setting
  • Large LCD with backlight
  • Calibration feature

Typical Applications

  • Large, heavy components or fixed machine parts
  • Serial products during the production process
  • Material identification in storage
  • Measurement on locations with difficult access

Measurement Conditions

  • Minimum measuring area 10 mm x 10 mm
  • Minimum curvature radius r of the measuring area, 30 mm, without adapter.
  • Minimum curvature radius with screw-on V-adapter, 11mm.
  • Samples weighing less than 5 kg and samples less than 5 mm thickshould be placed on a solid base to prevent vibration.
  • Samples weighing less than 2 kg should be fixed to a solid base withcoupling paste.

Related Products

Click image for more info
QH5
Leeb Hardness Tester, Rebound Hardness
- Meets ASTM A-956 standards
- Converts from HL to selected hardness units
SH-21 Metal Hardness Tester
Click image for more info
Metal Hardness Tester - Rockwell HRC
- Fast action, measures hardness in seconds.

Complete Kit

The TIME5100 series complete kit includes the gauge, test block with HLD value, charger, cleaning brush, coupling paste, pocket protection case, data cable, manual and certificate all within a plastic carrying case.

Specifications

TIME5100
Impact deviceD (standard) integrated
Workpiece radius (convex/concave)Rmin = 50mm (with support ring Rmin = 10mm)
Workpiece maximum weight2kg on solid support (0.1kg with couplant paste)
Workpiece min. thickness coupled3mm
Workpiece min. case hardened depth0.8mm
TIME5102
Impact deviceC integrated
Workpiece radius (convex/concave)Rmin = 50mm (with support ring Rmin = 10mm)
Workpiece maximum weight0.5kg on solid support (0.02kg with couplant paste)
Workpiece min. thickness coupled1mm
Workpiece min. case hardened depth0.2mm
TIME5104
Impact deviceDL integrated
Workpiece radius (convex/concave)Rmin = 10mm
Workpiece maximum weight2kg on solid support (0.1kg with couplant paste)
Workpiece min. thickness coupled3mm
Workpiece min. case hardened depth0.8mm
General Information
Hardness scalesHRC, HRB, HB, HV, HS, HLD
Measuring rangeHLD 200 to 900
HRB 13 to 100
HRC 20 to 68
HB 20 to 655
HV 80 to 950
HS 32 to 100
Accuracy± 6HLD (for HLD approx. 800)
Measuring direction0° - 360°
Memory270 average readings in 9 freely selectable files
InterfaceUSB 2.0
Standard impact deviceType D, integrated
Max. surface roughness of workpiece1.6 µm Ra
Max. workpiece hardness900 HLD
Min. workpiece radius (convex/concave)Rmin = 50mm (10mm with support ring)
Min. workpiece weight2kg on stable support, 0.1kg with coupling paste
Min. workpiece thickness coupled3mm with coupling paste
Min. thickness of hardened layers0.8mm
Power supplyAAA 1.5V batteries (2 pcs)
Operating temperature0° - 40°C
Dimensions150 mm x 55 mm x 25 mm
Weight165 g
