QH5 Leeb Hardness Tester, Rebound Hardness

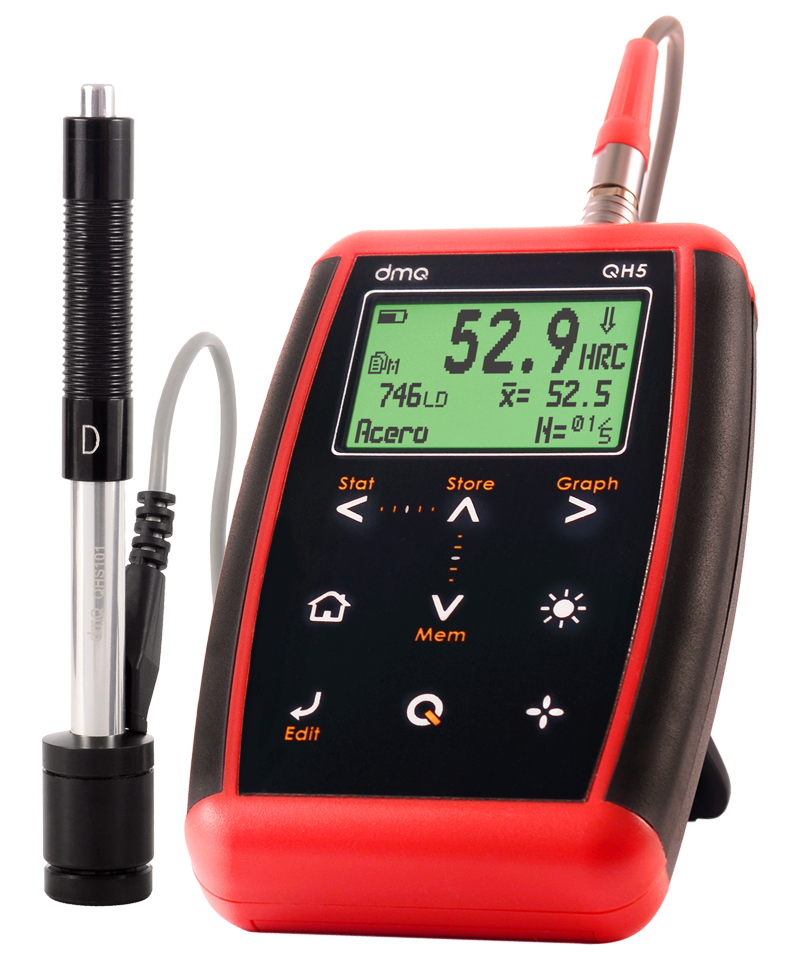

QH5 Leeb Hardness Tester
Click images to enlarge.
The QH5 Portable Leeb Hardness Testers are small, robust, precise, repetitive, and easy to use. They operate on the Leeb dynamic method and are used to measure the hardness in most metals including steel, cast steel, alloy tool steel, stainless steel, grey cast iron, spheroid iron, cast aluminum, brass, bronze and wrought copper. The QH5 offers Cal-Tag technology in all of our impact devices so that they can easily be changed with no need to calibrate the unit.

The QH5 includes a Data Logger that can store 32000 values and can connect to a PC via USB using DataCenter software.

Features

  • Meets ASTM A-956 standards

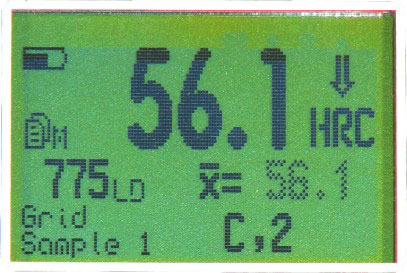

  • Converts from HL to selected hardness units
  • Accuracy of ± 4HL (0.5% at 800HL)
  • Impact devices can be used in all directions
  • Cal-Tag to easily switch impact devices

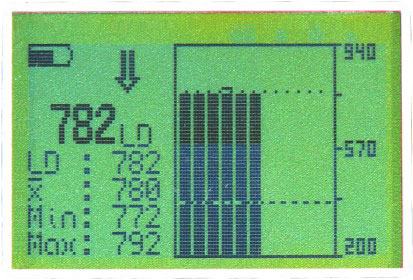

  • Histogram graphical representations
  • High impact ABS enclosure w/ rubber sides
  • Sleek design with a Touch-Sense front panel
  • Quick access key (angle, hardness unit)
  • Connect to PC via USB or RS232 (optional)
  • DataCenter software included
  • Model upgrade licenses

Models

QH5-D QH5-M QH5-G
  • Type D, DC impact device
  • Histogram graphics
  • Real time stats
  • Alarms
  • USB to connect to PC
  • Type D, DC, C, DL, E, G impact device
  • Histogram graphics
  • Real time stats
  • Alarms
  • USB to connect to PC
  • Type G impact device
  • Histogram graphics
  • Real time stats
  • Alarms
  • USB to connect to PC

Model Selection Chart

QH5 Model QH5 M (All Scales)
QH5-D QH5-G
Impact Device Type D, DC C DL E G
Metals / Hardness Units Hardness Ranges
Steel and Cast Steel
Brinell (HB) 81 - 663 81 - 646 80 - 646 83 - 663 90 - 646
Vickers (HV) 81 - 996 80 - 950 80 - 996 84 - 12111 -
Rockwell C (HRC) 20 - 72 21 - 68 20 - 70 22 - 70 -
Rockwell B (HRB) 37 - 100 37 - 100 - - 48 - 100
Rockwell A (HRA) - - - 62 - 88 -
Shore (HS) 32 - 100 - 32 - 99 36 - 102 -
Rm (N/mm2) 275 - 2194 275 - 2297 275 - 2194 283 - 2195 305 - 2194
Alloy Tool Steeel
Vickers (HV) 80 - 898 - - - -
Rockwell C (HRC) 20 - 67 - - - -
Stainless Steel
Brinell (HB) 85 - 655 - - - -
Vickers (HV) 85 - 802 - - - -
Rockwell C (HRC) 20 - 62 - - - -
Rockwell B (HRB) 46 - 102 - - - -
Grey Cast Iron
Brinell (HB) 92 - 334 - - - 92 - 326
Sphreoid Iron
Brinell (HB) 127 - 387 - - - 127 - 364
Cast Aluminum
Brinell (HB) 19 - 160 - - - -
Brass
Brinell (HB) 40 - 173 - - - -
Rockwell B (HRB) 14 - 95 - - - -
Copper
Brinell (HB) 45 - 315 - - - -
Bronze
Brinell (HB) 60 - 290 - - - -

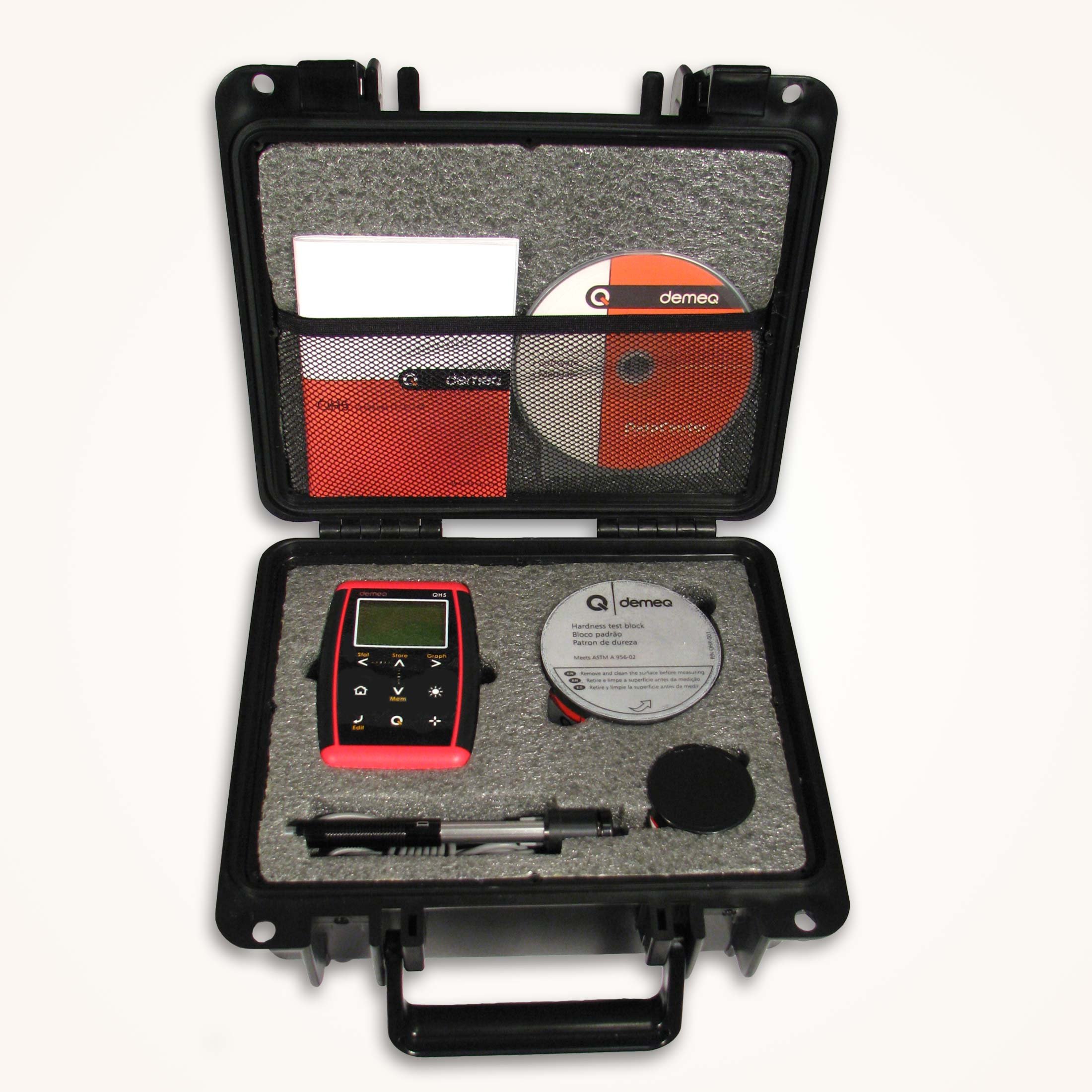

Complete Kit

Supplied as a complete kit including the QH5 display, impact Device, Test Block, Coupling Paste, USB Cable, CD with DataCenter Software, Printed User Manual, High Impact Carrying Case and Certificate of Conformity

DataCenter Software

datacenter softwareDataCenter is a universal program that is used to download and process data stored in the unit memory can be transferred to a PC via USB. With the tools in DataCenter you can generate statistics, graphics, export values to other programs, and prepare custom reports among other things. DataCenter is also used to download unit software updates at no charge.

Related Products

Portable Leeb Hardness Tester for Steel
Click image for more info
QH2
Portable Leeb Hardness Tester for Steel
QH7 Heavy Duty Portable Hardness Tester
Click image for more info
QH7
Heavy Duty Portable Hardness Tester
SH-21 Metal Hardness Tester
Click image for more info
Metal Hardness Tester - Rockwell HRC
- Fast action, measures hardness in seconds.
TIME5100 TH-170  - Metal Hardness Tester
Click image for more info
Metal Hardness Tester
- Portable dynamic metal hardness testing set
- Automatic identification of impact test direction

Specifications

Measurement
MethodLeeb rebound method
Resolution1 HL - 1 HB - 1HV - 0.1HRC - 0.1 HRB - 0.1 HRB - 0.1 HS - 1 N/mm2
Accuracy±4 HL (0.5% at 800 HL)
Measuring rangeHL 150 - 960
Impact angles0°, 45°, 90°, 135°, 180°
Features
Histogram3 to 18 bars
StatisticsMedium, Max, Min, Std Dev, Range
User unitsHU-1, HU-2 user generated
ClockTime and date registration
AlarmsHigh and Low
Screen
BacklightLED (ON, OFF, AUTO)
LCDGraphics 128 x 64 px
ContrastDigital and Automatic

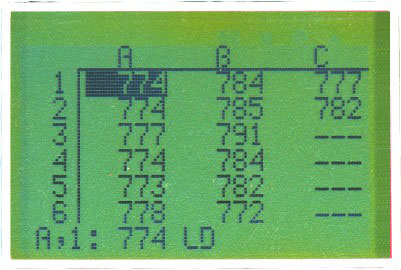

Data Logger
Capacity32000 + values, Up to 8 files with alphanumeric names
OrganizationUp to 8 files with alphanumeric names
Capture modesManual and Automatic
Connection to PC
ConnectionUSB native or RS232 (optional cable)
UpdatesSoftware and models (licenses)
Electronic Unit
Dimensions78 x 117 x 24 mm
Weight200g with batteries
Working Temperature-10 to +50 °C
EnclosureHigh Impact ABS
Power Supply
Batteries2 x AA 1.5V
Operation120 hours with backlight off
ShutdownManual, Auto or Continuous
Warranty5 Years on Electronic Display, 6 Months on Impact Device (under normal use)

Downloads

Buy Now

Item Description Price
QH5D Leeb Metal Hardness Tester Complete Kit (includes Type D Impact Device)
$1,195.00
QH5M Multi-Scale Leeb Metal Hardness Tester Complete Kit (includes Type D Impact Device only)
$1,395.00
QH5G Leeb Metal Hardness Tester Complete Kit (includes Type G Impact Device)
$2,395.00
Accessories
QHS101
Impact device D
$330.00
QHS201
Impact device DC
$480.00
QHS301
Impact device DL
$895.00
QHS501
Impact device C
$440.00
QHS601
Impact device G
$820.00
QHS101-T
Replacement tungsten carbide ball D / DC
$65.00
QHS101-B
Replacement impact body D / DC
$355.00
QHS101-C
Replacement 3 pole cable for demeq impact devices
$155.00
QHR101
One side standard test block D dia. 90 x 55 mm
$191.00
QHM520
High impact large with custom interior
$225.00
QHA012
Set of 12 each support rings for curved surfaces
$280.00
