TSB100 Manual Test Stand

Made in USA
TSB100 Manual Test Stand Mark-10
Click images to enlarge.

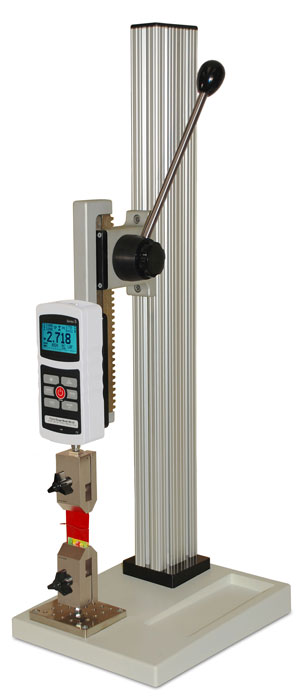

The lever operated Force Measurement Test Stand Model TSB100 is an economical solution for quick-action tensile testing and compression testing of up to 100 lb of force. Constructed of rugged components, this test stand is durable enough for the factory floor, yet precise enough for laboratory environments.


  • Loading lever can be positioned in 30ยบ increments for ease of peration
  • Precision ground rack for smooth precision motion

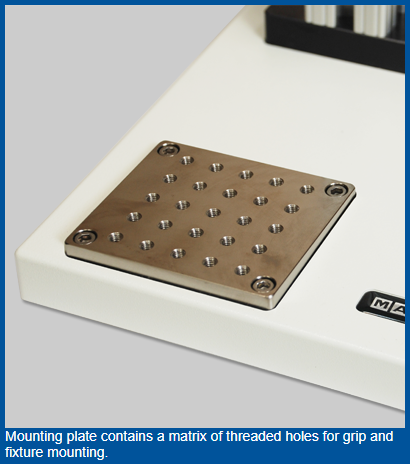

  • Mountinig holes for bench mounting
  • Low force friction brake


Related Products

M5 Digital Force Gauge
Click image for more info
Advanced Digital Force Gauge - Model M5
- High-speed 7,000 Hz peak sampling rate
- 1,000-point data memory with statistics and outputs
M3 Digital Force Gauge
Click image for more info
Digital Force Gauge
- Includes traceable calibration certificate without data.
NIST traceable calibration certificate with data andISO-17025 certificate option is available
- High-speed 2,000 Hz sampling rate

What's included with TSB100

The TSB100 test stand is shipped as shown at left, and includes the following accessories:

(1) G1030 thread adapter, 5/16-18M to #10-32F
(1) Allen wrench set
(4) Thumb screw for force gauge
(1) Resource CD


Capacity100 lb / 50 Kg / 500 N
Stroke6" (152 mm) without travel stops
2.75" (69.9 mm) with travel stops

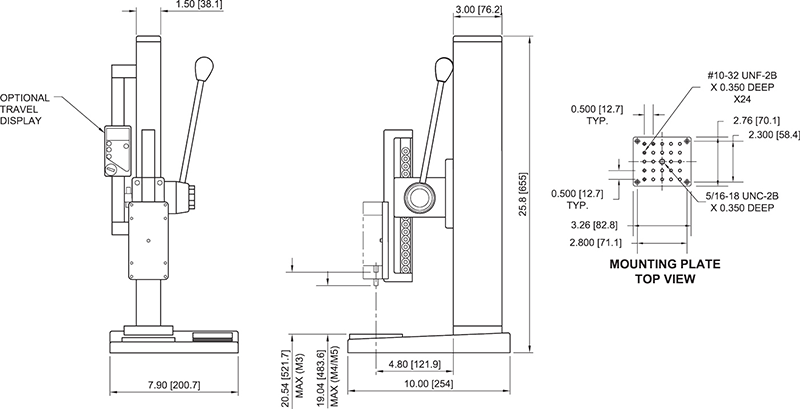

DimensionsRefer to dimensions above
Weight12 lb (5.4 Kg)
Compatible GaugesSeries 3 and Series 5
Warranty3 years


Buy Now

Item Description Price
Test stand, lever-operated, 100 lbs

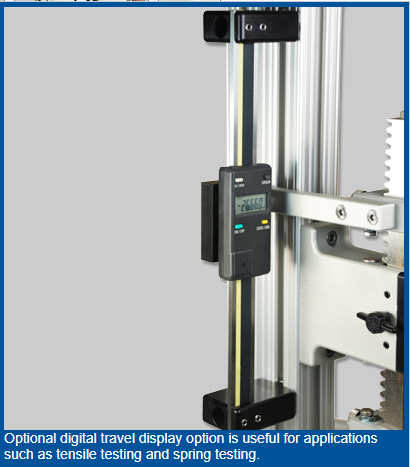

Digital travel display for TSA750/TSA750H/TSB100, 6" / 150 mm
Horizontal/wall mounting kit for TSA750/TSB100/TSC1000

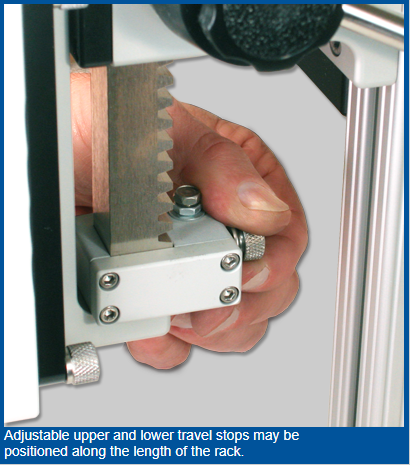

Travel stops kit for TSB100
Column extension, 12 in. / 305 mm, TSB100 / TSA750 / TSA750H / TSC1000 / TSC1000H
Column extension, 24 in. / 610 mm, TSB100 / TSA750 / TSA750H / TSC1000 / TSC1000H
Column extension, 42 in. / 1065 mm, TSB100 / TSA750 / TSA750H / TSC1000 / TSC1000H
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
