NLH Horizontal Lever Test Stand

Made in Japan

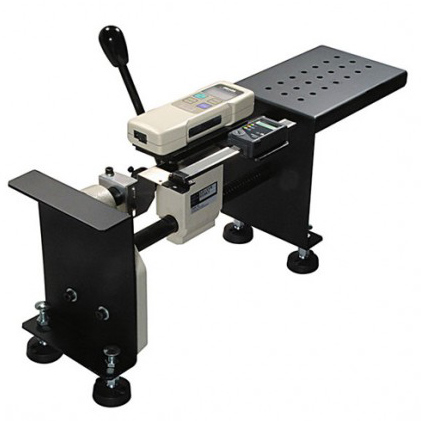

NLH-220 Horizontal Lever Test Stand
Click images to enlarge.
The NLH-220 Horizontal Lever Operated Force Measurement Test Stand is designed for a wide range of tension and compression force testing applications. The rugged design provides maximum versatility and reliability.

Rubber feet and a rugged metal construction provide a stable platform for tension or compression testing. The NLH-220 is unaffected by gravity and does not employ a return spring, making it perfect for crimp testing and force testing where rapid sample loading is desirable. A horizontal setup creates unlimited clearance, and can also be ideal for testing very large objects.

For applications requiring distance measurement, the NLH-220-S is equipped with a digital distance meter to measure displacement. The digital distance meter has PC output capabilities, for more information click here. The stand will accommodate any of the standard range Imada force gauges. The large working platform has a 7 x 3 array of M8 holes to accommodate a variety of holding fixtures. AP-002 Adapter Plate is available to mount most other brand force gauges to the NLH test stand.

Force Gauge and Distance Sensor are Sold Separately

Features

  • Tension and compression testing
  • Horizontal positioning is easy to control
  • Lever action allows for rapid testing
  • Large work area accommodates a wide variety of samples

Related Products

DST Digital Force Gauge
Click image for more info
DST
Digital Force Gauge
- Backlit LCD display with user-friendly menus
- 30,000/sec sampling rate
- USB and RS-232C output
zts / zta force gauge
Click image for more info
ZTA
Digital Force Gauge with high speed data output, up to 2000hz
- 30,000 data/sec ultra-high sampling rate; Processes and transmits 2,000 data/sec.
Wire Terminal Pull Tester WTT-HD
Click image for more info
Heavy Duty Wire Terminal Tester
- 220lb Capacity
- Includes NIST-Traceable calibration certificate
- lb, kg & Newton units are selectable
- For wires up to 8mm OD

Specifications

Capacity220 lbs / 100 Kg
Stroke2" / 50mm
Optional Distance Meter Specifications
Resolution0.0005" / 0.01 mm
Accuracy0.1% of reading or 0.005"/0.1 mm whichever is greater

Buy Now

Item Description Price
Manual Lever Test Stand, 220 lb / 100 kg Capacity
$905.00
Manual Lever Test Stand with Distance Meter, 220 lb / 100 kg Capacity
$1,380.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
