KV-11-S Micro Movement Test Stand

Made in Japan
kv-11-s Micro Movement Test Stand
Click images to enlarge.
Capacity: 11 lb / 5 kg

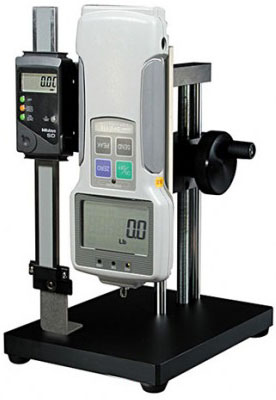

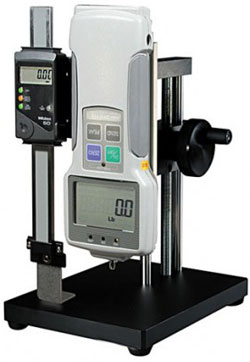

The KV-11-S Micro-Movement Force Measurement Test Stand is designed for small deflection measurements such as membrane switches and other small micro switches. The small size and light weight make the test stand portable, while the sturdy construction ensures accurate force and displacement measurement. The wheel operated design of the test stand allows users to make precise adjustments. When the wheel is released, the gauge stays in place. The standard model KV-11-S includes a highly accurate digital distance meter and accepts forces gauge with a maximum capacity of 11 lbf (5 kgf). The digital distance meter has PC output capabilities allowing the stand to measure force

Features

  • For compression tests only
  • Travel distance per knob rotation 1mm
  • Reduced backlash and fine movement for highly precise measurements

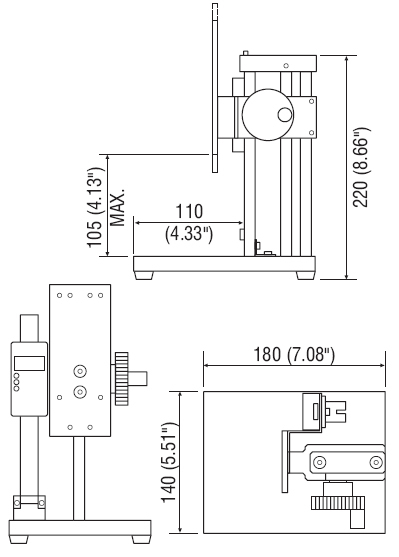

Dimensions

Related Products

zts / zta force gauge
Click image for more info
ZTA
Digital Force Gauge with high speed data output, up to 2000hz
- 30,000 data/sec ultra-high sampling rate; Processes and transmits 2,000 data/sec.
DST Digital Force Gauge
Click image for more info
DST
Digital Force Gauge
- Backlit LCD display with user-friendly menus
- 30,000/sec sampling rate
- USB and RS-232C output

Specifications

Capacity11 lbf (5 kgf)
Stroke2.75" (70 mm)
Travel Rate0.4" (1 mm) per revolution of hand wheel
DimensionsRefer to dimensions above
Compatible GaugesZT-Series and DS2
Warranty2 years

Distance Meter Specifications

Display Push button for inch/mm, zero set and on/off
Resolution 0.0005"/0.01 mm
Accuracy 0.1% of reading or 0.005"/0.1mm, whichever is greater

Buy Now

Item Description Price
Hand Wheel Test Stand with Digital Distance Meter
$1,870.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
