ES20 Mechanical Test Stand

Made in USA
es20 force test stand
Click images to enlarge.

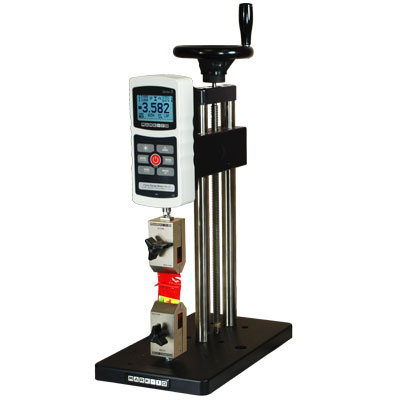

The ES20 manual hand wheel test stand is a compact solution for compression and tensile testing of small samples. The precision hand wheel allows fine control with greater consistency in testing results. An optional dial indicator kit displays up to 1" of displacement. Use the ES20 with our force gauges and grips to create complete testing systems.

*Force Gauge & Dial Indicator Not Included

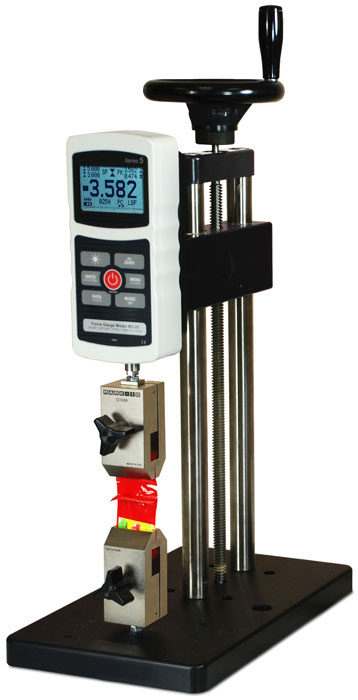

Shown with Series 5 Series Force Gauge & Dial Indicator


  • Force Gauge and Grips sold separately
  • Mounting holes for bench mounting
  • Optional 1" [25.4mm] dial indicator travel kit
  • Large baseplate with 5 #10-32 UNF holes for fixture mounting
  • Made in the USA
  • 3-Year Warranty


Related Products

Series 2 gauges feature a rugged aluminum housing with large, easily legible graphic display.
Click image for more info
Economical Digital Force Gauge
- Calculates peak tension and compression values
- 500 Hz sampling rate
M3 Digital Force Gauge
Click image for more info
Digital Force Gauge
- Includes traceable calibration certificate without data.
NIST traceable calibration certificate with data andISO-17025 certificate option is available
- High-speed 2,000 Hz sampling rate
Click image for more info
Dial Indicator / Distance Meter
- Displays up to 1" of displacement
- Resolution of 0.001"
Click image for more info
Digital Indictator / Distance Meter
- Displays up to 1" (25.4mm) of displacement
- Resolution of 0.0005" (0.01 mm)


Capacity100 lb (45 kg)
Stroke9" (229mm)
Travel Rate0.06" (1.5mm) per revolution

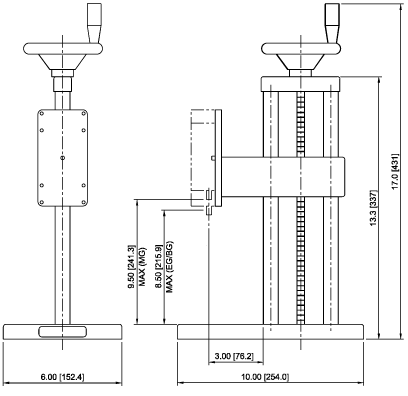

DimensionsRefer to dimensions above
Weight10 lb (4.5kg)
Compatible GaugesSeries 3 and Series 5
Warranty3 years


Buy Now

Item Description Price
Hand-Wheel Mechanical Force Test Stand, 100 lb Capacity

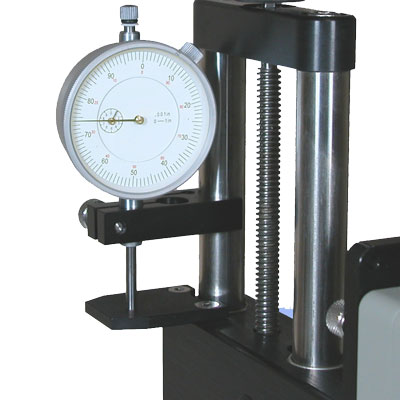

Dial indicator kit, 1" travel, brackets included

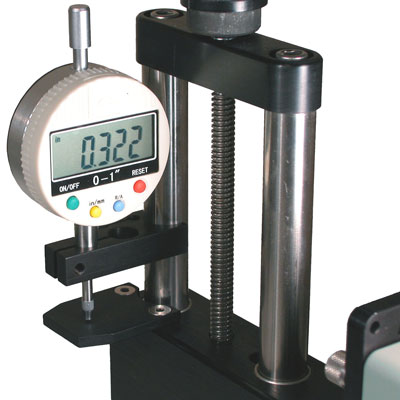

Digital indicator kit, 1" / 25 mm travel, brackets included
Set of brackets for indicator, indicator NOT included

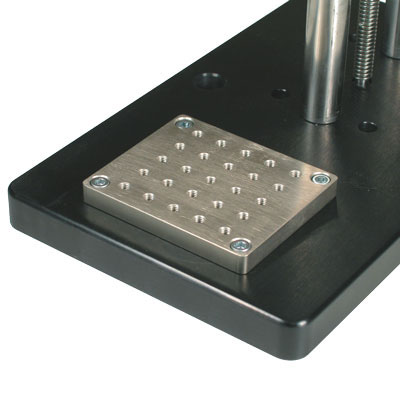

Base plate with threaded holes
Coupler, #10-32F to #10-32F
Mounting kit, R01/R03 to test stand (except ESM303, ESM303H, ESM1500, ESM1500S, ESM750S, and TSB100)
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
