ES10 Mechanical Test Stand

Made in USA
es10 force test stand
Click images to enlarge.
The new CHECKLINE ES10 is a hand-lever operated manual test stand with a maximum capacity of 100lbs.

*Force Gauge & Dial Indicator Not Included

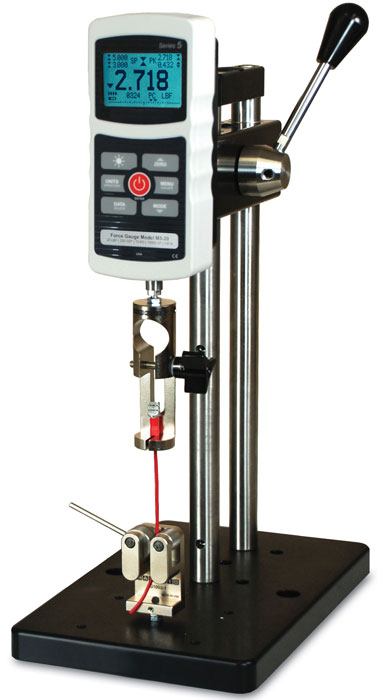

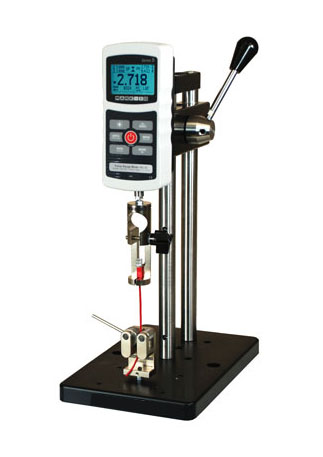

Shown with Series 5 Series Force Gauge & Dial Indicator

Features

  • Force Gauge and Grips sold separately.
  • Mounting holes for bench mounting
  • Loading lever can be placed in 3 positions for ease of operation
  • Large baseplate with 5 #10-32 UNF holes for fixture mounting
  • Optional 1" [25.4mm] dial indicator travel kit
  • Made in the USA
  • 3-Year Warranty

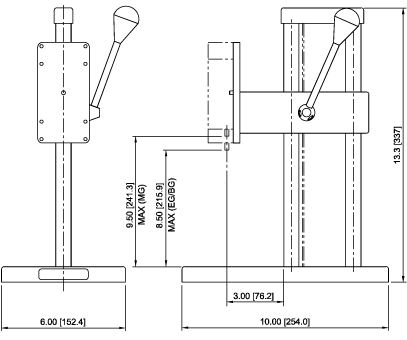

Dimensions

Related Products

M3 Digital Force Gauge
Click image for more info
Digital Force Gauge
- Includes traceable calibration certificate without data.
NIST traceable calibration certificate with data andISO-17025 certificate option is available
- High-speed 2,000 Hz sampling rate
es20 force test stand
Click image for more info
Mechanical Test Stand
- Mounting holes for bench mounting
- Optional 1" [25.4mm] dial indicator travel kit
Click image for more info
Dial Indicator / Distance Meter
- Displays up to 1" of displacement
- Resolution of 0.001"
Click image for more info
Digital Indictator / Distance Meter
- Displays up to 1" (25.4mm) of displacement
- Resolution of 0.0005" (0.01 mm)

Specifications

Capacity100 lb (45 kg)
Stroke9" (229mm)
DimensionsDownload PDF
Weight10 lb (4.5kg)
Compatible GaugesSeries 3 and Series 5
Warranty3 years

Downloads

Buy Now

Item Description Price
Lever Operated Mechanical Force Test Stand, 100 lb Capacity
$627.00
Accessories

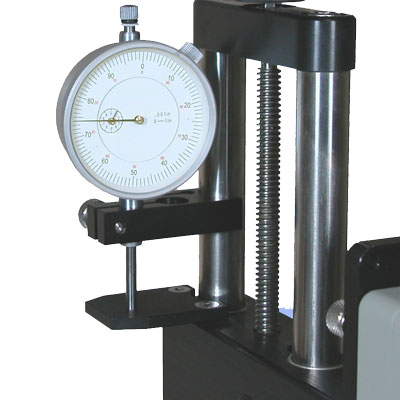

Dial indicator kit, 1" travel, brackets included
$170.00

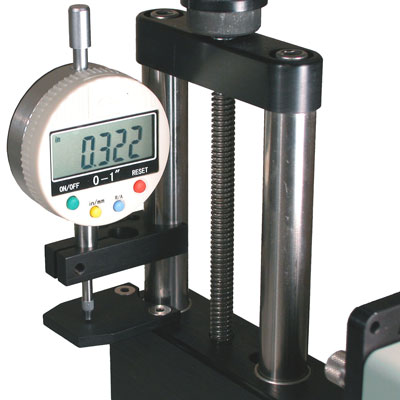

Digital indicator kit, 1" / 25 mm travel, brackets included
$390.00
AC1060

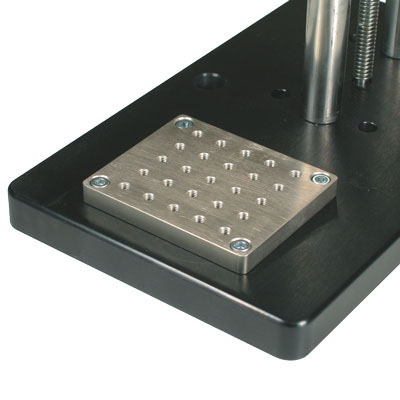

Base plate with threaded holes
$90.00
ES001NI
Set of brackets for indicator, indicator NOT included
$140.00
G1039
Coupler, #10-32F to #10-32F
$15.00
AC1018
Mounting kit, R01/R03 to test stand (except ESM303, ESM303H, ESM1500, ESM1500S, ESM750S, and TSB100)
$120.00
