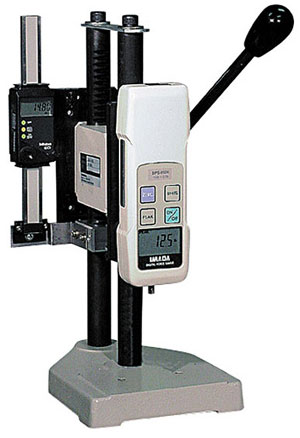

Model NLV-220 vertical manual lever test stands provide maximum versatility and reliability. Lever action provides quick, consistent testing. A pull down on the lever creates either compression or tension, depending on the model. Areturn spring resets the lever on compression models. The stands will accommodate any of the standard range force gauges and can be equipped with a precision digital distance meter. The optional extender plate increases clearance to 14" for larger samples. NLV-220 is perfect for compression and tension applications where rapid action is desired.

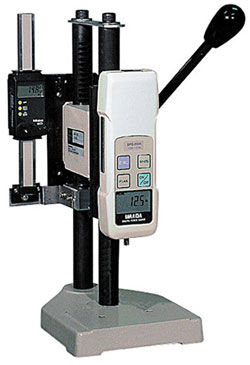

Opional digital distance meter available.
NLV-220-C Configured for compression. Pull the lever arm down and toward you and the gauge moves down to create compression.
NLV-220-C-S Configured for compression and has a distance meter.
NLV-220-T Configured for tension. Pull the lever arm down and toward you and the gauge moves up to create tension.
NLV-220-T-S Configured for tension and has a distance meter.
|Capactiy||220 Lbf (100 Kgf)|

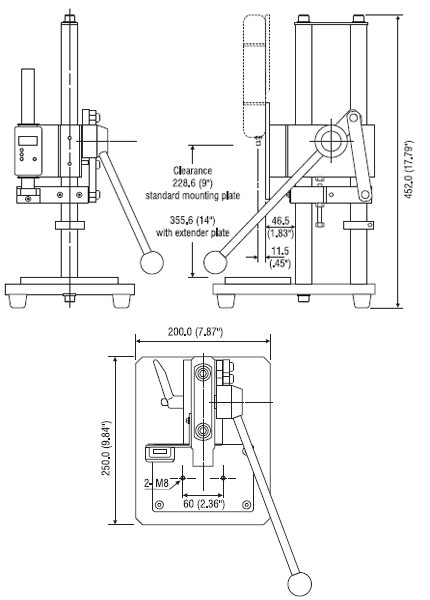

|Maximum Clearance||9" (14" with optional extender plate)|
NLV-220-C for Compression, Push Only
NLV-220-T for Tension, Pull Only
NLV-220-C-S for Compression, Push Only with Distance Meter
NLV-220-T-S for Tension, Pull Only with Distance Meter
