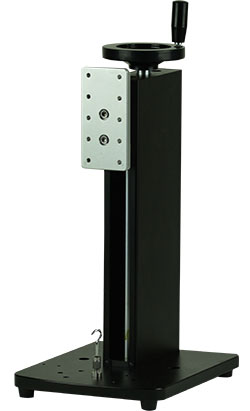

FGS-250W Manual Hand Wheel Operated Test Stand

FGS-250W Manual Test Stand
Click images to enlarge.
The FGS-250W is specifically designed for tensile and compressive force testing and destructive or failure testing for research applications in a multitude of industries. The FGS-250W movement is created from a trapezoidal screw drive with integral nut. Combined with its top-mounted wheel that smoothly turns with minimal effort, fine, stable resolution is achieved during operation.

The FGS-250W offers dual functionality by being able to be used in either the vertical or horizontal positions with no added equipment required. Simply lay unit on its back and level with the adjustment screw and you now can run horizontal tests. The FGS-250W's compact footprint and lightweight frame enables ease of movement and usage in a myriad of locations.

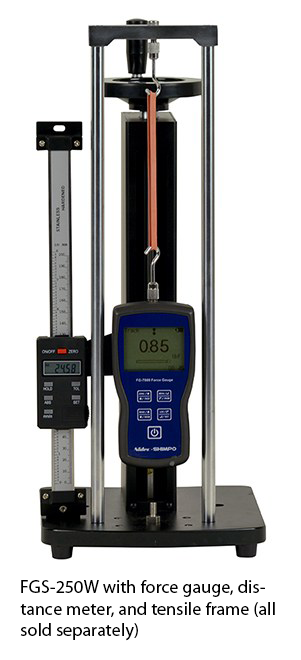

Optional accessories include a Digital Scale which accurately tracks distance movement and a Tensile Frame adapter kit which enables extended clearance for tensile tests. We offers a variety of grips and fixtures to create the required set-up for your test parameters. The FGS-250W's maximum 250 lbf (125 kgf) capacity combined with the precision wheel movement operation yields an ideal manual test stand for a full range of lab or production line testing applications.

Features

  • Flexible Vertical or Horizontal operation
  • Compact footprint & lightweight enables usage in most locations
  • Fine movement from the top-mounted wheel aids in precision testing
  • 250 lbf (125 kg) maximum testing capacity
  • Digital Scale kit available for high resolution movement recording
  • Optional Tensile Frame Kit extends movement stroke to over 10 inches

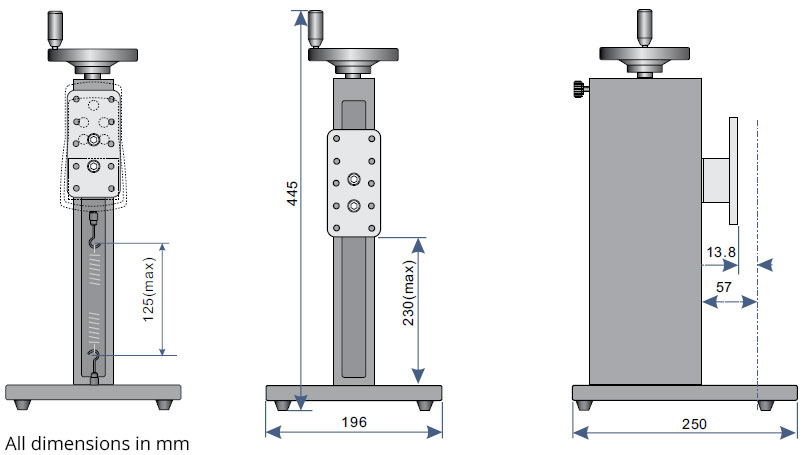

Dimensions

Related Products

Shimpo FG-3000 Digital Force Gauge
Click image for more info
FG-3000 Digital Force Gauge
- 1000 Hz Sample Rate combined with +/-0.3% F.S. accuracy provides fast sampling producing great resolution and more accurate results
- 500 point data collection capability can be viewed on display, sent to optional printer, or uploaded to software package for further analysis
FG-7000 force gauge
Click image for more info
Digital Force Gauge
- 1000 Hz Sample Rate combined with &0.2% F.S. accuracy provides fast sampling producing great resolution and more accurate results
- 1000 point data collection capability can be viewed on display, sent to optional printer, or uploaded to software package for further analysis

Specifications

CapacityUp to 250 lbf (125 kg); 143 lbf (65 kg) with optional Tensile frame
Travel0.12" (3 mm)/turn
Stroke9" (230 mm) max.; 10.24" (260 mm) max. with Tensile Frame kit.
Dimensions9.8 x 7.7 x 17.5" (250 x 196 x 445 mm)
Weight15.4 lb (7 kg)
Warranty1 year

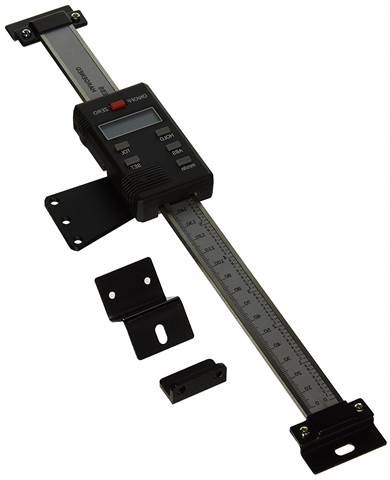

FGS-250W-DSK Distance Meter Specifications
Range7.87" / 200mm
Resolution0.0005" / 0.01mm
PowerSR44 Battery (1)

Downloads

Buy Now

Item Description Price
Hand Wheel Operated Test Stand, Vertical or Horizontal Operation
$495.00
Accessories

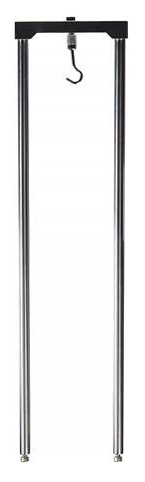

FGS-250W-TFK
Tensile Frame Adapter Kit for FGS-250W Test Stand
$65.00
FGS-250W-DSK
Digital Length/Distance Scale for FGS-250W Test Stand
$195.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
