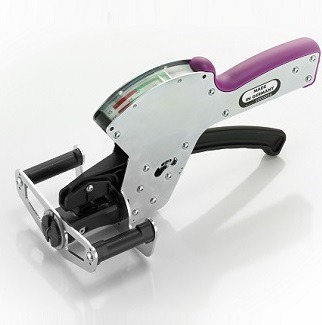

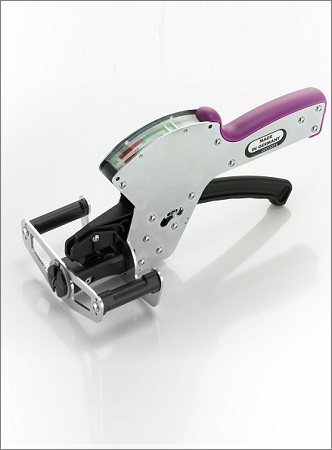

STF-3550 Strap Tension Meter

Made in Germany
STF-3550
Click images to enlarge.

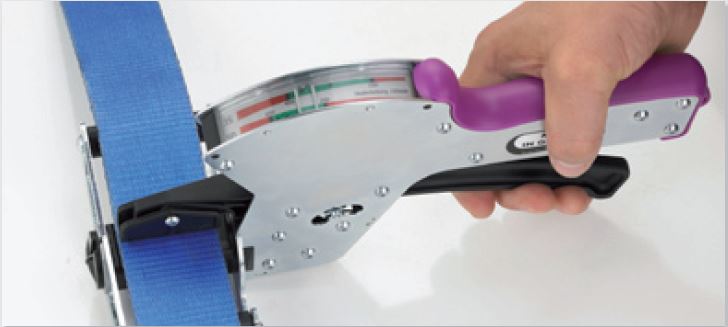

Strap Tension Meter to measure the tension of 35 mm or 50 mm wide lashing straps.

It meets the requirements of:

  • VDI Guideline 2700 Securing cargo on road vehicles
  • DIN EN 12195-1 Calculating the lashing forces
  • DIN EN 12195-2 Lashing straps made from synthetic fibers
Certified by: TUL-LOG 01-2012

Features

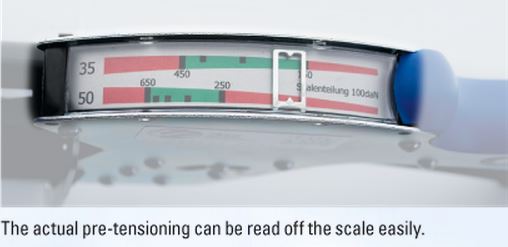

  • Scale values ​​at straps width 35 mm:
    150 daN, 250 daN, 350 daN, 450 daN
  • Scale values ​​at straps width 50 mm:
    250 daN, 350 daN, 450 daN,550 daN, 650 daN
  • Suitable for lashing with a strap width of 35 mm or 50 mm.
  • Easy handling, quick to use

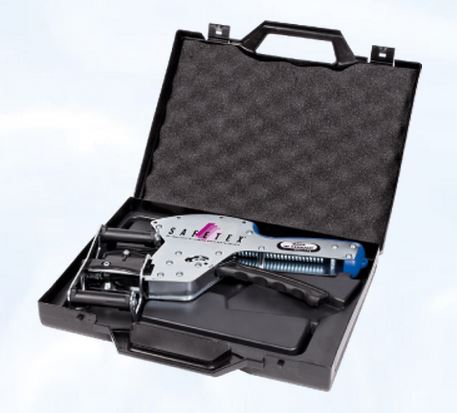

Complete Kit

Kit Includes
  • STF-3550 Strap Tension Meter
  • Protection and storage case
  • Manual

Downloads

Specifications

For lashes with width35mm & 50mm
Meets requirementsVDI Guideline 2700, DIN EN 12195-1, DIN EN 12195-2
Certified byTUL-LOG 01-2012
Scale values ​​at straps width 35 mm150 daN, 250 daN, 350 daN, 450 daN
Scale values ​​at straps width 50 mm250 daN, 350 daN, 450 daN,550 daN, 650 daN
Weight1.43 kg

Buy Now

Item Description Price
Strap Tension Meter for 35mm and 50mm straps - 134086
$510.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
