EDM Wire EDM Tension Meter

Made in Germany
Click images to enlarge.

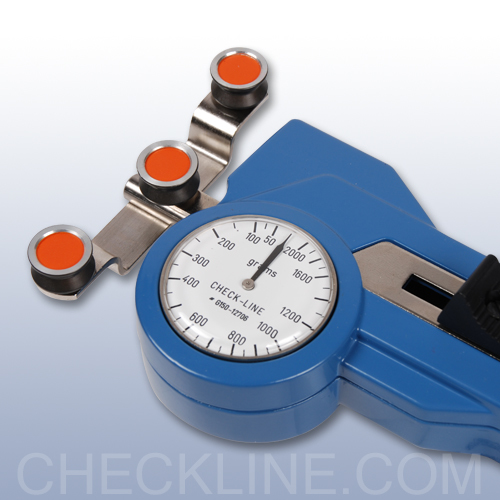

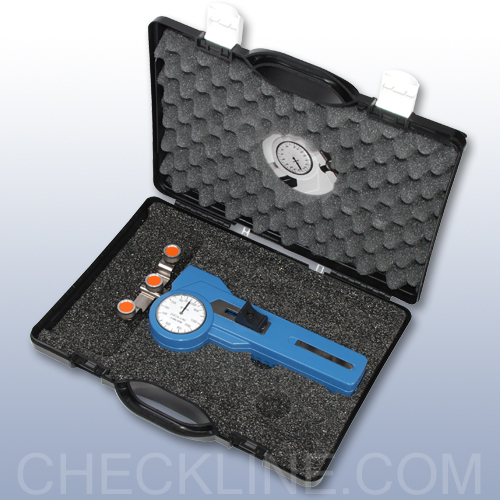

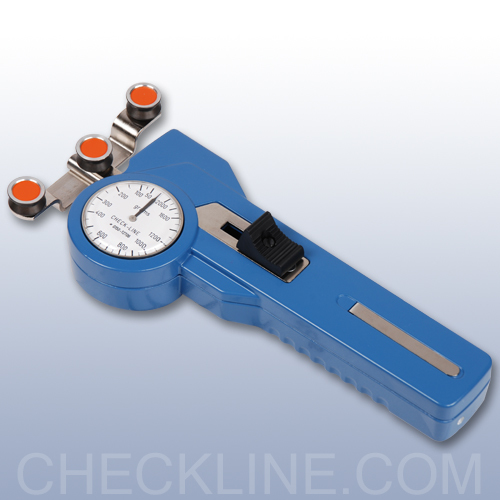

The DX2-EDM Hand-Held Mechanical Tension Meters are designed to measure the tension on all current wire EDM machines with using a wire diameter of approx. 0.25 mm. These models are used throughout the world and considered the standard tension meter for the industry.

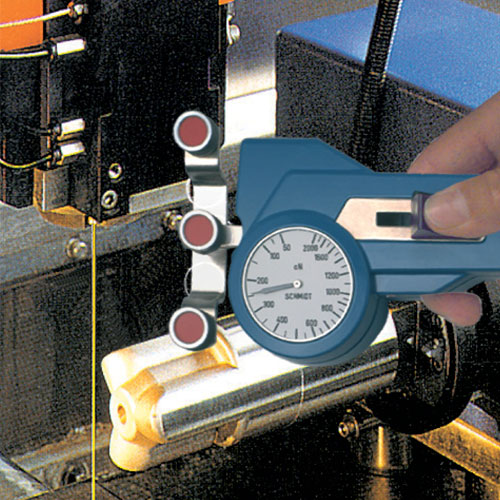

The correct erosion wire tension reduces wire oscillation and guarantees a pinpoint accuracy of your machines. Always check the tension in calibration mode on the moving wire. Make sure the generator is switched off for the tension check.

Features

  • Easy-to-read analog scale
  • Simple handling
  • Special versions for specific EDM machines are available
  • Measuring range 2000 g, 3000 g or 4000 g
  • Calibration in cN is available

Tension Ranges

ModelRangeRoller distance
c:c mm
Material
Thickness
Compensator
Calibration Material
DX2-2000-EDM50 - 2000 cN75NoPA: 0.30 mm Ø
DX2-2000-EDM-G50 - 2000 g75NoPA: 0.30 mm Ø
DX2-3000-EDM100 - 3000 cN75NoPA: 0.30 mm Ø
DX2-3000-EDM-G100 - 3000 g75NoPA: 0.30 mm Ø
DX2-4000-EDM200 - 4000 cN100YesPA: 0.40 mm Ø
DX2-4000-EDM-G200 - 4000 g100YesPA: 0.40 mm Ø
For meter calibrated in Grams add "-G" to part number, ie: DX2-2000-EDM-G

Material thickness compensator: For better accuracy the material to be measured or a similar material with the same diameter should be inserted (only model DX2-4000-EDM).

Dimensions

Dial Faces

DX2-EDM Sample Dial Faces
DX2-EDM Sample Dial Faces

Specifications

Accuracy± 1% Full scale or ± 1 scale graduation mark

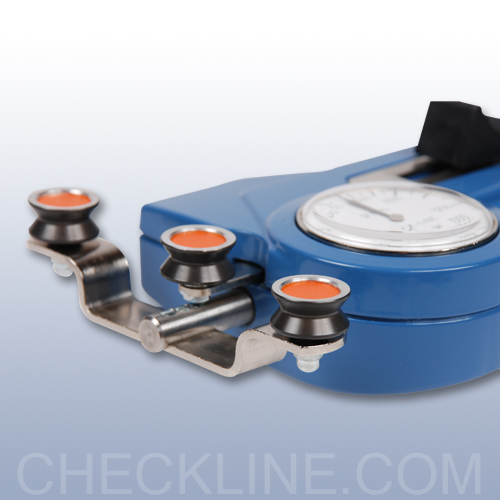

RollersMaterial : Hardcoated aluminum Diameter: 12 mm
Scale Diameter41 mm
Temperature Range8 - 45 °C
Humidity Maximum85% RH
Housing MaterialAluminum die casting
Dimensions215 mm x 90 mm x 44 mm (L x W x H)
Weight(net/gross) approx. 500 g / 1000 g
