U-Force Slim-line Mechanical Force Gauge

Made in USA
U-Force Slim-line Mechanical Force Gauge
Click images to enlarge.
The Model U Force Gauge is an accurate (±1% of full range) mechanical compression measurement instrument. Its slim-line design has repeatedly proven valuable in installations where space is at a premium.

The versatility of this simple instrument is demonstrated by the fact that it can be used as a hand-held device, permanently mounted on a flat surface plate, or used in test fixtures.

The Model U Force Gauge employs a deflection beam machined from aircraft quality alloy steel and heat-treated to develop optimum strength and spring characteristics. A precision dial indicator is mounted at the null point of this beam.

The compression force is normally applied against a single pressure fitting mounted on the upper half of the beam. When load is exerted, the beam moves downward causing a slanted anvil on the free end to push against the indicator plunger. The indicator reading is a direct representation of the applied load.

U-Force Gauges are available for measurement in pounds or kilograms. There are 6-pound capacities ranging from 25 x .25 to 5,000 x 50 lb. The 4 kilogram capacities range from 10 x .1 to 500 x 5 kg.

We also offers high-capacity gauges with pounds capacities from 500 to 5,000 lb and a metric model with a capacity of 500 kg. High-capacity gauges all have a flat-bottom design.

NIST Traceable Calibration Certificate is included.

24-month Limited Manufacturer's Warranty

Made in the USA

Force Ranges

ModelCapacityResolution
30354-001725 lbf0.25 lb
30354-0033100 lbf1 lb
30354-0058250 lbf2.5 lb
30482-0020500 lbf5 lb
30482-00531,000 lbf10 lb
30478-00345,000 lbf50 lb
30354-006610 kgf0.1 kg
30354-008250 kgf0.5 kg
30354-0090100 kgf1 kg
30482-0079500 kgf5 kg

Options

  • Zero position - The zero position on the indicator dial can be factory positioned at 12 o'clock, 3 o'clock, 6 o'clock, or 9 o'clock. The standard position is the 12 o'clock position.

  • Maximum load pointer — Model U Force Gauges can include a maximum pointer which remains at peak load until it is reset.

  • Shockless dial indicator — Offers added protection in applications where force is applied or released rapidly.

  • Dial orientation — The dial indicator can be factory positioned at 0° (standard), 90°, 180°, 270° clockwise. Photos on this page show standard dial orientation.

Note: Maximum Pointer and Shockless Dial Indicator cannot be offered on the same unit.

How the U-Force Works

U-Force Slim-line Mechanical Force Gauge Callout
1. Deflection beam
2. Dial indicator with zero at standard 6:00 position
3. Pressure fitting
4. Maximum load pointer (optional)
5. Indicator plunger
6. Slanted Anvil

Compression force is normally applied against a single pressure fitting mounted on the upper half of the beam. (For accurate calibration, designate the type of pressure fitting you wish to use with the U Force Gauge. They are of four types: domed, cupped, flat, or a flat nylon insert. (Flat bottom gauges require only one fitting)

When load is exerted, the beam moves downward causing a slanted anvil on the free end to push against the indicator plunger. The indicator reading is a direct representation of the applied load.

Pressure Fittings

Load is applied tot he U-Force through harded pressure fittings.

Replacement fittings for:
Recessed-bottom - two fittings
Float-bottom - - one fitting

Fittings are not included. Choose fittings from the below list.

For 25 to 250 lb (10 to 100 kg) capacity gauges:

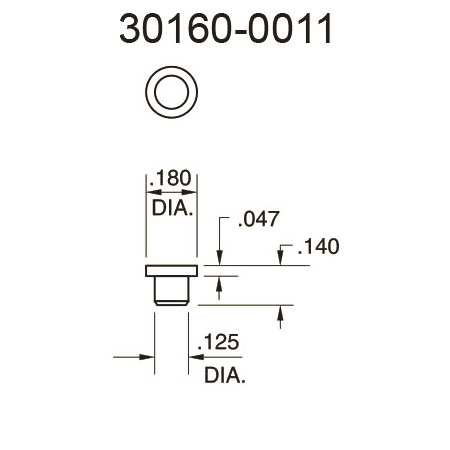

30160-0011 Flat Surface Pressure Fitting
30160-0011
Flat Surface Pressure Fitting
Click image to enlarge.

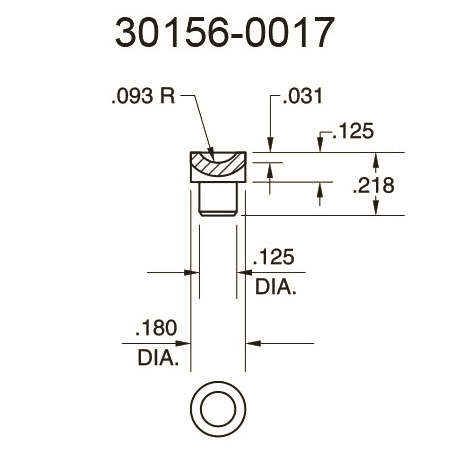

30156-0017 Cupped Surface Pressure Fitting
30156-0017
Cupped Surface Pressure Fitting
Click image to enlarge.

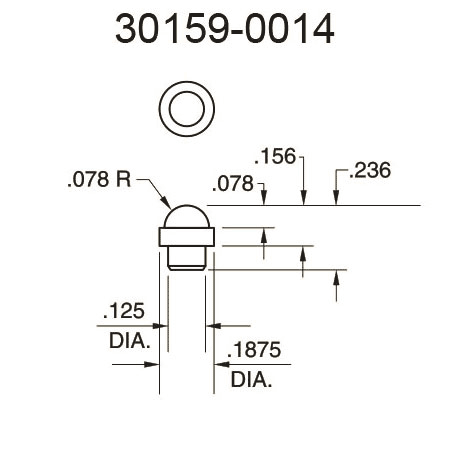

30159-0014 Domed Surface Pressure Fitting
30159-0014
Domed Surface Pressure Fitting
Click image to enlarge.

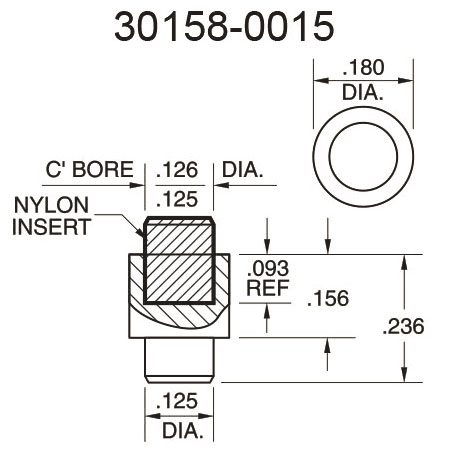

30158-0015 Nylon Insert Pressure Fitting
30158-0015
Nylon Insert Pressure Fitting
Click image to enlarge.

For 500 lb, 1,000 lb and 500 kg capacity gauges:

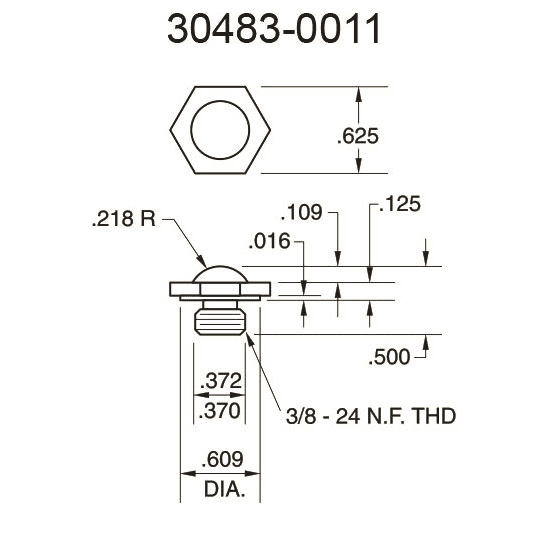

30483-0011 Domed Surface Pressure Fitting
30483-0011
Domed Surface Pressure Fitting
Click image to enlarge.

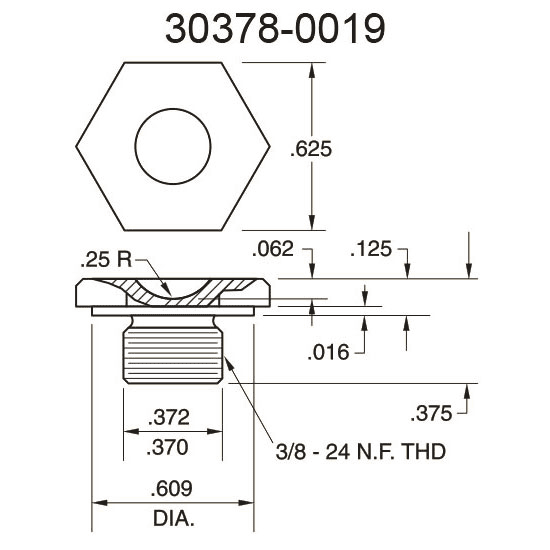

30378-0019 Cupped Surface Pressure Fitting
30378-0019
Cupped Surface Pressure Fitting
Click image to enlarge.

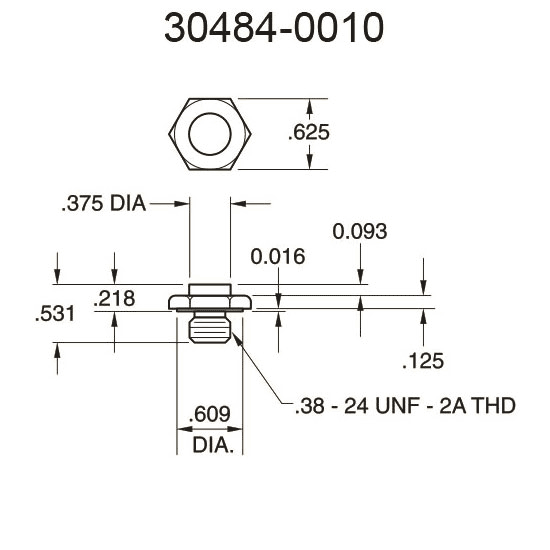

30484-0010 Flat Surface Pressure Fitting
30484-0010
Flat Surface Pressure Fitting
Click image to enlarge.

For 5,000 lb capacity gauges:

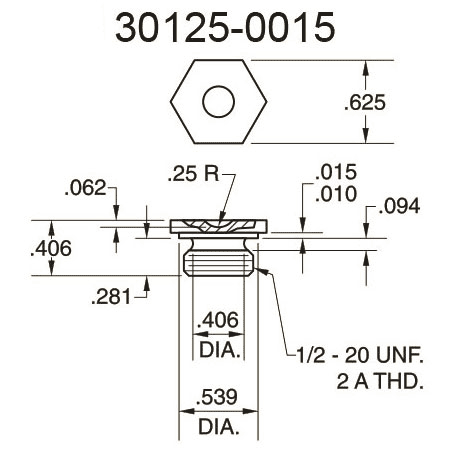

30125-0015 Cupped Surface Pressure Fitting
30125-0015
Cupped Surface Pressure Fitting
Click image to enlarge.

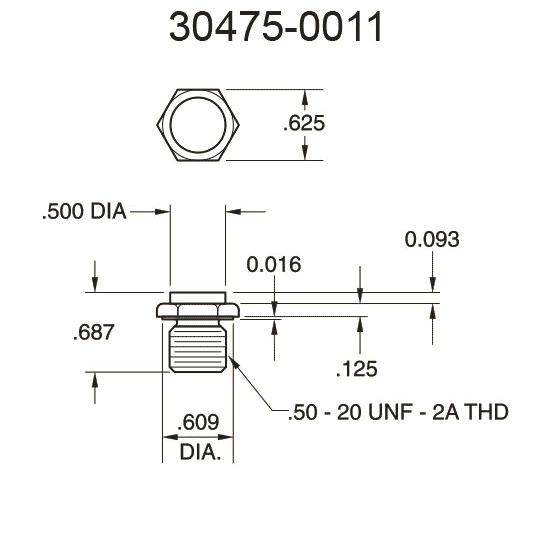

30475-0011 Flat Surface Pressure Fitting
30475-0011
Flat Surface Pressure Fitting
Click image to enlarge.

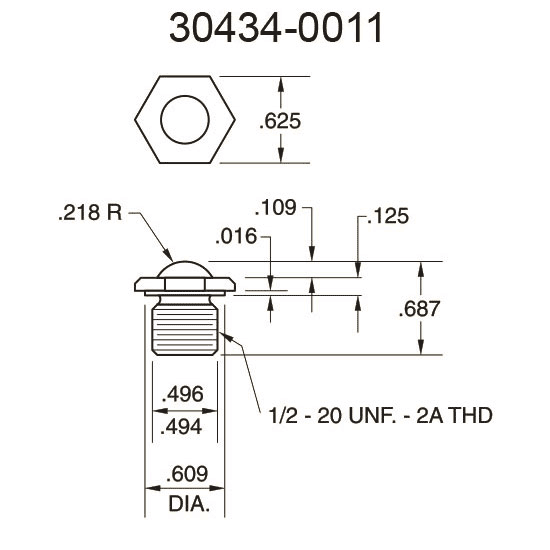

30434-0011 Domed Surface Pressure Fitting
30434-0011
Domed Surface Pressure Fitting
Click image to enlarge.

Dimensions

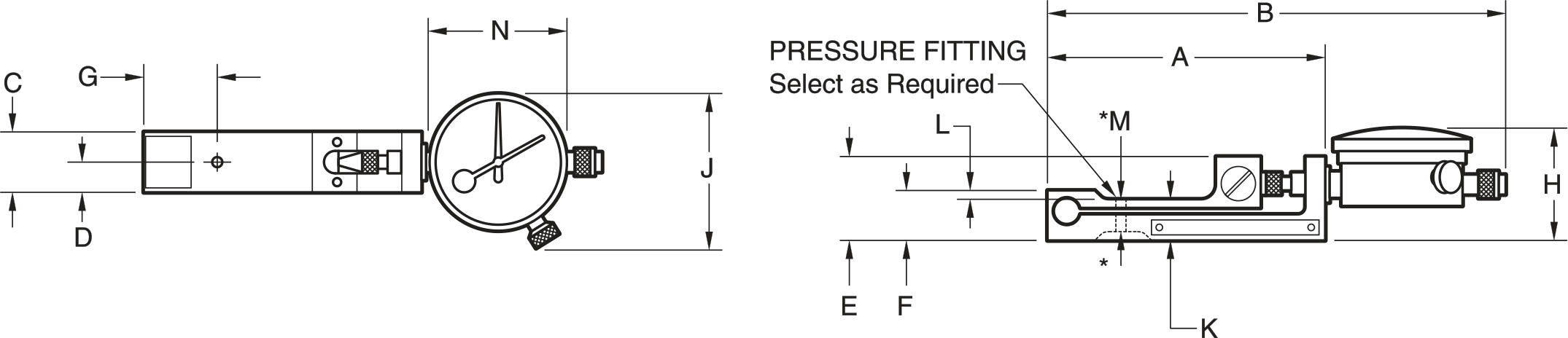

U-Force Low Range Dimensional Drawing

Low-Range Flat-Bottom Model U Force Gauge

Part No. A B C D E F G H J K L M
30354-0017
30354-0066
30354-0033
30354-0082
30354-0058
30354-0090
3.28"
83.3 mm
5.50"
139.6 mm
0.73"
18.5 mm
0.36"
9.1 mm
0.97"
24.6 mm
0.56"
14.2 mm
0.90"
22.8 mm
1.40"
35.5 mm
1.87"
47.5 mm
0.46"
11.7 mm
0.094"
2.4 mm
1.67"
42.4 mm

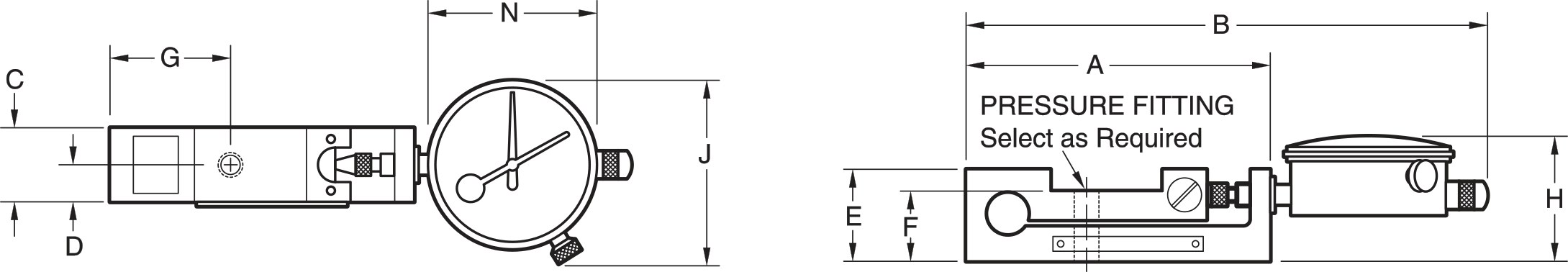

U-Force High Range Dimensional Drawing

High-Range Flat Bottom Model U Force Gauge

Part No. A B C D E F G H J N
30482-0020
30482-0053
30482-0079
3.87"
98.0 mm
6.75"
171.3 mm
0.98"
24.9 mm
0.49"
12.4 mm
1.25"
31.5 mm
0.92"
23.6 mm
1.52"
38.6 mm
1.67"
42.4 mm
2.44"
63.5 mm
2.25"
57.2 mm
30478-0034 4.74"
120.1 mm
7.94"
201.5 mm
0.98"
24.9 mm
0.49"
12.4 mm
1.72"
43.7 mm
1.41"
35.5 mm
2.06"
52.3 mm
2.06"
52.3 mm
2.88"
72.8 mm
2.75"
69.9 mm
