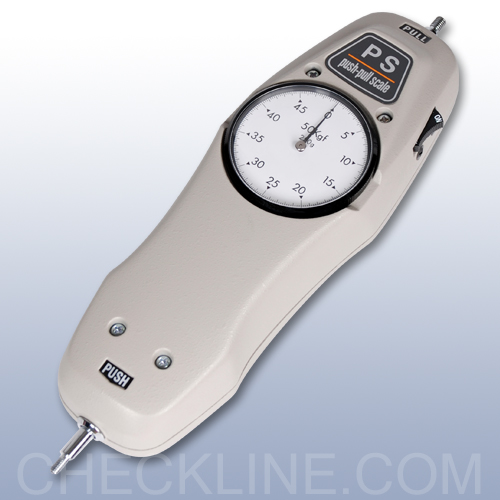

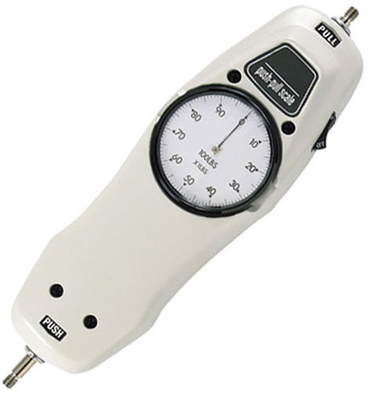

PS High Precision Mechanical Force Gauge

Made in Japan
PS Force Gauge
Click images to enlarge.
Accuracy of ± 0.2%
23 Ranges Available

The PS mechanical force gauge features rugged construction and excellent accuracy making it ideal for tension and compression quality control measurements. Many ranges are offered, calibrated in Pounds, Kilograms, or Newtons.

Features

  • Includes NIST Traceable Calibration Certificate
  • Ideal for push / pull measurements in all environments

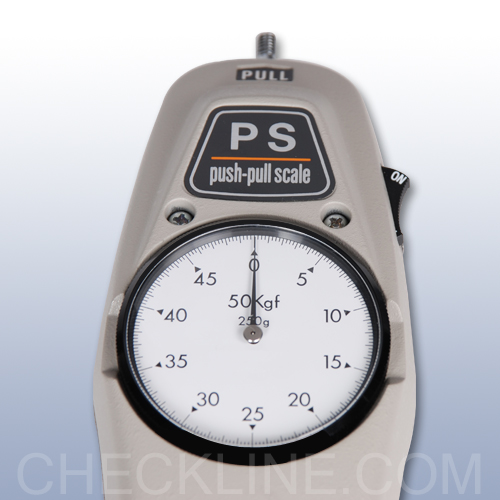

  • Real Time force display with peak capture
  • Free manufacturer´s calibration report
  • Full set of accessories and carrying case included
  • Zero Tare Ring to zero the gauge in each position
  • Hand-held use or can be mounting a on test stand
  • ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
  • Made in Japan
  • 2 Year Warranty

Related Products

FB Force Gauges
Click image for more info
FB
Mechanical Force Gauge
- Ideal for push / pull measurements in all environments
- Real Time force display with peak capture
DST Digital Force Gauge
Click image for more info
DST
Digital Force Gauge
- Backlit LCD display with user-friendly menus
- 30,000/sec sampling rate
- USB and RS-232C output

Force Ranges

ModelCapacity (resolution)
PS-32OZ32 ozf (0.25 ozf)
PS-80OZ80 ozf (1 ozf)
PS-22 lb (0.01 lb)
PS-55 lb (0.025 lb)
PS-1010 lb (0.05 lb)
PS-2020 lb (0.1 lb)
PS-3030 lb (0.2 lb)
PS-5050 lb (0.25 lb)
PS-100100 lb (0.5 lb)
PS-0.5KG500 gf (2.5 gf)
PS-1KG1 kg (5 g)
PS-2KG2 kg (10 g)
PS-3KG3 kg (20 g)
PS-5KG5 kg (25 g)
PS-10KG10 kg (50 g)
PS-30KG30 kg (200 g)
PS-20KG20 kg (100 g)
PS-50KG50 kg (250 g)
PS-10N10 N (0.05 N)
PS-20N20 N (0.1 N)
PS-30N30 N (0.2 N)
PS-50N50 N (0.25 N)
PS-100N100 N (0.5 N)
PS-200N200 N (1 N)
PS-300N300 N (2 N)
PS-500N500 N (2.5 N)
Displacement at full scale capacity is 10mm

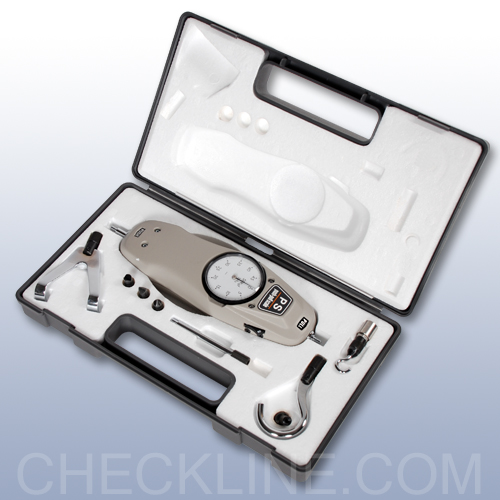

Complete Kit

The complete kit includes the gauge, five measuring tips including; flathead, cone, chisel notched, small hook, large hook, Y-hook and three-inch extension rod, NIST Traceable Calibration Certificate and instruction manual -- all supplied in a fitted hard plastic carrying case.

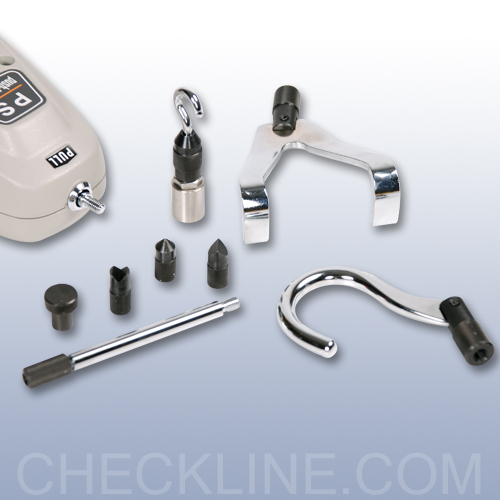

Standard Attachments

PS Force Gauge accessories

Special Attachments

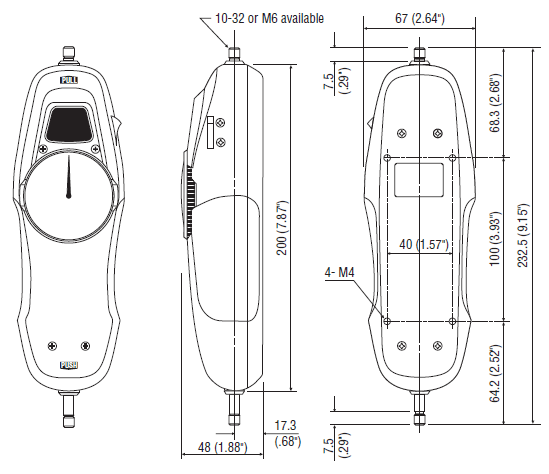

Dimensions

Specifications

Accuracy± 0.2% of Full Scale
Shaft Thread Size#10/32 Standard
M6 is available as a no cost option.

Downloads

Buy Now

Item Description Price
PS Mechanical Force Gauge, 32 oz Capacity
$470.00
PS Mechanical Force Gauge, 80 oz Capacity
$470.00
PS Mechanical Force Gauge, 2 lb Capacity
$470.00
PS Mechanical Force Gauge, 5 lb Capacity
$470.00
PS Mechanical Force Gauge, 10 LB Capacity
$470.00
PS Mechanical Force Gauge, 20 lb Capacity
$470.00
PS Mechanical Force Gauge, 30 lb Capacity
$470.00
PS Mechanical Force Gauge, 50 lb Capacity
$470.00
PS Mechanical Force Gauge, 100 lb Capacity
$470.00
NO LONGER AVAILABLE PS Mechanical Force Gauge, 0.5 kg Capacity - This item is no longer available. There is no replacement.
$
PS Mechanical Force Gauge, 1 kg Capacity
$470.00
PS Mechanical Force Gauge, 2 kg Capacity
$470.00
PS Mechanical Force Gauge, 3 kg Capacity
$470.00
PS Mechanical Force Gauge, 5 kg Capacity
$470.00
PS Mechanical Force Gauge, 10 kg Capacity
$470.00
PS Mechanical Force Gauge, 20 kg Capacity
$470.00
PS Mechanical Force Gauge, 30 kg Capacity
$470.00
PS Mechanical Force Gauge, 50 kg Capacity
$470.00
PS Mechanical Force Gauge, 10 N Capacity
$470.00
PS Mechanical Force Gauge, 20 N Capacity
$470.00
PS Mechanical Force Gauge, 30 N Capacity
$470.00
PS Mechanical Force Gauge, 50 N Capacity
$470.00
PS Mechanical Force Gauge, 100 N Capacity
$470.00
PS Mechanical Force Gauge, 200 N Capacity
$470.00
PS Mechanical Force Gauge, 300 N Capacity
$470.00
PS Mechanical Force Gauge, 500 N Capacity
$470.00
Accessories
ISO-17025
ISO-17025 Accredited Calibration with Certificate
$160.00
OH-1
Double Sided Handle For Digital Force Gauges up to 220 lbf
$85.00
