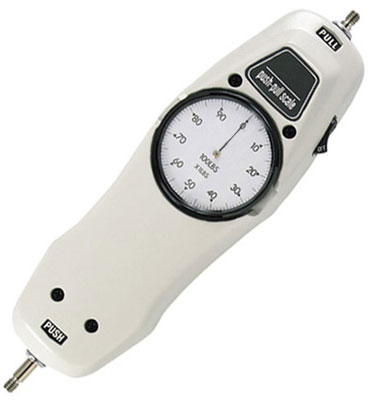

FB Mechanical Force Gauge

Made in Japan
FB Force Gauge
Click images to enlarge.
Accuracy of ± 0.3%

Rugged construction and excellent accuracy make these force gauges ideal for tension and compression quality control measurements. Many ranges are offered, calibrated in Pounds, Kilograms, or Newtons.

Features

  • Includes NIST Traceable Calibration Certificate
  • Ideal for push / pull measurements in all environments
  • Real Time force display with peak capture
  • Free manufacturer´s calibration report
  • Zero Tare Ring to zero the gauge in each position
  • Full set of accessories and carrying case included
  • Hand-held use or can be mounting a on test stand
  • ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
  • Made in Japan
  • 2 Year Warranty

Related Products

DST Digital Force Gauge
Click image for more info
DST
Digital Force Gauge
- Backlit LCD display with user-friendly menus
- 30,000/sec sampling rate
- USB and RS-232C output
PS Force Gauge
Click image for more info
PS
High Precision Mechanical Force Gauge
- Ideal for push / pull measurements in all environments
- Real Time force display with peak capture

Force Ranges

ModelCapacity (resolution)
FB-32OZ32 ozf (0.25 ozf)
FB-80OZ80 ozf (1 ozf)
FB-22 lb (0.02 lb)
FB-55 lb (0.05 lb)
FB-1010 lb (0.1 lb)
FB-2020 lb (0.2 lb)
FB-3030 lb (0.25 lb)
FB-5050 lb (0.5 lb)
FB-100100 lb (1 lb)
FB-150*150 lb (1 lb)
FB-1KG1 kg (10 g)
FB-2KG2 kg (20 g)
FB-3KG3 kg (25 g)
FB-5KG5 kg (50 g)
FB-10KG10 kg (100 g)
FB-20KG20 kg (200 g)
FB-30KG30 kg (250 g)
FB-50KG50 kg (500 g)
FB-10N10 N (0.1 N)
FB-20N20 N (0.2 N)
FB-30N30 N (0.25 N)
FB-50N50 N (0.5 N)
FB-100N100 N (1 N)
FB-200N200 N (2 N)
FB-300N300 N (2.5 N)
FB-500N500 N (5 N)
Displacement at full scale capacity is 10mm
*FB-150 accuracy is 0.5% Full Scale

Complete Kit

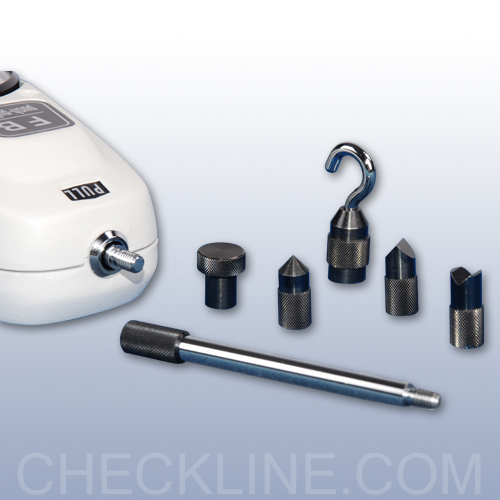

The complete kit includes the gauge, hard carrying case, five measuring attachments (flat head, conical, chisel, notched, and small hook) as well as a 3 inch extension shaft and NIST Traceable Calibration Certificate.

Standard Attachments

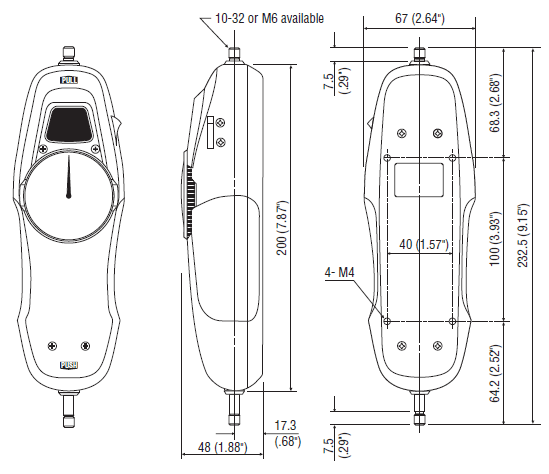

Dimensions

Specifications

Accuracy± 0.3% of Full Scale
Shaft Thread Size#10/32 for all model except FB-150 which is M6.
for all other models M6 is available as a no cost option.

Downloads

Buy Now

Item Description Price
Mechanical Force Gauge, 32 oz Capacity
$430.00
Mechanical Force Gauge, 80 oz Capacity
$430.00
Mechanical Force Gauge, 2 lb Capacity
$430.00
Mechanical Force Gauge, 5 lb Capacity
$430.00
Mechanical Force Gauge, 10 lb Capacity
$430.00
Mechanical Force Gauge, 20 lb Capacity
$430.00
Mechanical Force Gauge, 30 lb Capacity
$430.00
Mechanical Force Gauge, 50 lb Capacity
$430.00
Mechanical Force Gauge, 100 lb Capacity
$430.00
Mechanical Force Gauge, 150 lb Capacity
$550.00
Mechanical Force Gauge, 1 kg Capacity
$430.00
Mechanical Force Gauge, 2 kg Capacity
$430.00
Mechanical Force Gauge, 3 kg Capacity
$430.00
Mechanical Force Gauge, 5 kg Capacity
$430.00
Mechanical Force Gauge, 10 kg Capacity
$430.00
Mechanical Force Gauge, 20 kg Capacity
$430.00
Mechanical Force Gauge, 30 kg Capacity
$430.00
Mechanical Force Gauge, 50 kg Capacity
$430.00
Mechanical Force Gauge, 10 N Capacity
$430.00
Mechanical Force Gauge, 20 N Capacity
$430.00
Mechanical Force Gauge, 30 N Capacity
$430.00
Mechanical Force Gauge, 50 N Capacity
$430.00
Mechanical Force Gauge, 100 N Capacity
$430.00
Mechanical Force Gauge, 200 N Capacity
$430.00
Mechanical Force Gauge, 300 N Capacity
$430.00
Mechanical Force Gauge, 500 N Capacity
$430.00
Accessories
OH-1
Double Sided Handle For Digital Force Gauges up to 220 lbf
$85.00
ISO-17025
ISO-17025 Accredited Calibration with Certificate
$160.00
