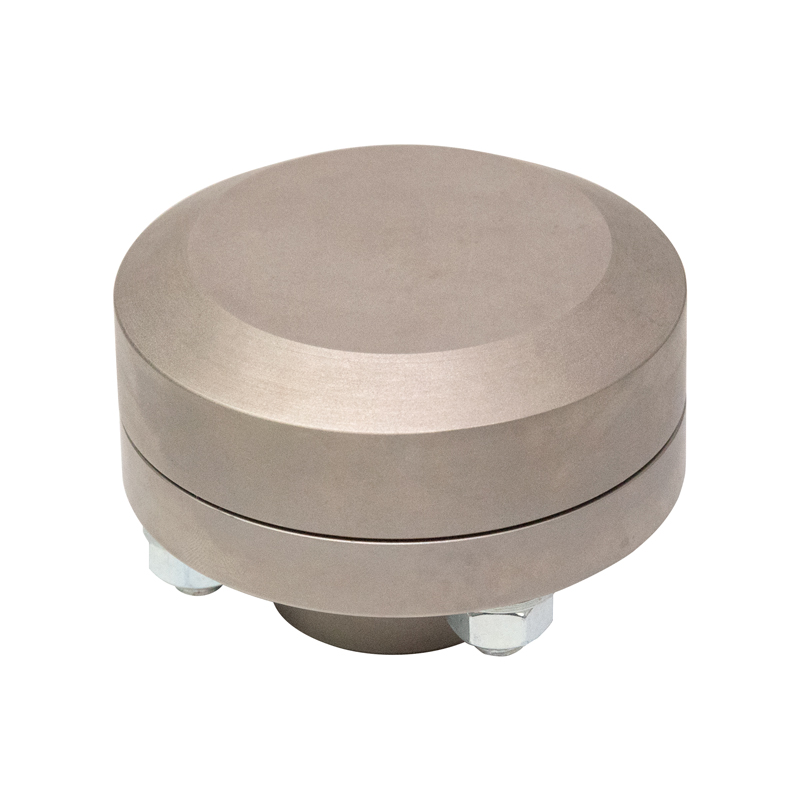

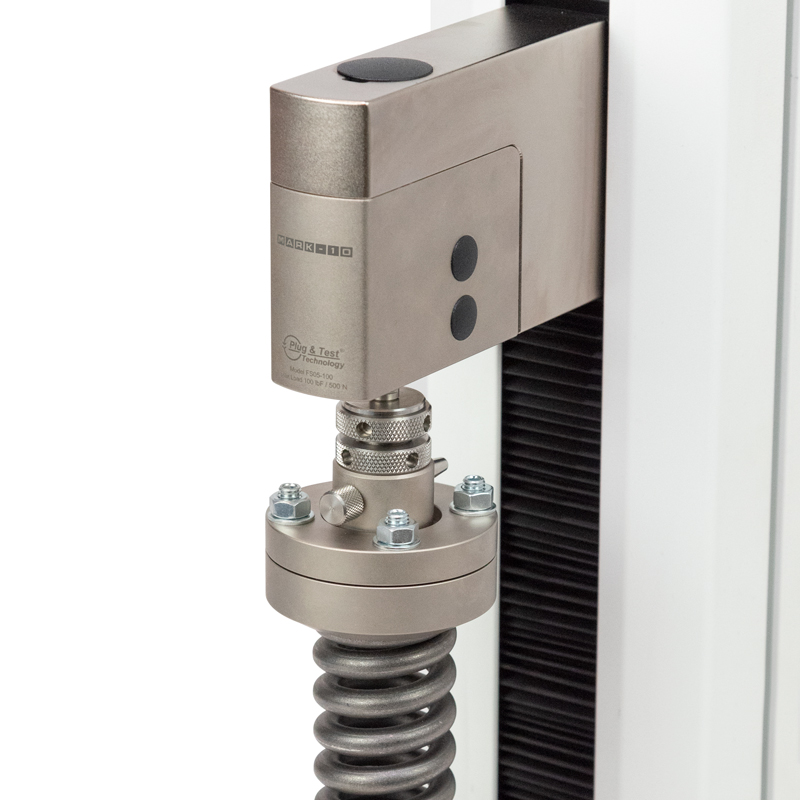

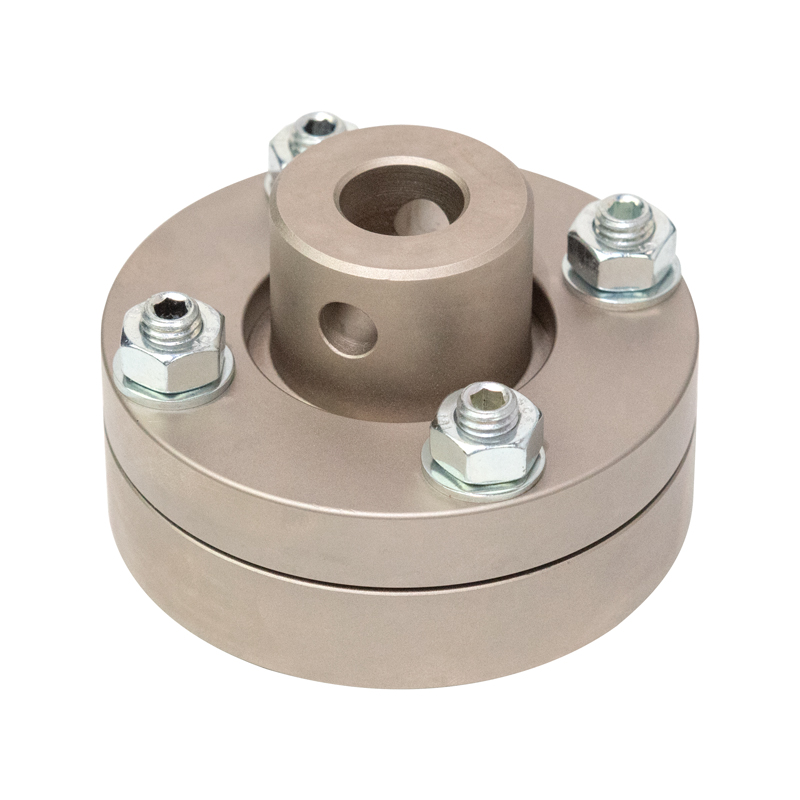

This self-aligning compression plate adjusts to the angle of the sample via four adjustable screws and nuts. Ideal for ensuring parallelism and complete sample engagement, particularly for low-deflection springs and other materials with high spring rates. Integrated eye end mount. Eye end adapters are available to adapt to Mark-10 load cells, force gauges, and test stands.
- Self-aligning compression plate ensures that load is applied in-line with the sample
- Integrated eye end mounting
| Capacity | 2,000 lbf / 9 kN |
| Weight | 2.80 lb / 1.27 kg |
| Material | Steel 58 HRC, nickel-plated |
| Angle | ±1.5° To adjust the angle, loosen the nuts, position the plate as desired, then tighten. |
