G1110 Puncture Fixture for ASTM D5748

Made in USA
G1110 Puncture Fixture for ASTM D5748
Click images to enlarge.
The G1110 puncture fixture is designed for determining the puncture resistance of plastic films and other materials up to 1,000 lbF (5 kN), in conformance with ASTM D5748.

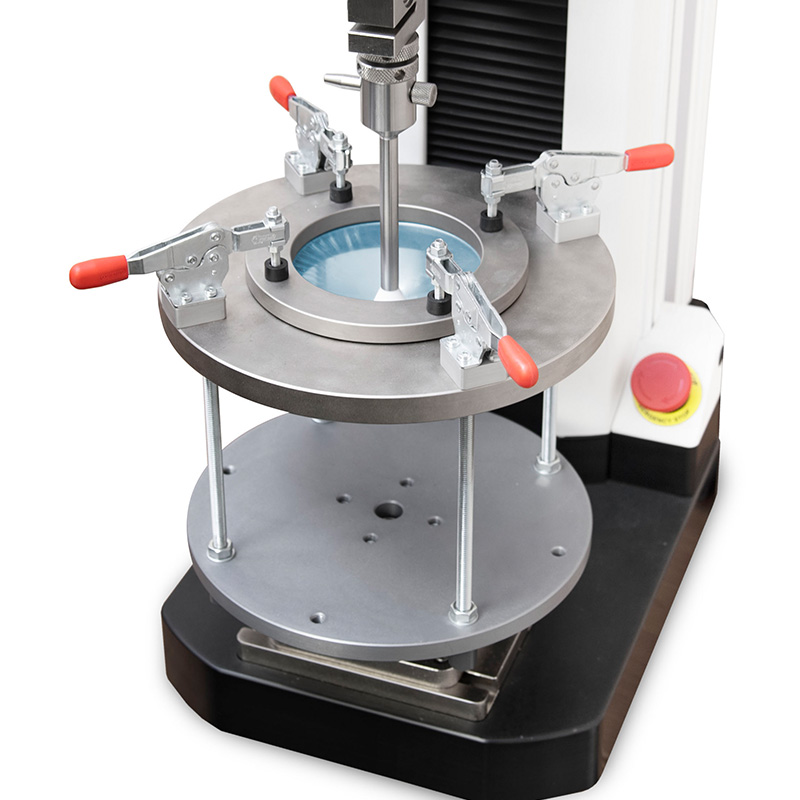

The fixture’s generous height accommodates materials with long elongation. Four toggle clamps and a compression ring with concentric ridges effectively secure the material, while the included plunger with ball probe stretches and ruptures the sample.

Includes integrated eye end mounting for both the fixture and probe. Both ends require eye end adapters to mount to M10 force gauges or force sensors.

Compatible with the ESM750 and ESM1500 motorized test stands (Sold Separately)

Features

  • Secures materials for puncture testing, as per ASTM D5748
  • Generous head room accommodates materials with long elongation
  • Includes fixture assembly, sample compression ring, puncture plunger, and (2) anchor pins
  • Compatible with Motorized Force Test Stand Models, ESM750, ESM1500, F755, F1505.

Specifications

Capacity1,000 lbF (5 kN)
MountingIncludes integrated eye end mounting for both the fixture and probe. (Eye end adapters to mount force gauge or sensor SOLD SEPARATELY
Test StandsCompatible with the ESM750 and ESM1500 motorized test stands
WeightFixture: 19.0 lb [8.6 kg]
Probe: 0.4 lb [0.2 kg]

Complete Kit

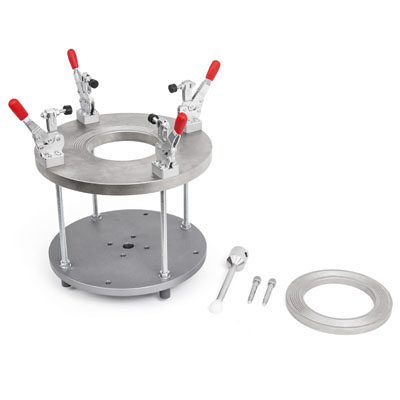

The G1110 puncture fixture is shipped as shown at left, and includes the following accessories:

(1) Fixture assembly
(1) Sample compression ring
(1) Puncture plunger
(2) Anchor pin

Related Products

ESM750 Tensile / Compression Motorized Force Test Stand
Click image for more info
High Capacity Motorized Test Stand
- Compatible with indicators and load cells, as well as force gauges
esm1500 mark-10 force test stand
Click image for more info
High Capacity Motorized Test Stand
- Compatible with indicators and load cells, as well as force gauges
M5 Digital Force Gauge
Click image for more info
Advanced Digital Force Gauge - Model M5
- High-speed 7,000 Hz peak sampling rate
- 1,000-point data memory with statistics and outputs
Click image for more info
Professional Digital Force Gauge
- High-speed 14,000 Hz sampling rate
- Individual data point memory for up to 5,000 data points, downloadable to a PC
Click image for more info
Advanced Force/Torque Indicator
- 1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs
Click image for more info
Professional Force and Torque Indicator
- Continous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC

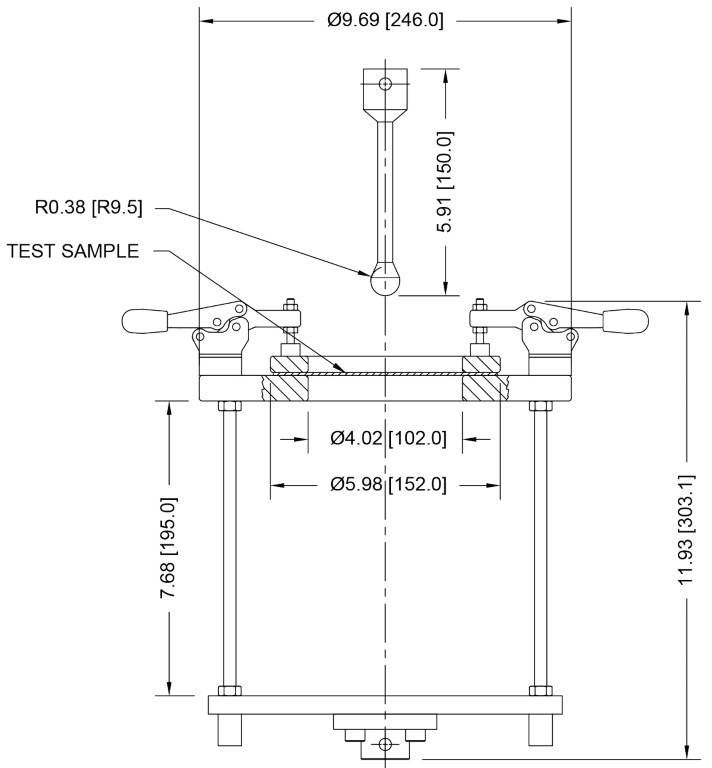

Dimensions
