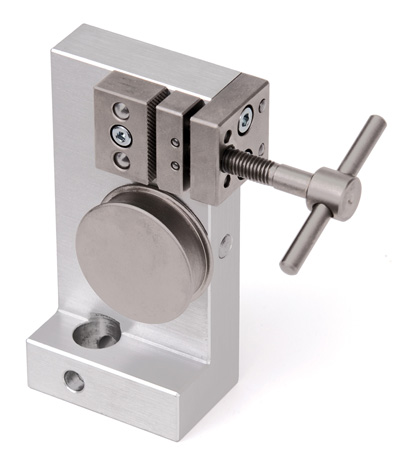

G1102 Wire / Rope Grip, Large

G1102 Wire / Rope Grip
Click images to enlarge.
Designed for wire, rope, and yarn pull testing applications. Secures the free end of the sample via a bollard and vise.

Includes integrated eye end mounting, and requires an eye end adapter to mount to force gauges or force sensors, and test stands.


Capacity1,000 lbF (5,000 N)
Weight1.8 lb (0.8 kg)

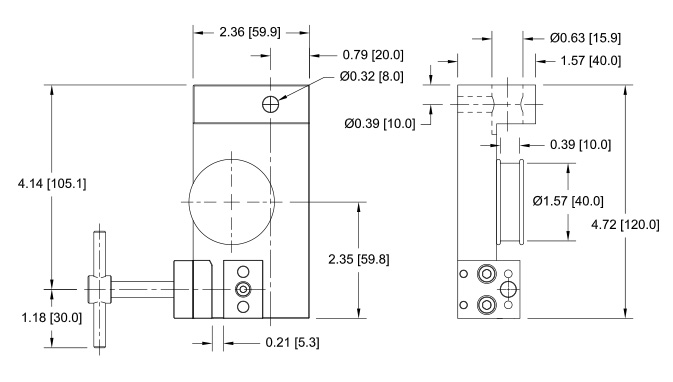

G1102 Wire / Rope Grip Dimensional Drawing

Buy Now

Item Description Price
Wire / rope grip, large, 1,000 lbF
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
